EE80L-EHMDS (1984)
Toyota Corolla Sed/Lb

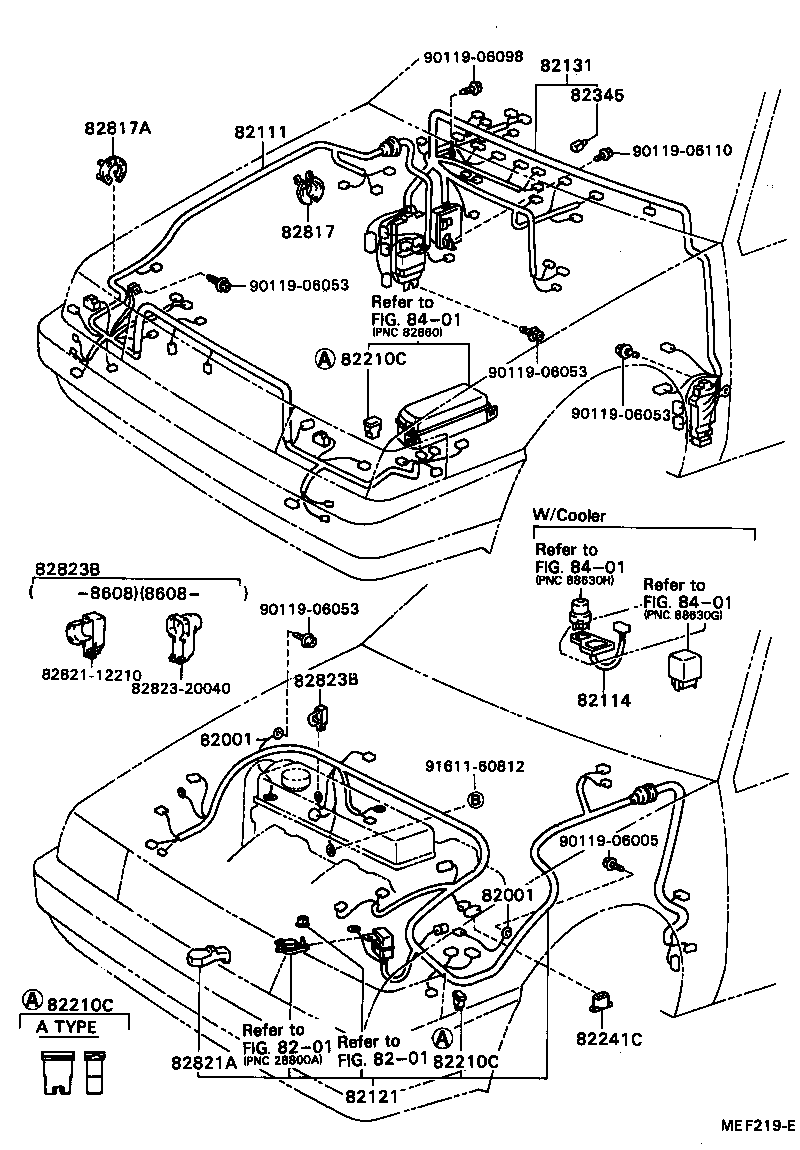

(8410- )EE80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12570 |
EE80..LHD..(GEN,SAA) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32010 |
AE8#,CE80,EE80..ARL,GEN,SA W/COOLER |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12370 |
EE80..LHD..(GEN,SAA) BATTERY:28B19L(NS40SL) |
1 | ||
| 82121-12380 |
EE80..LHD..(GEN,SAA) BATTERY:32C24L(N40L) |
1 | ||
| 82121-12680 |
EE80..LHD..(GEN,SAA) BATTERY:28B19L(NS40SL) |
1 | ||
| 82121-12681 |
EE80..LHD..(GEN,SAA) BATTERY:28B19L(NS40SL) |
1 | ||
| 82121-12690 |
EE80..LHD..(GEN,SAA) BATTERY:32C24L(N40L) |
1 | ||
| 82121-12691 |
EE80..LHD..(GEN,SAA) BATTERY:32C24L(N40L) |
1 | ||
| 82121-12692 |
EE80..LHD..(GEN,SAA) BATTERY:32C24L(N40L) |
1 | ||
| 82121-12682 |
EE80..LHD..(GEN,SAA) BATTERY:28B19L(NS40SL) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1A060 |
AE82,EE80..LHD..(GL,STD,XL)..GEN |
1 | ||
| 82131-12551 |
AE82,EE80..LHD..(GL,STD,XL)..GEN *ME |
1 | ||
| 82131-12481 |
AE8#,EE80..LHD..(DX,GL,STD,XL)..GEN |
1 | ||
| 82131-1A120 |
AE82,EE80..LHD..(GL,STD,XL)..GEN |
1 | ||
| 82131-1A120 |
AE82,EE80..LHD..(GL,STD,XL)..GEN *ME |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE |
3 | ||
| 90982-08190 |
AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE |
3 | ||
| 90982-08190 |
AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE |
3 | ||
| 90982-08190 |
AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14360 |
AE8#,CE80,EE80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE8#,CE80,EE80 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE8#,EE80 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-20040 |
EE80 |
1 | ||
| 82821-12210 |
EE80 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-20040 |
EE80 |
1 | ||
| 82821-12210 |
EE80 |
1 | ||
| Common parts | ||||
| 82821-12210 | ||||
| 82823-20040 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-06098 | ||||
| 90119-06110 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

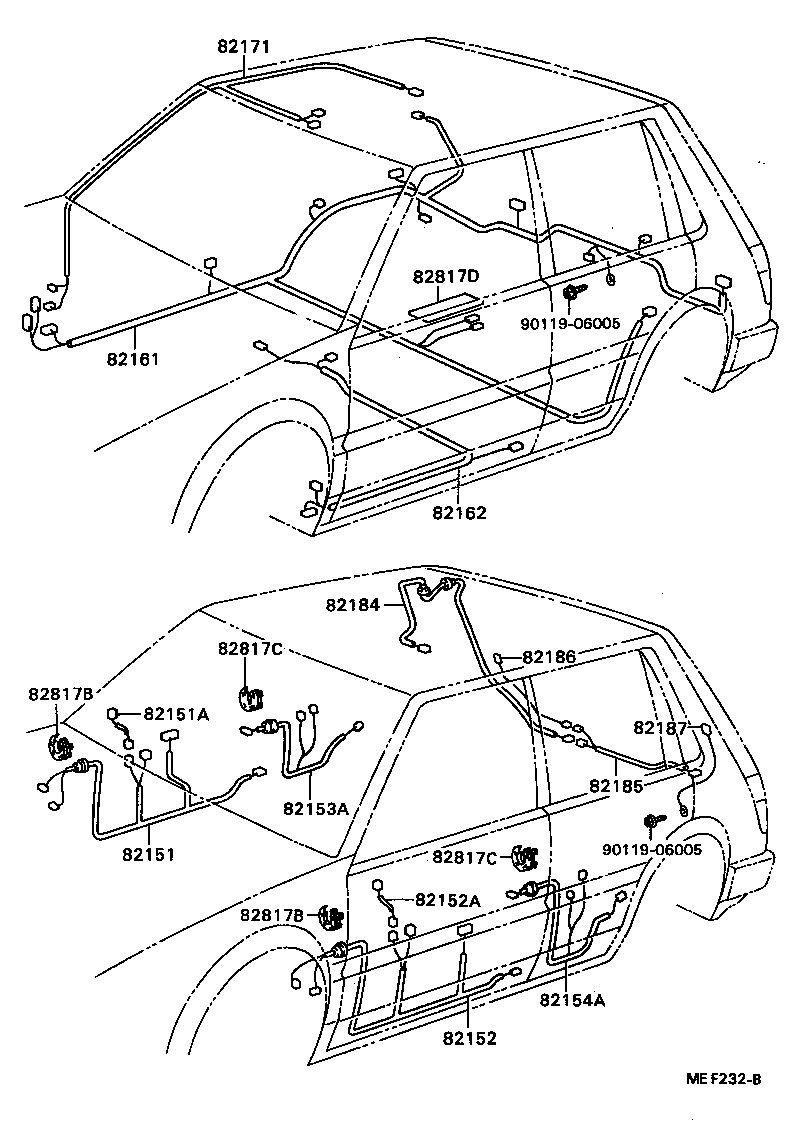

(8410- )3DS,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12111 |
AE82,EE80..5D..LHD..(GEN,SAA) |
1 | ||
| 82161-12370 |
AE80,EE80..(3DS,5DS)..LHD..GEN |
1 | ||
| 82161-12640 |
EE80..(3DS,5DS)..LHD..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12152 |
AE82,EE80..LHD..MTM..(GL,STD,XL)..GEN *ME |
1 | ||
| 82162-12131 |
AE8#,CE80,EE80..LHD..(EUR,GEN) |
1 | ||
| 82162-12430 |
AE82,CE80,EE80..LHD..(EUR,GEN) |
1 | ||
| 82162-12440 |
AE82,EE80..LHD..(GL,STD,XL)..GEN *ME |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12090 |
AE8#,CE80,EE80..5D..LHD W/SUN ROOF |
1 | ||
| 82171-12040 |
AE8#,CE80,EE80..SED..LHD |
1 | ||
| 82171-12050 |
AE82,CE80,EE80..SED..LHD..(DX,GL,GT,XL) W/SUN ROOF |
1 | ||
| 82171-12080 |
AE8#,CE80,EE80..5D..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12010 |
AE8#,EE80..5D..(GEN,SAA) |
1 | ||
| 82184-12070 |
AE8#,CE80,EE80..(3DS,5DS)..(DX,GL,STD,XL)..(EUR,GEN) |
1 | ||
| 82184-12020 |
AE8#,EE80..5D..(ARL,GEN,SA,SAA) W/RR WIPER |
1 | ||
| 82184-12080 |
AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN) W/RR WIPER |
1 | ||
| 82184-12140 |
AE82,CE80,EE80..(3DS,5DS)..(EUR,GEN) W/RR WIPER |
1 | ||
| 82184-12130 |
AE82,CE80,EE80..(3DS,5DS)..(DX,GL,STD,XL)..(EUR,GEN) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12110 |
AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82185-12020 |
AE8#,EE80..5D..(ARL,GEN,SA,SAA) W/RR WIPER |
1 | ||
| 82185-12010 |
AE8#,EE80..5D..(GEN,SAA) |
1 | ||
| 82185-12170 |
AE82,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12020 |
AE8#,CE80,EE80..5D |
1 | ||
| 82186-12080 |
AE82,CE80,EE80..5D..(EUR,GEN) |
1 | ||
| 82186-12070 |
AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82186-12090 |
AE82,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12020 |
AE8#,CE80,EE80..5D |
1 | ||
| 82187-12100 |
AE82,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82187-12060 |
AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-16100 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
