EE80L-EHHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80

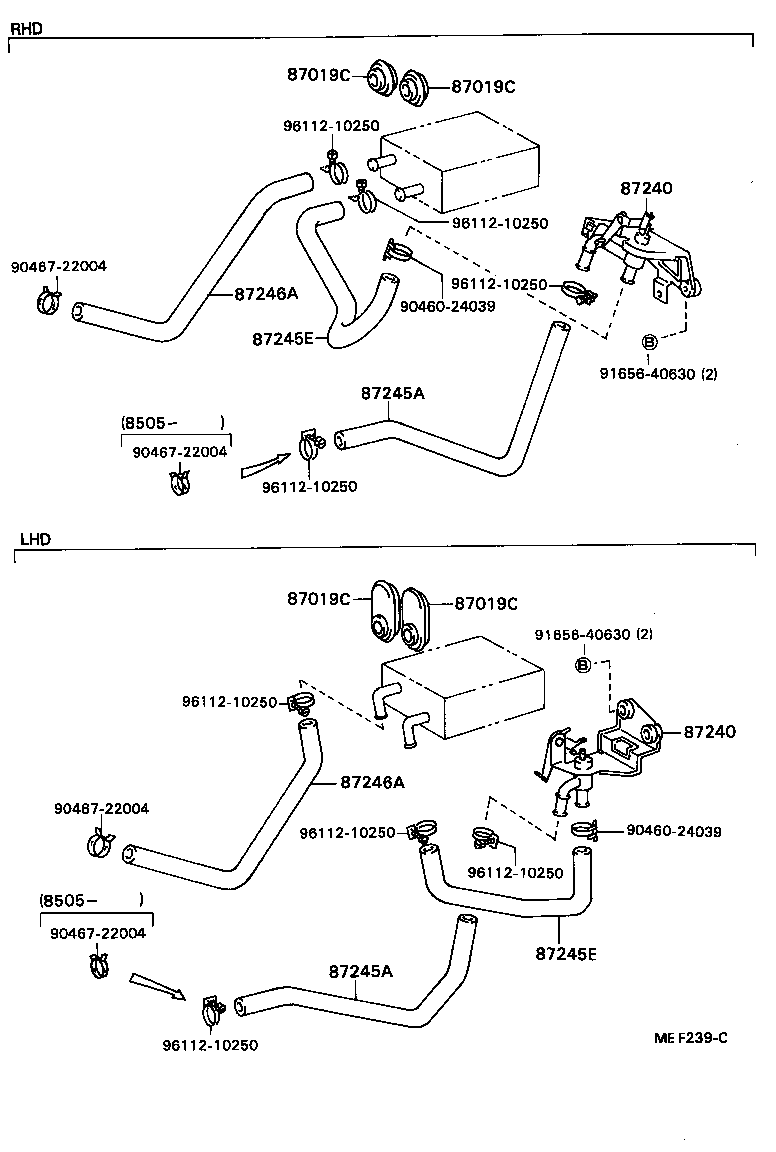

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9165640630 9165640630 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AE8#,CE80,EE80..LHD

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE8#,CE80,EE80..LHD

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE8#,CE80,EE80..LHD

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE8#,CE80,EE80..LHD

 2
87240 - VALVE ASSY, HEATER WATER
87240-12200

AE8#,CE80,EE80..LHD..(DX,GL,STD,XL)

 1
87240 - VALVE ASSY, HEATER WATER
87240-12200

AE8#,CE80,EE80..LHD..(DX,GL,STD,XL)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12680

AE8#,CE80,EE80..LHD..(DX,GL,STD,XL)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12680

AE8#,CE80,EE80..LHD..(DX,GL,STD,XL)

 1
Common parts
90460-24039
90467-22004
91656-40630
96112-10250
