EE80L-EHHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)4DS,5D ; (8505-8605)5D..ARL,SA ; (8605- )4DS..ARL,SA

Click highlighted areas on diagram

diagram 81270 81270B 81271 81275 9017905095
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80028

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN,SA)

BLACK

 1
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE8#,CE80,EE80..4DS,5D

 2
Common parts
90179-05095

(8410- )3DS,5DS

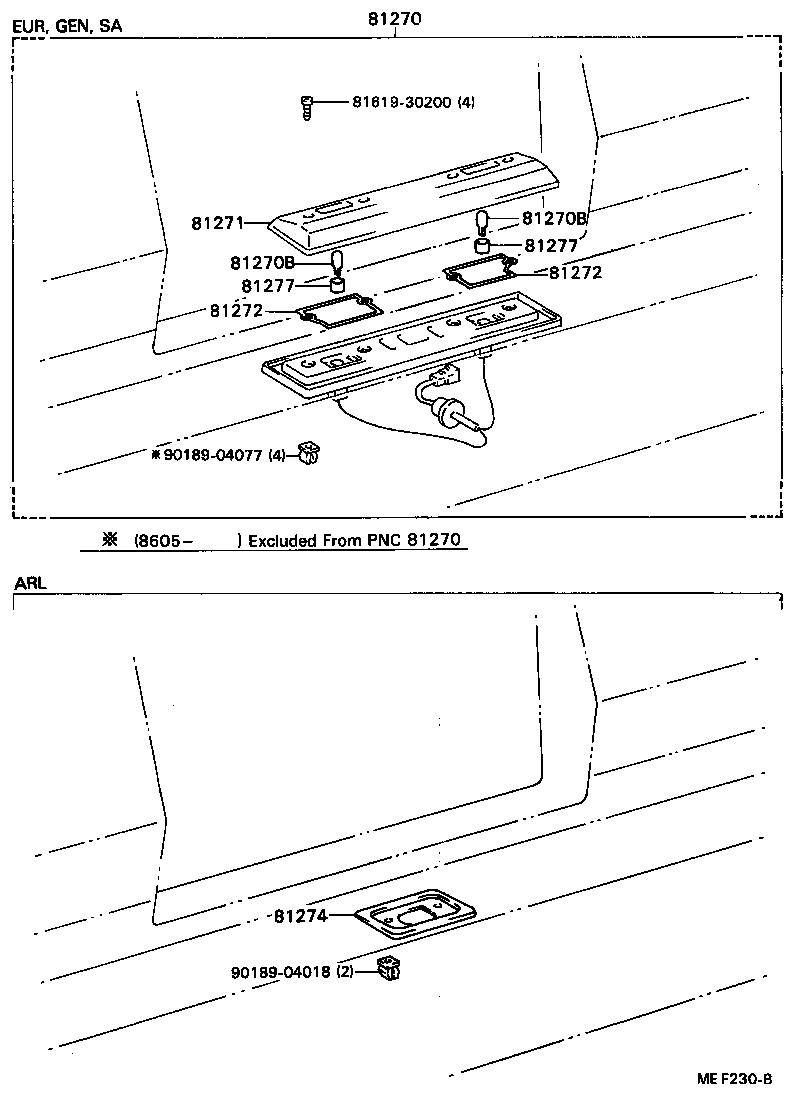

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81272 81272 81274 81277 81277 8161930200 9018904018 9018904077
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80028

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN,SA)

BLACK

 1
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
Common parts
81619-30200
90189-04018
90189-04077

(8505-8704)4DS,5D..EUR,GEN,SAA ; (8605- )5D..ARL,SA

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81272 81273 81273 81274 81275 81277 81277C 81277C 9007502002 9007502002 9016740010 9017605004 9017905095 9018904035 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80028

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN,SA)

BLACK

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80028

AE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN,SA)

BLACK

 1
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE8#,CE80,EE80..4DS,5D

 2
Common parts
90075-02002
90167-40010
90176-05004
90179-05095
90189-04035
93510-14012
