EE80L-EHHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL..3FC

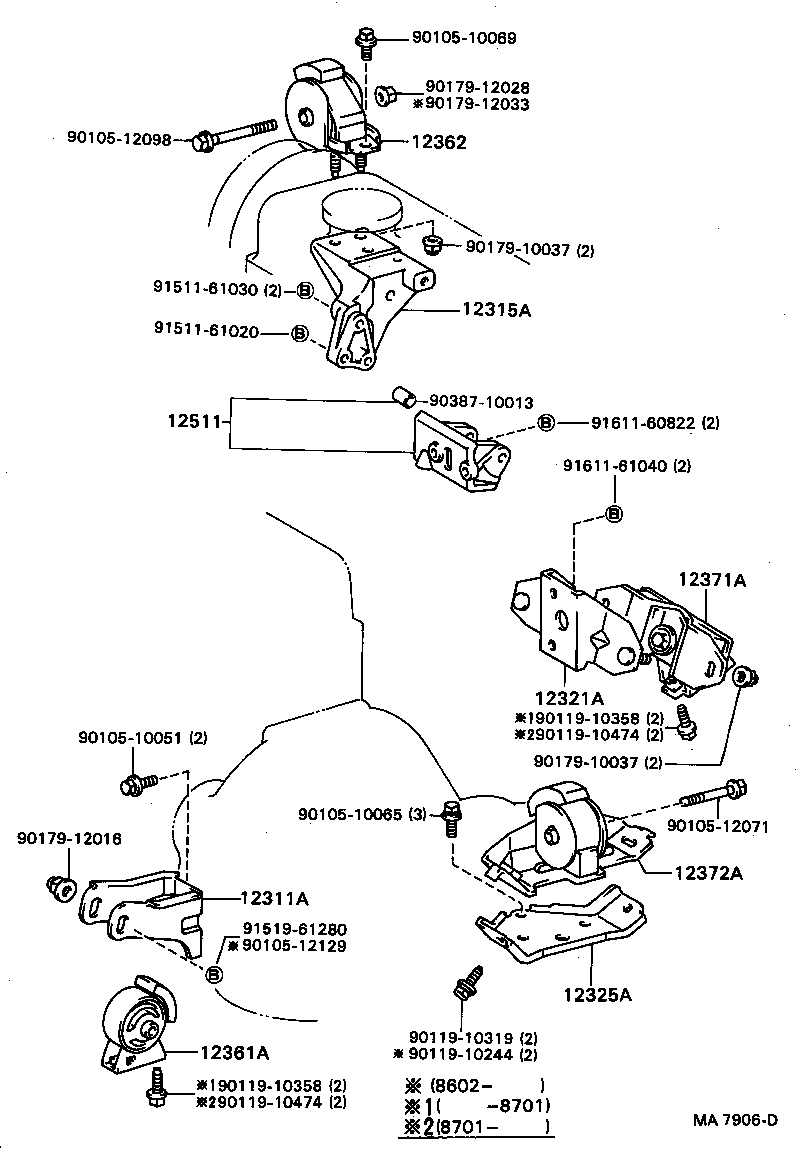

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 9010510051 9010510065 9010510069 9010512071 9010512098 9010512129 9011910244 9011910319 9011910358 9011910358 9011910474 9011910474 9017910037 9017910037 9017912016 9017912028 9017912033 9038710013 9151161020 9151161030 9151961280 9161160822 9161161040
Part # Description Qty Price
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15020

2EL..EE80..3FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15020

2EL..EE80..3FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-10070

2EL#..EE80

 1
Common parts
90105-10051
90105-10065
90105-10069
90105-12071
90105-12098
90105-12129
90119-10244
90119-10319
90119-10358
90119-10474
90179-10037
90179-12016
90179-12028
90179-12033
90387-10013
91511-61020
91511-61030
91519-61280
91611-60822
91611-61040
