EE80L-EHHDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8704)3DS,5DS..EUR

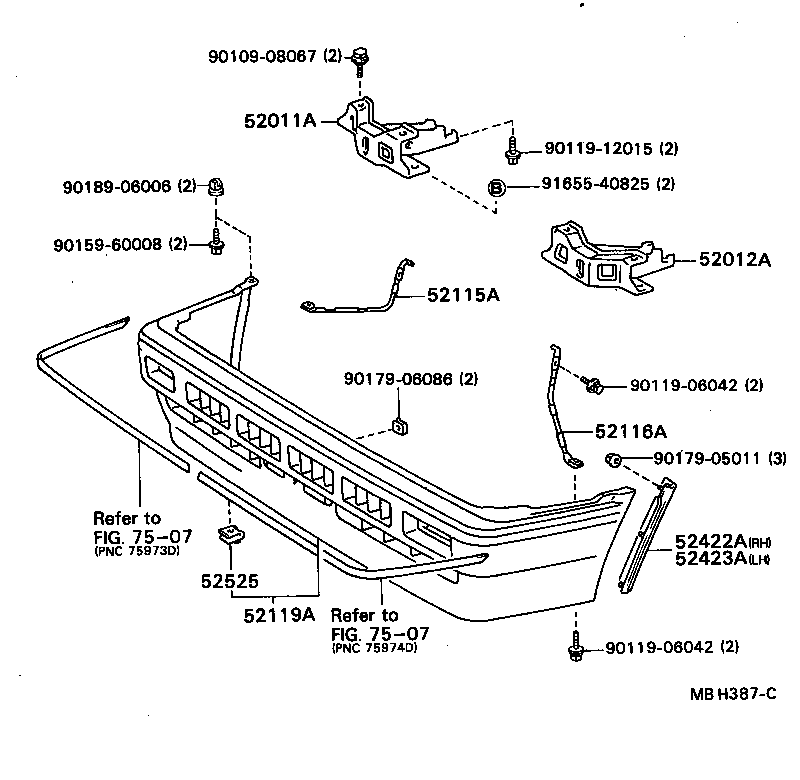

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52422A 52423A 52525 7507 7507 9010908067 9011906042 9011906042 9011912015 9015960008 9017905011 9017906086 9018906006 9165540825
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12310

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
52011-12250

AE82,CE80,EE80..(4DS,5D)..EUR

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12250

AE82,CE80,EE80..(4DS,5D)..EUR

 1
52012-12310

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12200

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
52115-12180

AE82,CE80,EE80..(4DS,5D)..EUR

 1
52115-12180

AE82,CE80,EE80..(4DS,5D)..(EUR,SAA)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12130

AE82,CE80,EE80..(3DS,5DS)..EUR

 1
52116-12150

AE82,CE80,EE80..(4DS,5D)..(EUR,SAA)

 1
52116-12150

AE82,CE80,EE80..(4DS,5D)..EUR

 1
52119A - COVER, FRONT BUMPER
52119-1221118

AE82,CE80,EE80..(4DS,5D)..(DX,GL)..EUR

W/O *HC,WHITE,WHITE

 1
52119-12902

AE82,CE80,EE80..(3DS,5DS)..LHD..EUR

W/*HC,TREATED FOR PAINTIN

 1
52119-12410

AE82,CE80,EE80..(3DS,5DS)..EUR

W/O *HC,TREATED FOR PAINTIN

 1
52119-12181

AE82,CE80,EE80..(4DS,5D)..EUR

W/O *HC,TREATED FOR PAINTIN

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52565-12040

AE8#,CE80,EE80..ARL,EUR,GEN,SA

 4
Common parts
90109-08067
90119-06042
90119-12015
90159-60008
90179-05011
90179-06086
90189-06006
91655-40825
Linked diagrams
7507
