EE80L-EHHDS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8605)2EL..GEN,SA,SAA ; (8605- )2EL..GEN,SAA

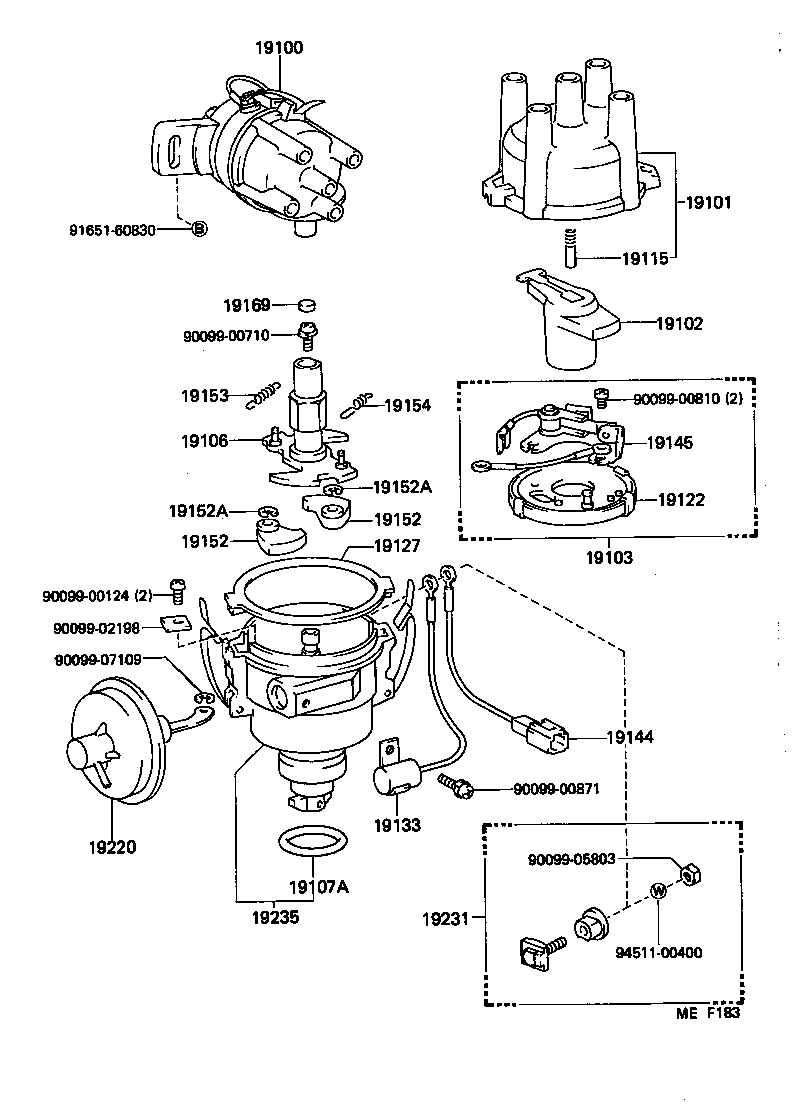

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19106 19107A 19115 19122 19127 19133 19144 19145 19152 19152 19152A 19152A 19153 19154 19169 19220 19231 19235 9009900124 9009900710 9009900810 9009900871 9009902198 9009905883 9009907109 9165160830 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-11030

2EL..EE80..GEN,SA,SAA

 1
19100-11031

2EL..EE80..GEN,SA,SAA

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-10020

2EL..EE80..GEN,SA,SAA

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

2EL..EE80..GEN,SA,SAA

 1
19102-10020

2EL..EE80..GEN,SA,SAA

 1
19102-26151

2EL..EE80..GEN,SA,SAA

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-10020

2EL..EE80..GEN,SA,SAA

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-11020

2EL..EE80..GEN,SA,SAA

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-10020

2EL..EE80..GEN,SA,SAA

 1
19127 - PACKING, DUST PROOF
19127-15010

2EL..EE80..GEN,SA,SAA

 1
19127-11010

2EL#..EE80

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52059

2EL..EE80..GEN,SA,SAA

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-10030

2EL..EE80..GEN,SA,SAA

 1
19145 - POINT, DISTRIBUTOR
19145-10020

2EL..EE80..GEN,SA,SAA

 1
19153 - SPRING, GOVERNOR, A
19153-11021

2EL..EE80..GEN,SA,SAA

 1
19154 - SPRING, GOVERNOR, B
19154-11021

2EL..EE80..GEN,SA,SAA

 1
19169 - STOPPER, CAM GREASE
19169-32010

2EL..EE80..GEN,SA,SAA

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-10030

2EL..EE80..GEN,SA,SAA

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

2EL..EE80..GEN,SA,SAA

 1
19235 - HOUSING, DISTRIBUTOR
19235-10021

2EL..EE80..GEN,SA,SAA

 1
19235-10020

2EL..EE80..GEN,SA,SAA

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-02198
90099-05883
90099-07109
91651-60830
94511-00400
