EE80L-EGMDSW (1984)
Toyota Corolla Sed/Lb
Production
Oct 1984
-
Apr 1987
Engine
2EL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )2EL#..EUR ; (8605- )2EL..SA

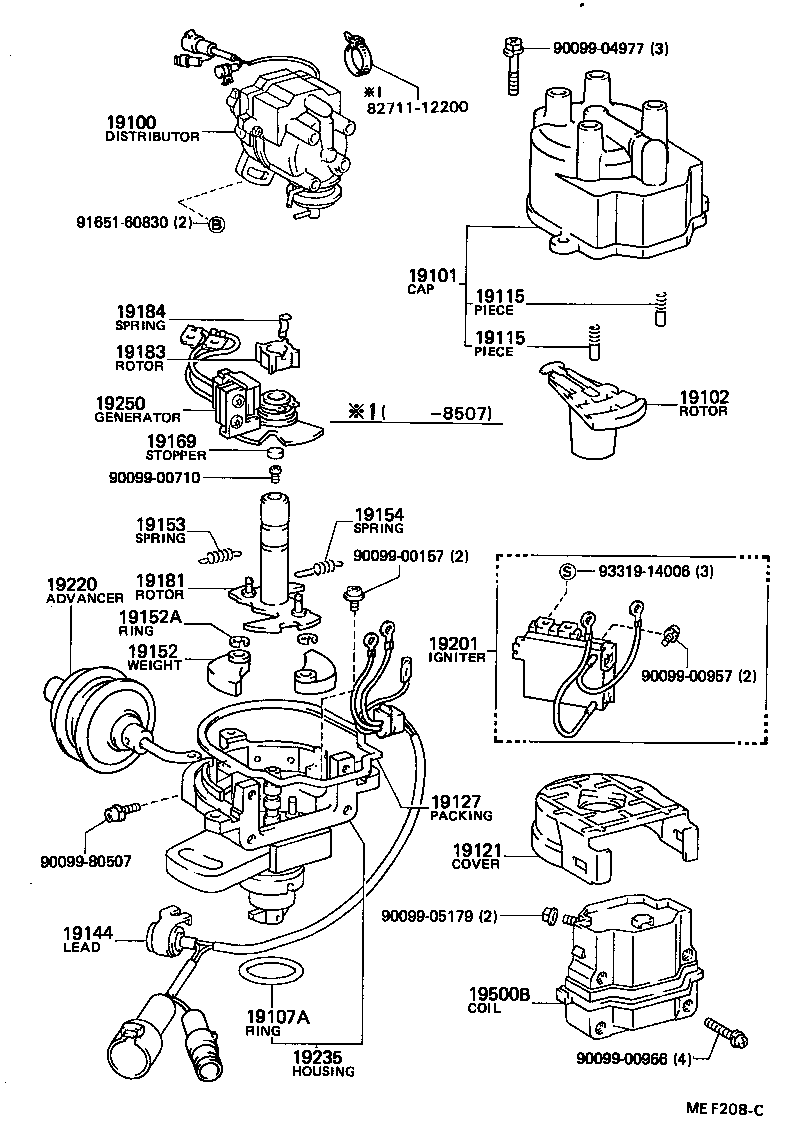

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-11030 |
2EL..EE80..EUG |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-11010 |
2EL#..EE80..EUR |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11050 |
2EL#..EE80..EUR |
1 | ||
| 19102-11030 |
2EL#..EE80..EUR |
1 | ||
| 19102-11031 |
2EL#..EE80..EUR |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2EL#..EE80..EUR |
2 | ||
| 19115-71010 |
2EL#..EE80..EUR |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2EL#..EE80..EUR |
2 | ||
| 19115-71010 |
2EL#..EE80..EUR |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
2EL#..EE80..EUR |
1 | ||
| 19121-11080 |
2EL#..EE80..EUR |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
2EL#..EE80 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-11030 |
2EL#..EE80..EUR |
1 | ||
| 19144-11030 |
2EL#..EE80..EUG,SDZ |
1 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-11030 |
2EL#..EE80..EUR |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-11030 |
2EL#..EE80..EUR |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
2EL#..EE80..EUR |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-11030 |
2EL..EE80..EUG |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
2ELC..EE80..SDZ;2EL..EE80..EUR,SA |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
2EL#..EE80..EUR,SA |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-11030 |
2EL..EE80..EUG |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-11010 |
2EL#..EE80..EUR |
1 | ||
| 19235-11010 |
2EL#..EE80..EUG,SDZ |
1 | ||
| 19235-11080 |
2EL#..EE80..EUG,SDZ |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 91651-60830 | ||||
| 93319-14006 | ||||
