EE80L-EGMDCG (1986)

Toyota Corolla Sed/Lb

Production May 1986 - Apr 1987
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )2ELC..FRG

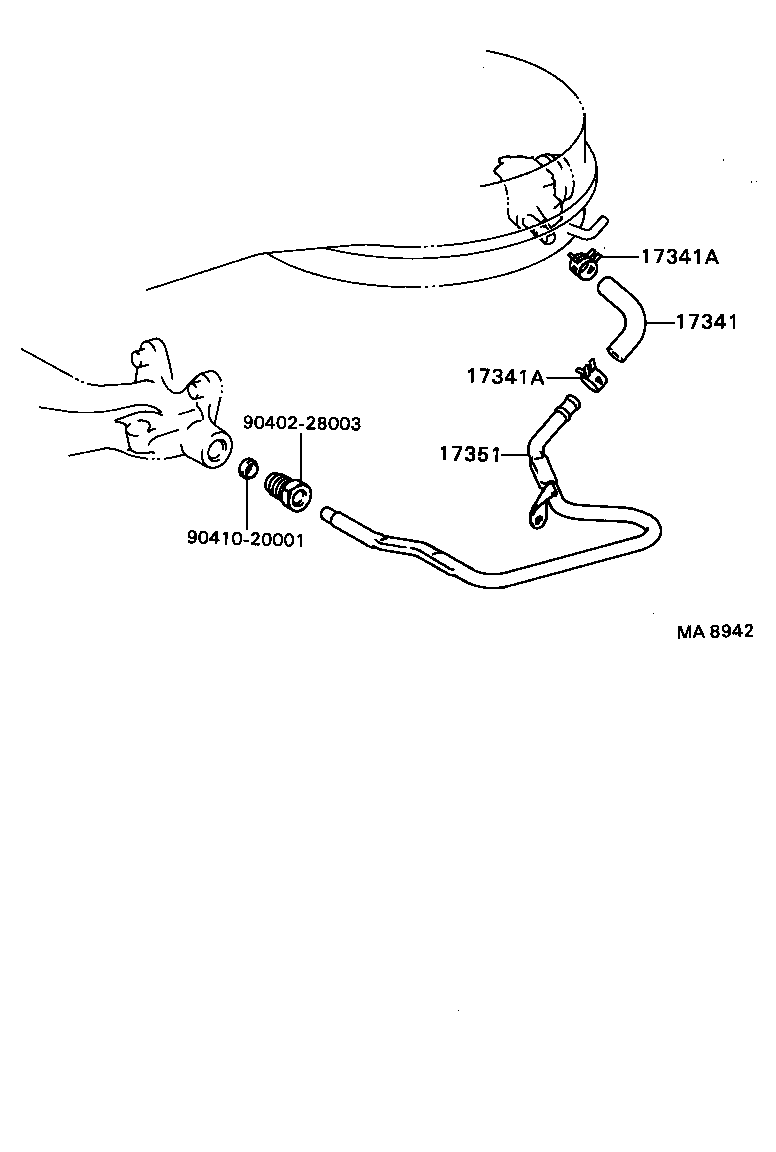

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17351 9040228003 9041020001
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-11010

2ELC..EE80..FRG

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26002

2ELC..EE80..FRG

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26002

2ELC..EE80..FRG

 2
17351 - MANIFOLD, AIR INJECTION
17306-11040

2ELC..EE80..FRG

 1
Common parts
90402-28003
90410-20001
