EE80L-EGKRS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

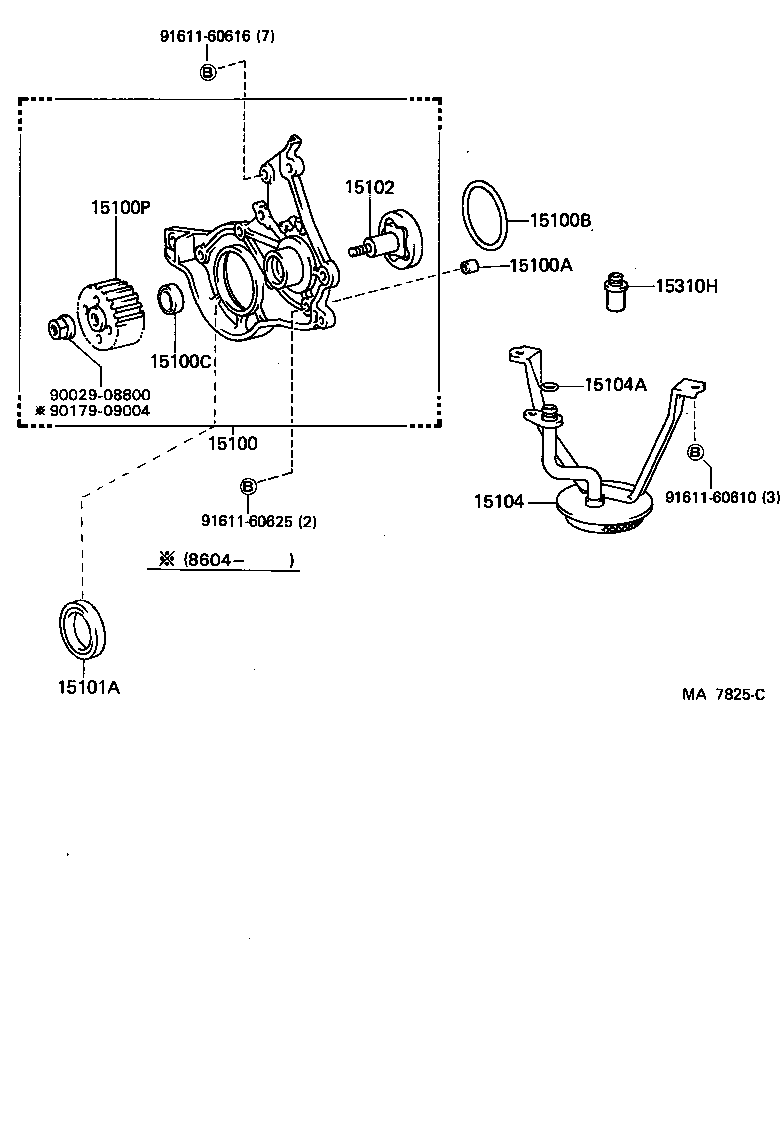

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100P 15101A 15102 15104 15104A 15310H 9002908800 9017909004 9161160610 9161160616 9161160625
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-10020

2EL#..EE80

 1
15100-10010

2EL..EE80

 1
15100C - SEAL(FOR OIL PUMP)
90029-21005

2EL#..EE80

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-10010

2EL#..EE80

 1
15102 - ROTOR SET, OIL PUMP
15102-10012

2EL#..EE80

 1
15104 - STRAINER SUB-ASSY, OIL
15104-10010

2EL..EE80

 1
Common parts
90029-08800
90179-09004
91611-60610
91611-60616
91611-60625
