EE80L-EEMDSW (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EE80..MTM

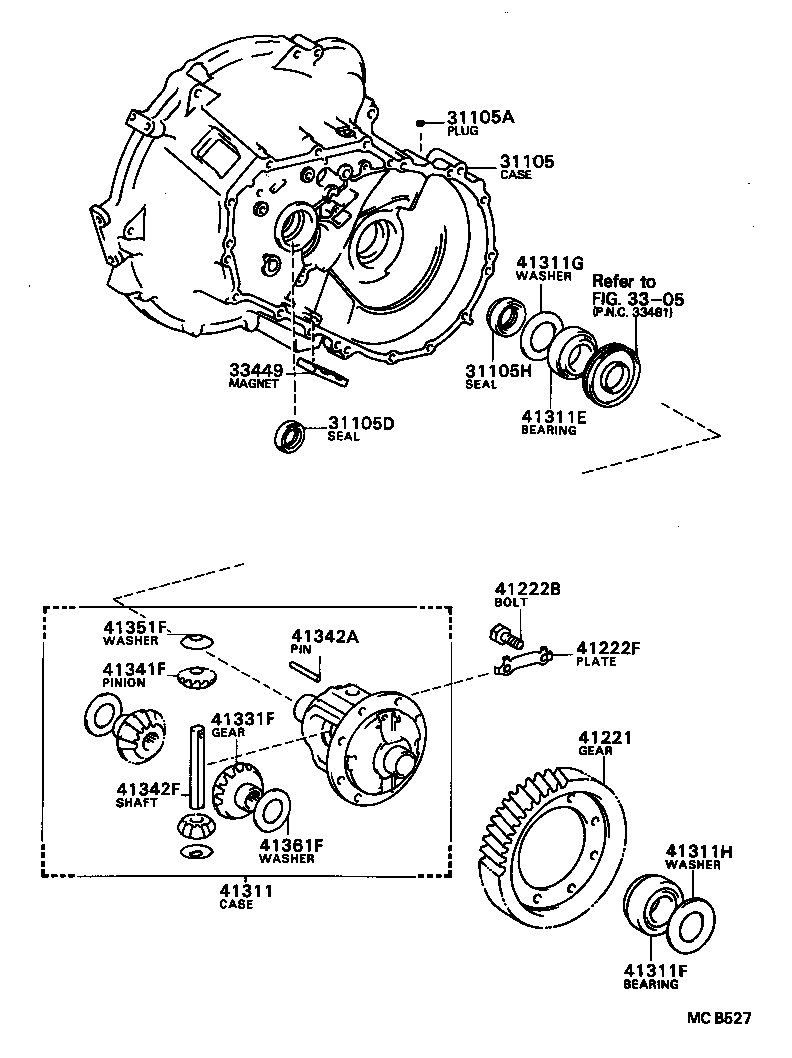

Click highlighted areas on diagram

diagram 31105 31105A 31105D 31105H 3305 33449 41221 41222B 41222F 41311 41311E 41311F 41311G 41311H 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31115-10010

EE80..MTM

 1
31115-10011

EE80..MTM

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

AE8#,EE80..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25011

AE8#,EE80..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34007

AE8#,EE80..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-12010

AE8#,EE80..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41211-17010

EE80..5F

INDONESIA SPEC

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AE8#,EE80

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12040

AE8#,EE80..MTM

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-12040

AE8#,EE80..MTM

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-38006

AE8#,EE80

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

AE8#,EE80..4F,4FC,5F

 1
41341F - PINION, FRONT DIFFERENTIAL
41341-22020

AE8#,EE80

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AE8#,CE80,EE80

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12020

AE8#,EE80

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AE8#,EE80

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

AE8#,CE80,EE80

T=1.20,MARK 04,T=1.2

 2
41361-22140

AE8#,CE80,EE80

T=0.95,MARK 14,T=0.95

 2
41361-22020

AE8#,CE80,EE80

T=1.00,MARK 02,T=1.0

 2
41361-22160

AE8#,CE80,EE80

T=1.15,MARK 16,T=1.15

 2
41361-22150

AE8#,CE80,EE80

T=1.05,MARK 15,T=1.05

 2
41361-22030

AE8#,CE80,EE80

T=1.10,MARK 03,T=1.1

 2
Linked diagrams
3305
