EE80L-EEMDSW (1984)
Toyota Corolla Sed/Lb
Production
Oct 1984
-
Apr 1987
Engine
2EL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

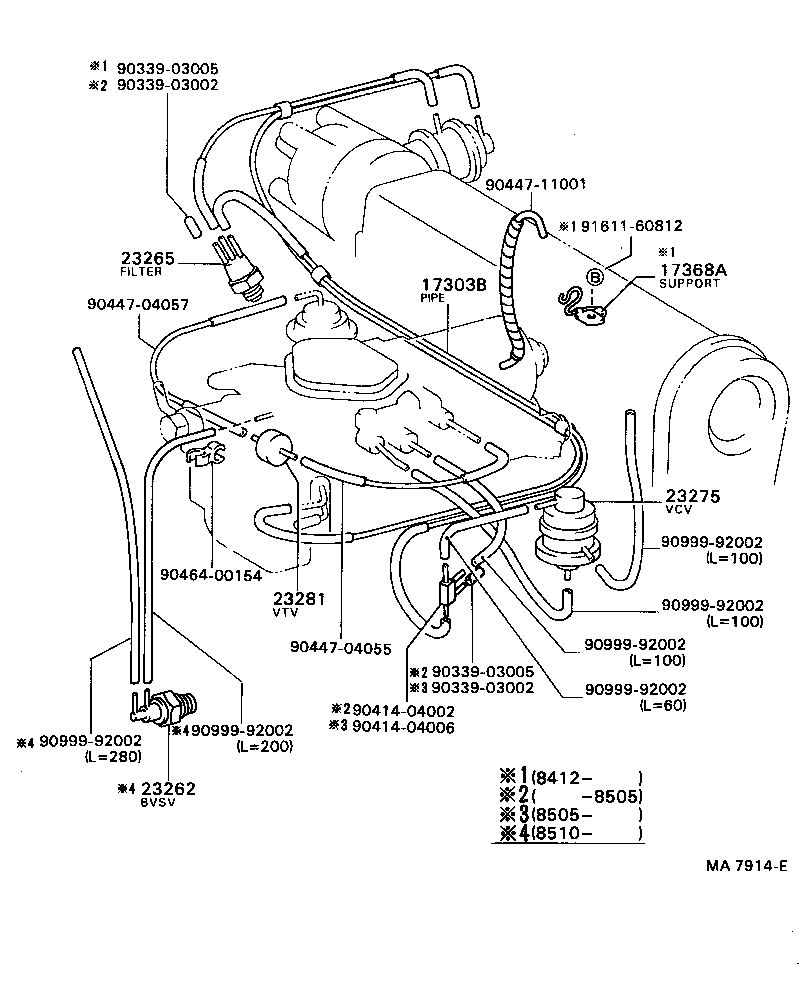

(8410-8505)2EL..EUG ; (8505-8605)2EL..MTM..EUG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11050 |
2EL..EE80..EUG |
1 | ||
| 17303-11051 |
2EL..EE80..EUG |
1 | ||
| 17368A - SUPPORT, AIR TUBE | ||||
| 17368-11010 |
2EL..EE80..EUG |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05076 |
2EL..EE80..MTM..EUG NO.1 |
1 | ||
| 90925-05035 |
2EL..EE80..EUG NO.2 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2EL..EE80..MTM..EUG NO.2 |
1 | ||
| 90925-03155 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2EL..EE80..EUR,SAA |
1 | ||
| 90925-01041 |
2EL..EE80..EUR,SAA |
1 | ||
| 90925-01014 |
2EL..EE80..EUG |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 90414-04002 | ||||
| 90414-04006 | ||||
| 90447-04055 | ||||
| 90447-04057 | ||||
| 90447-11001 | ||||
| 90464-00154 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||

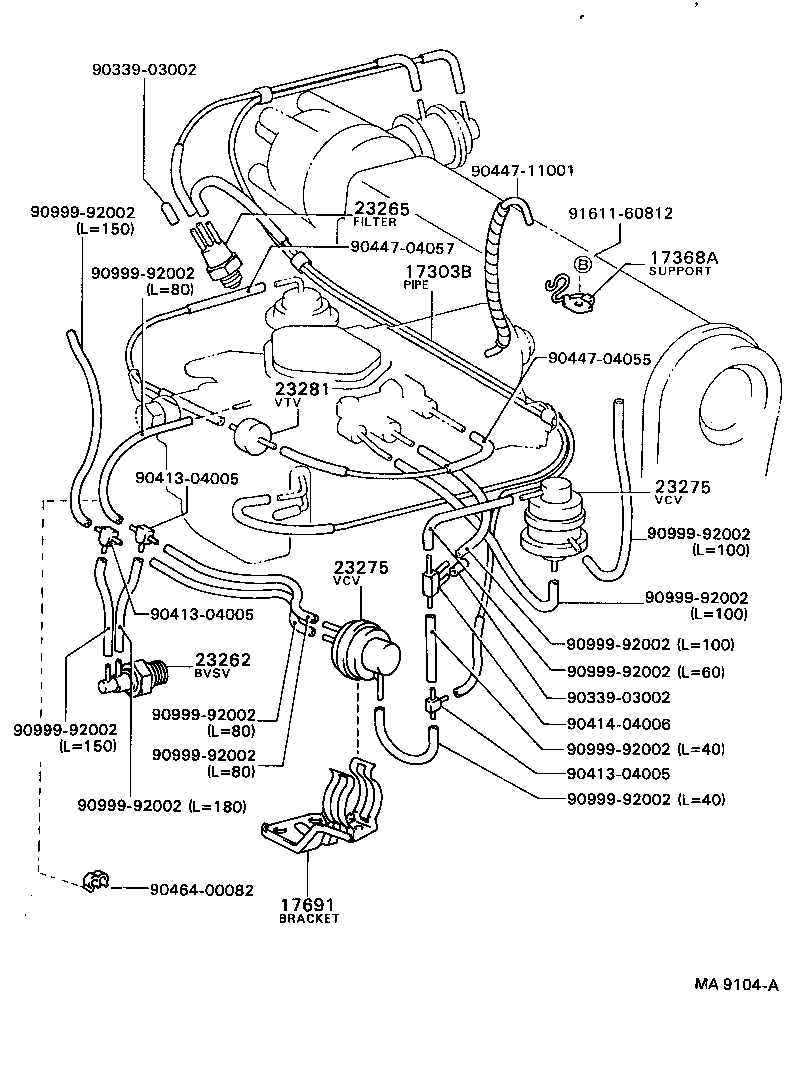

(8605- )2EL..MTM..EUG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11050 |
2EL..EE80..EUG |
1 | ||
| 17303-11051 |
2EL..EE80..EUG |
1 | ||
| 17368A - SUPPORT, AIR TUBE | ||||
| 17368-11010 |
2EL..EE80..EUG |
1 | ||
| 17691 - BRACKET, VACUUM CONTROL VALVE, NO.1 | ||||
| 17691-11020 |
2EL..EE80..MTM..EUG |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05076 |
2EL..EE80..MTM..EUG NO.1 |
1 | ||
| 90925-05035 |
2EL..EE80..EUG NO.2 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2EL..EE80..MTM..EUG NO.2 |
1 | ||
| 90925-03155 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03175 |
2EL..EE80..MTM..EUG NO.2 |
1 | ||
| 90925-03155 |
2EL#..EE80..EUR NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
2EL..EE80..EUR,SAA |
1 | ||
| 90925-01041 |
2EL..EE80..EUR,SAA |
1 | ||
| 90925-01014 |
2EL..EE80..EUG |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90414-04006 | ||||
| 90447-04055 | ||||
| 90447-04057 | ||||
| 90447-11001 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
