Toyota Corolla sed/lb EE80 VACUUM PIPING

EE80L-EEMDCG (1986)

Toyota Corolla Sed/Lb

Production May 1986 - Apr 1987

Engine 2ELC

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

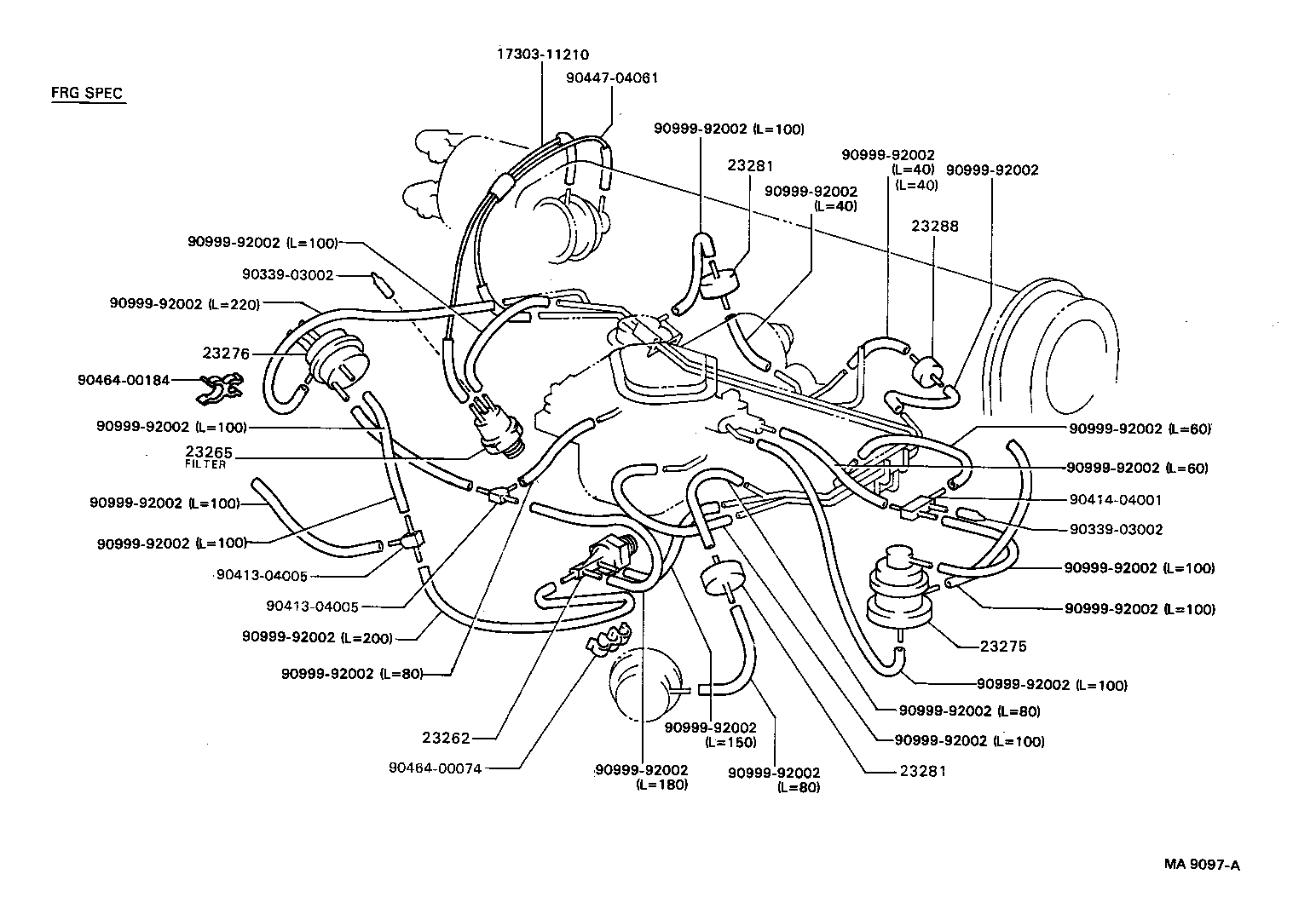

(8605- )2ELC

Click highlighted areas on diagram

(8605- )FRG SPEC

Part #	Description	Period	Qty
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11020	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05076	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05077	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-05035	2ELC..EE80 FRG SPEC	03/1987 - 04/1987	1
90925-05051	2ELC..EE80 NO.1	08/1986 - 04/1987	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03174	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-03175	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	2EL..EE80..EUR,SAA	10/1986 - 12/1986	1
90925-01029	2ELC..EE80 NO.2	10/1986 - 04/1987	1
90925-01014	2ELC..EE80 FRG SPEC,NO.2	03/1987 - 04/1987	1
90925-01029	2ELC..EE80 FRG SPEC,NO.1	05/1986 - 04/1987	1
90925-01041	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	2EL..EE80..EUR,SAA	10/1986 - 12/1986	1
90925-01029	2ELC..EE80 NO.2	10/1986 - 04/1987	1
90925-01014	2ELC..EE80 FRG SPEC,NO.2	03/1987 - 04/1987	1
90925-01029	2ELC..EE80 FRG SPEC,NO.1	05/1986 - 04/1987	1
90925-01041	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
23288 - JET, NO.1
90925-04017	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
Common parts
17303-11210
90339-03002
90413-04005
90414-04001
90447-04061
90464-00074
90464-00184
90999-92002

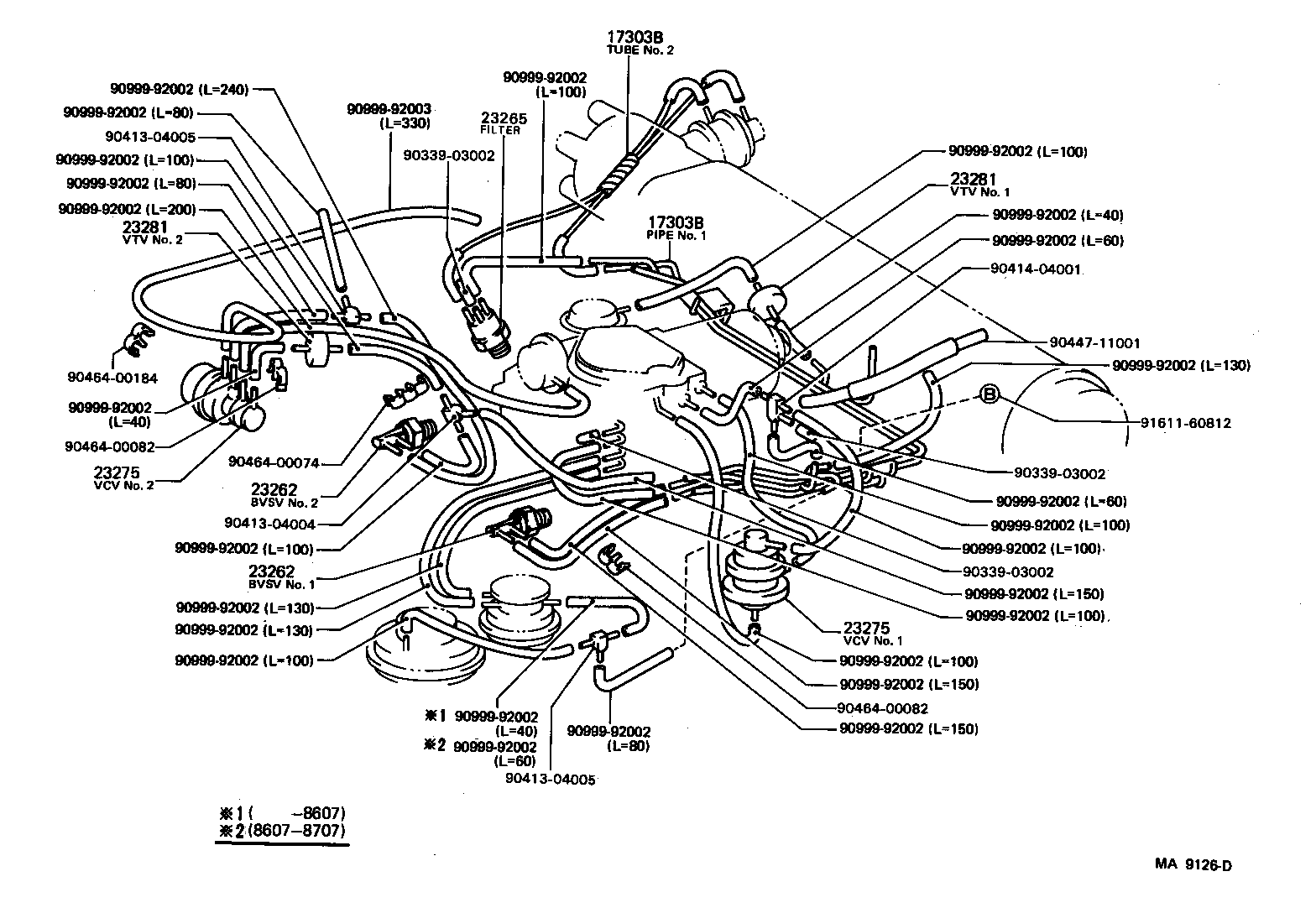

(8605- )2ELC..FRG

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11220	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
17303-11210	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11220	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
17303-11210	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11020	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05076	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05077	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-05035	2ELC..EE80 FRG SPEC	03/1987 - 04/1987	1
90925-05051	2ELC..EE80 NO.1	08/1986 - 04/1987	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11020	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05076	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
90925-05077	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-05035	2ELC..EE80 FRG SPEC	03/1987 - 04/1987	1
90925-05051	2ELC..EE80 NO.1	08/1986 - 04/1987	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03174	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-03175	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03174	2ELC..EE80..FRG NO.2	05/1986 - 04/1987	1
90925-03175	2ELC..EE80 FRG SPEC	05/1986 - 04/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	2EL..EE80..EUR,SAA	10/1986 - 12/1986	1
90925-01029	2ELC..EE80 NO.2	10/1986 - 04/1987	1
90925-01014	2ELC..EE80 FRG SPEC,NO.2	03/1987 - 04/1987	1
90925-01029	2ELC..EE80 FRG SPEC,NO.1	05/1986 - 04/1987	1
90925-01041	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	2EL..EE80..EUR,SAA	10/1986 - 12/1986	1
90925-01029	2ELC..EE80 NO.2	10/1986 - 04/1987	1
90925-01014	2ELC..EE80 FRG SPEC,NO.2	03/1987 - 04/1987	1
90925-01029	2ELC..EE80 FRG SPEC,NO.1	05/1986 - 04/1987	1
90925-01041	2ELC..EE80..FRG NO.1	05/1986 - 04/1987	1
Common parts
90339-03002
90413-04004
90413-04005
90414-04001
90447-11001
90464-00074
90464-00082
90464-00184
90999-92002
90999-92003
91611-60812

EE80L-EEMDCG (1986)

(8605- )2ELC

(8605- )2ELC..FRG
