EE80L-EEKDSV (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Jul 1987
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)4DS,5D ; (8505-8605)5D..ARL,SA ; (8605- )4DS..ARL,SA

Click highlighted areas on diagram

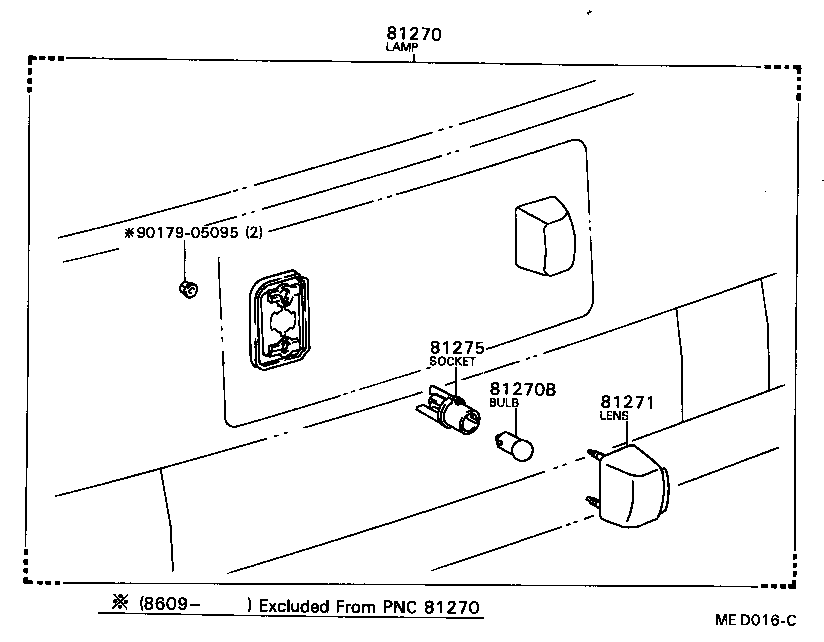

diagram 81270 81270B 81271 81275 9017905095
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80010

AE82,EE80..4DS..SA

 1
81270-80010

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81690-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81270-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE8#,EE80..(4DS,5D)..(ARL,SA)

12V 10W,12V 10W

 2
90981-12013

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

12V 10W,12V 10W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81691-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81271-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81271-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE8#,CE80,EE80..4DS,5D

 2
81275-12240

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81275-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
Common parts
90179-05095

(8505-8704)4DS,5D..EUR,GEN,SAA ; (8605- )5D..ARL,SA

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81272 81273 81273 81274 81275 81277 81277C 81277C 9007502002 9007502002 9016740010 9017605004 9017905095 9018904035 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80010

AE82,EE80..4DS..SA

 1
81270-80010

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81690-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81270-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-80010

AE8#,CE80,EE80..4DS,5D

 2
81270-80010

AE82,EE80..4DS..SA

 1
81270-80010

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81690-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81270-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE8#,EE80..(4DS,5D)..(ARL,SA)

12V 10W,12V 10W

 2
90981-12013

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

12V 10W,12V 10W

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE8#,EE80..(4DS,5D)..(ARL,SA)

12V 10W,12V 10W

 2
90981-12013

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

12V 10W,12V 10W

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE8#,EE80..(4DS,5D)..(ARL,SA)

12V 10W,12V 10W

 2
90981-12013

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

12V 10W,12V 10W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81691-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81271-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81271-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81691-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81271-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81271-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81271 - LENS, LICENSE PLATE LAMP
81271-12240

AE8#,CE80,EE80..4DS,5D

 2
81691-12080

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

LH

 1
81271-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

RH

 1
81271-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-12300

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE8#,CE80,EE80..4DS,5D

 2
81275-12240

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 2
81275-12240

AE8#,EE80..(4DS,5D)..(ARL,SA)

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-20240

AE82,CE80,EE80..4DS..(EUR,GEN,SAA)

 4
Common parts
90075-02002
90167-40010
90176-05004
90179-05095
90189-04035
93510-14012
