EE80L-EEHNS (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)4DS,5D,5DS ; (8305-8505)4DS,5D,5DS ;(8505-8605)ARL,SA ; (8505-8605)ARL,

Click highlighted areas on diagram

diagram 67603 67603 67603 67603A 67603A 67603A 67603B 67603B 67604 67604 67604 67785B 67785B 67786B 67786B 68190 68190 68190 68190A 68190A 68190A
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67630-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67630-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67630-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67630-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67630-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67630-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67630-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67630-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67630-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67630-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67630-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67630-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67630-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67630-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67630-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80..4DS,5D,5DS

 26
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80..4DS,5D,5DS

 26
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12010

AE8#,CE80,EE80..4DS,5D,5DS

 26
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 4
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
67774-10010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 4

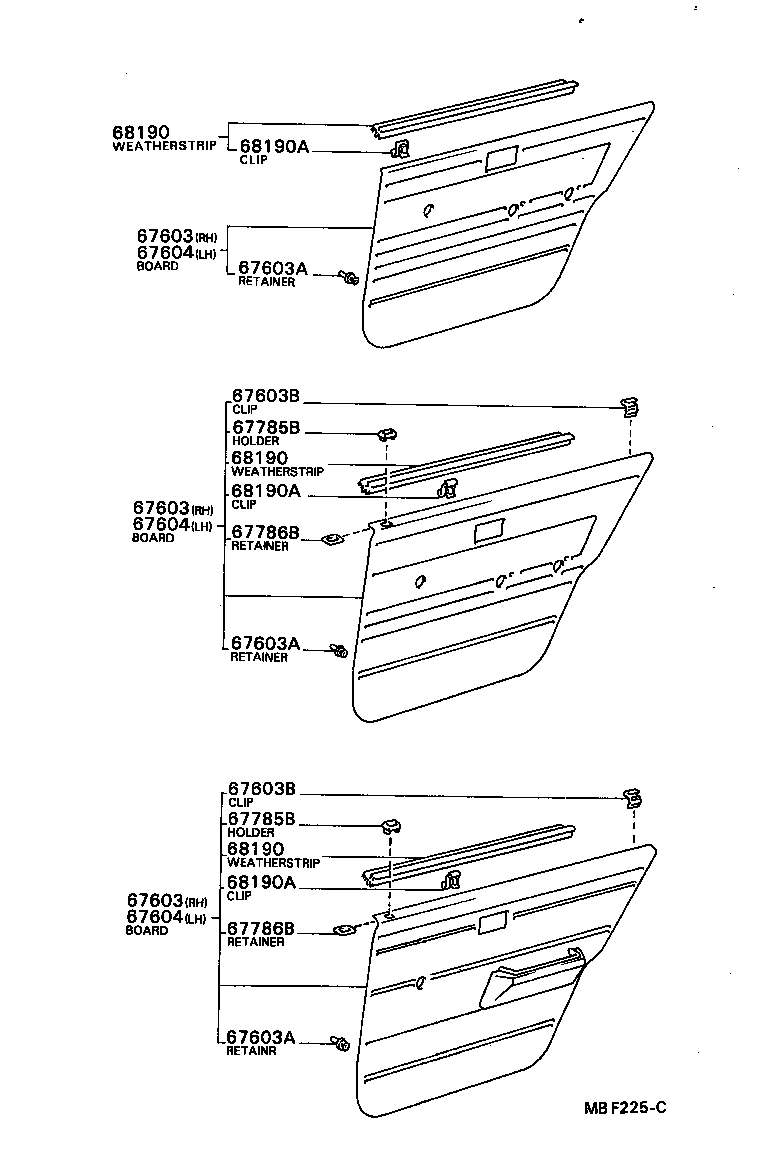

67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67640-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67640-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67640-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67640-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67640-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67640-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67640-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67640-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67640-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67640-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1260003

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

GRAY,GRAY,TRIM1#

 1
67640-1260006

AE8#,EE80..(4DS,5D,5DS)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BROWN,BROWN,TRIM4#

 1
67640-1260004

AE8#,EE80..(4DS,5D)..(CS,CSX,GL)..(ARL,EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
67640-1260103

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
67640-1260106

AE82,EE80..(4DS,5D,5DS)..GL..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
67640-1260104

AE82,EE80..(4DS,5D)..GL..(EUR,GEN)

BLUE,BLUE,TRIM8#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK

 2
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-1201001

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

BLACK,BLACK

 2
69751-2006006

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

BROWN,SEPIA BROWN,TRIM4#

 2
69751-2006004

AE82,CE80,EE80..(4DS,5D)..(DX,GL,XL)..(EUR,GEN,SAA)

BLUE,BLUE,TRIM8#

 2
69751-2006003

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

GRAY,SHADOW GRAY,TRIM1#

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67786-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(CS,CSX,DX,GL,GT,S,XL)

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68173-12060

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68174-12020

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68173-12060

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68174-12020

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-12040

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

RH

 1
68173-12060

AE82,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)..(EUR,GEN,SAA)

 2
68174-12020

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

LH

 1
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 10
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 10
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
67773-12010

AE8#,CE80,EE80..(4DS,5D,5DS)..(DX,GL,GT,XL)

 10

(8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8505-8605)4DS,5D,5DS..EUR,GEN,SAA ; (8605-

Click highlighted areas on diagram

diagram 67603 67603 67603 67603A 67603A 67603A 67604 67604 67604 67785B 67785B 68190 68190 68190 68190A 8401
Part # Description Qty Price

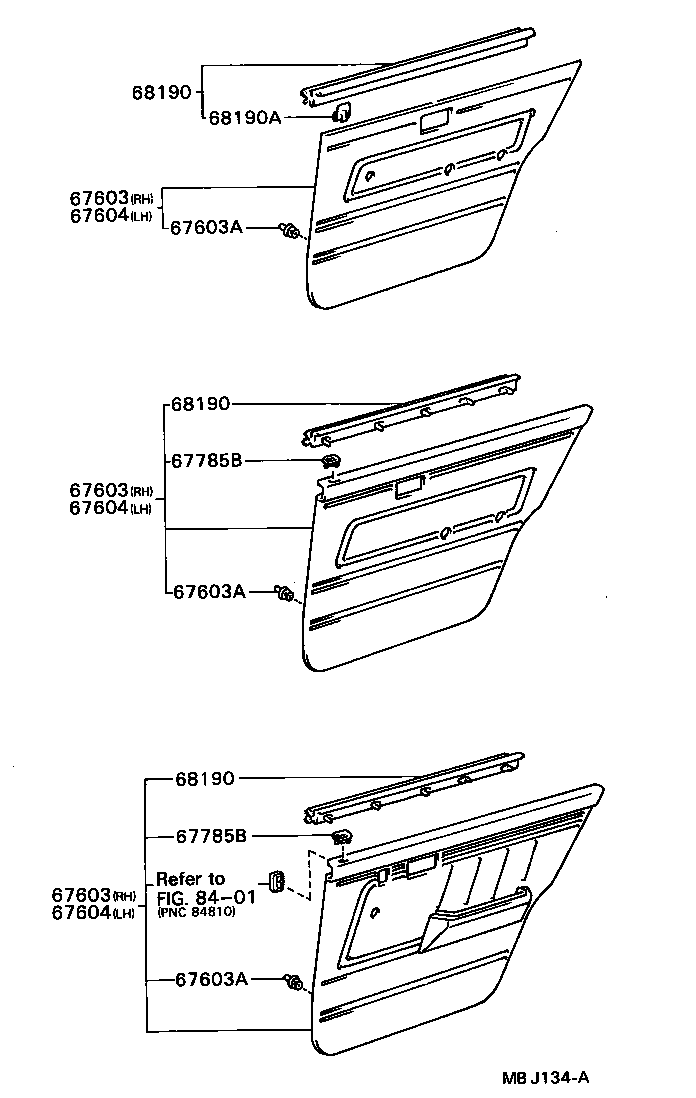

67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
