Toyota Corolla sed/lb EE80 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
COROLLA SED/LB
EE80L-EEHDSV (1984)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EE80L-EEHDSV (1984)

Toyota Corolla Sed/Lb

Production Aug 1984 - Jul 1987

Engine 2EL

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

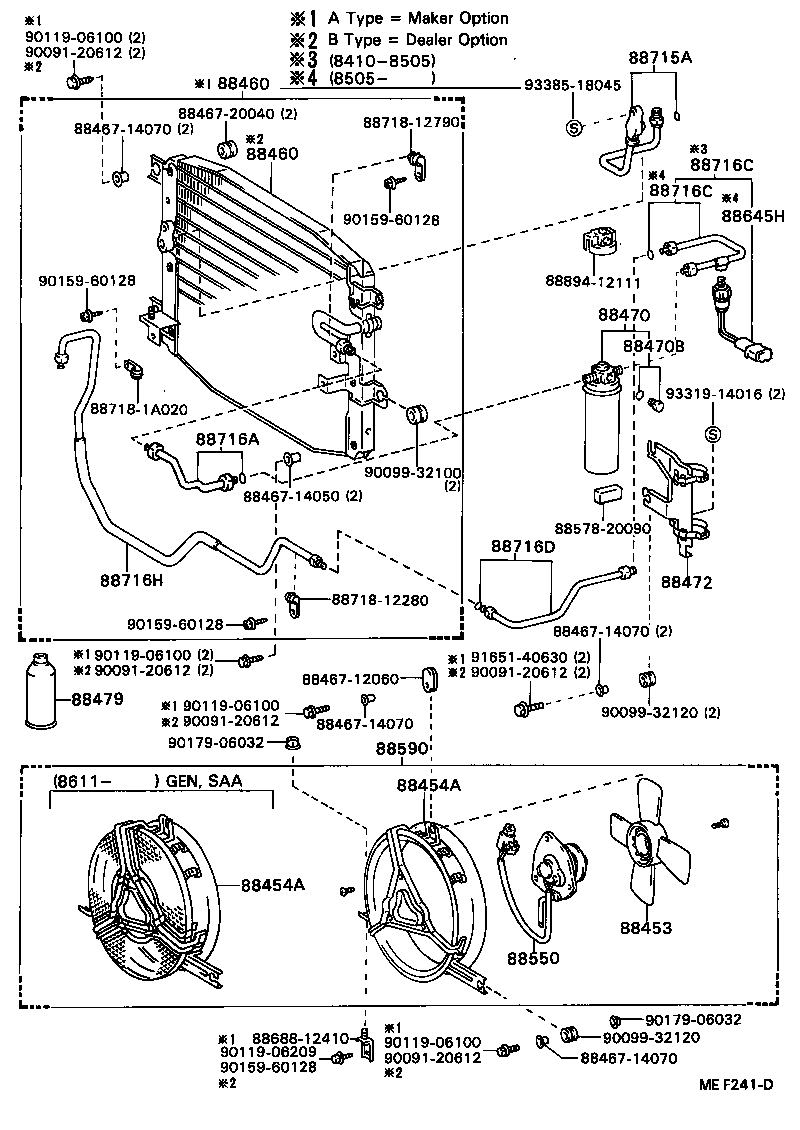

(8410-8707)EE80..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010	EE80..GEN,SAA	10/1984 - 04/1987	1
88454A - SHROUD, FAN
88454-12080	EE80..GEN,SAA	10/1984 - 11/1986	1
88454-12110	EE80..GEN,SAA	11/1986 - 07/1987	1
88454A - SHROUD, FAN
88454-12080	EE80..GEN,SAA	10/1984 - 11/1986	1
88454-12110	EE80..GEN,SAA	11/1986 - 07/1987	1
88460 - CONDENSER ASSY, COOLER
88460-12260	EE80..LHD..(GEN,SAA) A TYPE	10/1984 - 05/1985	1
88460-12261	EE80..LHD..(GEN,SAA) A TYPE	05/1985 - 07/1987	1
88460 - CONDENSER ASSY, COOLER
88460-12260	EE80..LHD..(GEN,SAA) A TYPE	10/1984 - 05/1985	1
88460-12261	EE80..LHD..(GEN,SAA) A TYPE	05/1985 - 07/1987	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	AE8#,CE80,EE80..ARL,GEN,SA,SAA 400G	05/1983 - 07/1988	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12090	EE80..GEN,SAA	10/1984 - 07/1987	1
88590 - BLOWER ASSY, W/SHROUD
88590-12070	EE80..GEN,SAA	10/1984 - 11/1986	1
88590-12071	EE80..GEN,SAA	11/1986 - 07/1987	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE82,CE80,EE80..GEN,SAA	05/1985 - 07/1987	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12280	EE80..GEN,SA,SAA	10/1984 - 02/1987	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12870	EE80..GEN,SA,SAA	10/1984 - 04/1987	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-12810	AE8#,CE80,EE80..LHD..(GEN,SAA)	05/1983 - 05/1985	1
88716-12850	AE82,CE80,EE80..LHD..(GEN,SAA)	05/1985 - 07/1987	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-12810	AE8#,CE80,EE80..LHD..(GEN,SAA)	05/1983 - 05/1985	1
88716-12850	AE82,CE80,EE80..LHD..(GEN,SAA)	05/1985 - 07/1987	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-12830	AE8#,CE80,EE80..LHD..(GEN,SAA)	05/1983 - 07/1987	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-12040	EE80..LHD..(GEN,SAA)	10/1984 - 07/1987	1
Common parts
88467-12060
88467-14050
88467-14070
88467-20040
88578-20090
88688-12410
88718-12280
88718-12790
88718-1A020
88894-12111
90091-20612
90099-32100
90099-32120
90119-06100
90119-06209
90159-60128
90179-06032
91651-40630
93319-14016
93385-18045

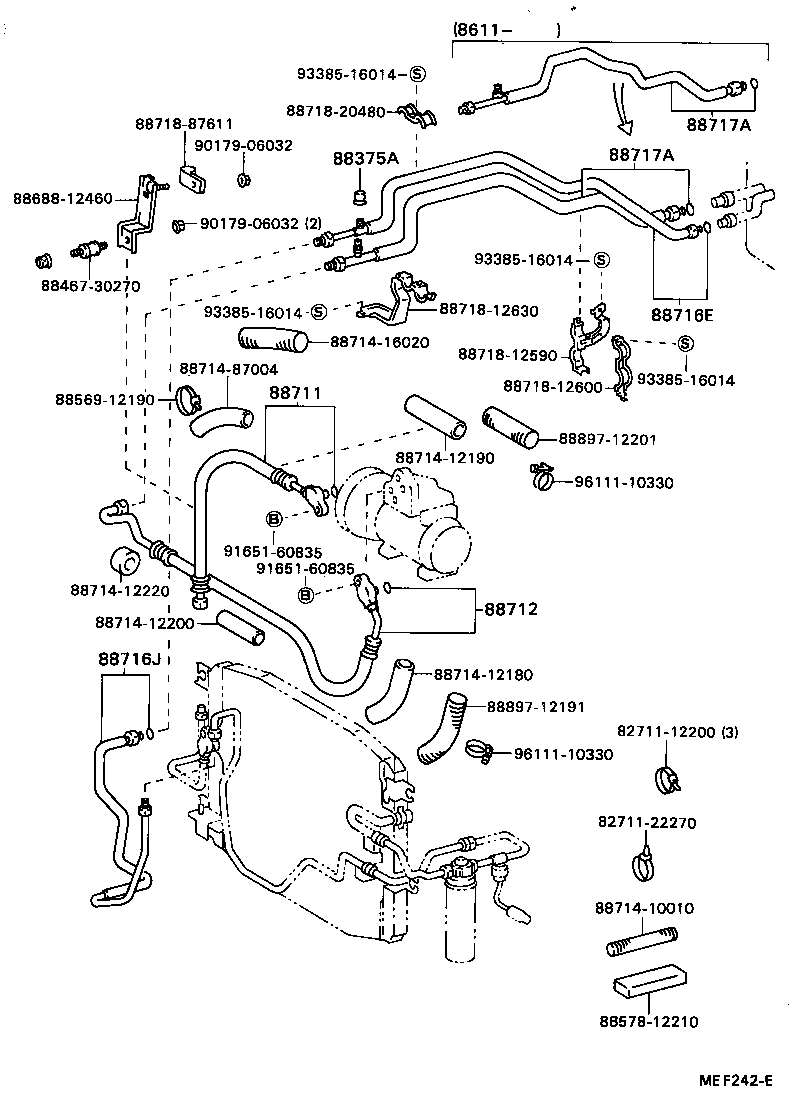

(8410-8707)EE80..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270	AE82,CE80,EE80..(GL,STD,XL)..(GEN,SAA)	05/1985 - 03/1987	1
88375-20010	AE82,CE80,EE80..(GL,STD,XL)..(GEN,SAA)	03/1987 - 07/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12350	EE80..GEN,SA,SAA	10/1984 - 05/1985	1
88711-12350	EE80..SA	05/1985 - 05/1986	1
88711-12351	EE80..GEN,SAA	05/1985 - 07/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12510	EE80..LHD..(GEN,SAA)	10/1984 - 07/1987	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12680	CE80,EE80..LHD..(GEN,SAA)	05/1983 - 03/1987	1
88716-12681	CE80,EE80..LHD..(GEN,SAA)	03/1987 - 07/1987	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-12060	EE80..LHD..(GEN,SAA)	10/1984 - 07/1987	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12191	CE80,EE80..LHD..(GEN,SAA)	11/1986 - 07/1987	1
88717-12190	CE80,EE80..LHD..(GEN,SAA)	05/1983 - 11/1986	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12191	CE80,EE80..LHD..(GEN,SAA)	11/1986 - 07/1987	1
88717-12190	CE80,EE80..LHD..(GEN,SAA)	05/1983 - 11/1986	1
Common parts
82711-12200
82711-22270
88467-30270
88569-12190
88578-12210
88688-12460
88714-10010
88714-12180
88714-12190
88714-12200
88714-12220
88714-16020
88714-87004
88718-12590
88718-12600
88718-12630
88718-20480
88718-87611
88897-12191
88897-12201
90179-06032
91651-60835
93385-16014
96111-10330

EE80L-EEHDSV (1984)

(8410-8707)EE80..LHD

(8410-8707)EE80..LHD
