EE80L-EEHDSV (1984)
Toyota Corolla Sed/Lb
(8305-8505)CS,DX,GL,S,STD ; (8505-8605)CS,S,STD..ARL,SA ; (8605- )CS,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

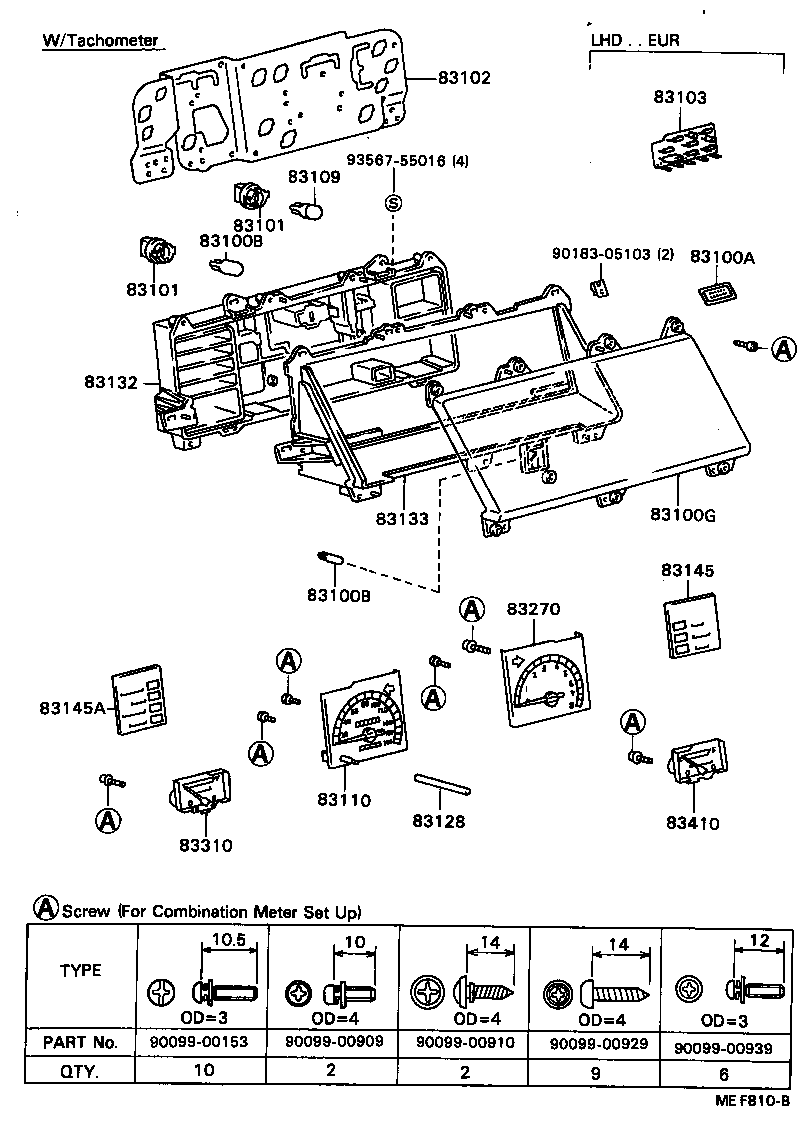

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83138-12530 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12730 |
AE82,EE80..LHD..(GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12810 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A551 |
EE80..SAA KM |
1 | ||
| 83110-1A581 |
EE80..XL..SAA KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83128-12710 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12570 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133-12670 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83133-1A110 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83133-1A150 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12830 |
AE8#,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83145-1A890 |
AE82,EE80..(DX,GL,SE)..SA W/TACHOMETER |
1 | ||
| 83145-1A350 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145-1A730 |
AE82,EE80..LHD..XL |
1 | ||
| 83145-1E190 |
EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12830 |
AE8#,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83145-1A890 |
AE82,EE80..(DX,GL,SE)..SA W/TACHOMETER |
1 | ||
| 83145-1A350 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145-1A730 |
AE82,EE80..LHD..XL |
1 | ||
| 83145-1E190 |
EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A810 |
EE80..SAA |
1 | ||
| 83145-1E130 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-1A050 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A470 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8305-8707)DX,GL,STD,XL..EUR,GEN,SAA ; (8605-)STD..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83138-12530 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12730 |
AE82,EE80..LHD..(GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12810 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A551 |
EE80..SAA KM |
1 | ||
| 83110-1A581 |
EE80..XL..SAA KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83128-12710 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12570 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133-12670 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83133-1A110 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83133-1A150 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12830 |
AE8#,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83145-1A890 |
AE82,EE80..(DX,GL,SE)..SA W/TACHOMETER |
1 | ||
| 83145-1A350 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145-1A730 |
AE82,EE80..LHD..XL |
1 | ||
| 83145-1E190 |
EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12830 |
AE8#,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83145-1A890 |
AE82,EE80..(DX,GL,SE)..SA W/TACHOMETER |
1 | ||
| 83145-1A350 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145-1A730 |
AE82,EE80..LHD..XL |
1 | ||
| 83145-1E190 |
EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A810 |
EE80..SAA |
1 | ||
| 83145-1E130 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-1A050 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A470 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8505-8707)DX,GL,GT,XL..EUR,GEN,SAA ; (8605-)3FC,4FC,5F..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE8#,CE80,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-12470 |
AE8#,CE80,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83138-12530 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12730 |
AE82,EE80..LHD..(GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83138-12810 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) OD=11.3,W/TACHOMETER |
6 | ||
| 83101-14030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA OD=18 |
10 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 12V3.4W W(GREEN CAP) |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A551 |
EE80..SAA KM |
1 | ||
| 83110-1A581 |
EE80..XL..SAA KM,W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12690 |
AE8#,CE80,EE80..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83128-12710 |
AE8#,EE80..(DX,GL,GT,SE,XL)..(GEN,SA,SAA) W/TACHOMETER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12570 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83132-12530 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-12630 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83133-12670 |
AE8#,EE80..LHD..(DX,GL,GT,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83133-1A110 |
AE82,CE80,EE80..LHD..(STD,XL)..(GEN,SAA) |
1 | ||
| 83133-1A150 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12830 |
AE8#,EE80..LHD..(DX,XL)..(GEN,SAA) |
1 | ||
| 83145-1A890 |
AE82,EE80..(DX,GL,SE)..SA W/TACHOMETER |
1 | ||
| 83145-1A350 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145-1A730 |
AE82,EE80..LHD..XL |
1 | ||
| 83145-1E190 |
EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-1A810 |
EE80..SAA |
1 | ||
| 83145-1E130 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A270 |
EE80..LHD..(GL,XL)..(GEN,SAA) |
1 | ||
| 83242-1A510 |
EE80..LHD..(GL,XL)..(GEN,SAA) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12630 |
AE8#,EE80..LHD..(DX,GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-1A050 |
AE82,EE80..LHD..(GL,XL)..(GEN,SAA) W/TACHOMETER |
1 | ||
| 83243-12570 |
AE8#,CE80,EE80..LHD..(DX,STD,XL)..(GEN,SAA) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A470 |
EE80..XL..SAA W/TACHOMETER |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
