CE80R-EEMDSW (1983)
Toyota Corolla Sed/Lb
(8308- )DX,LE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||
(8308-8508)CE80..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

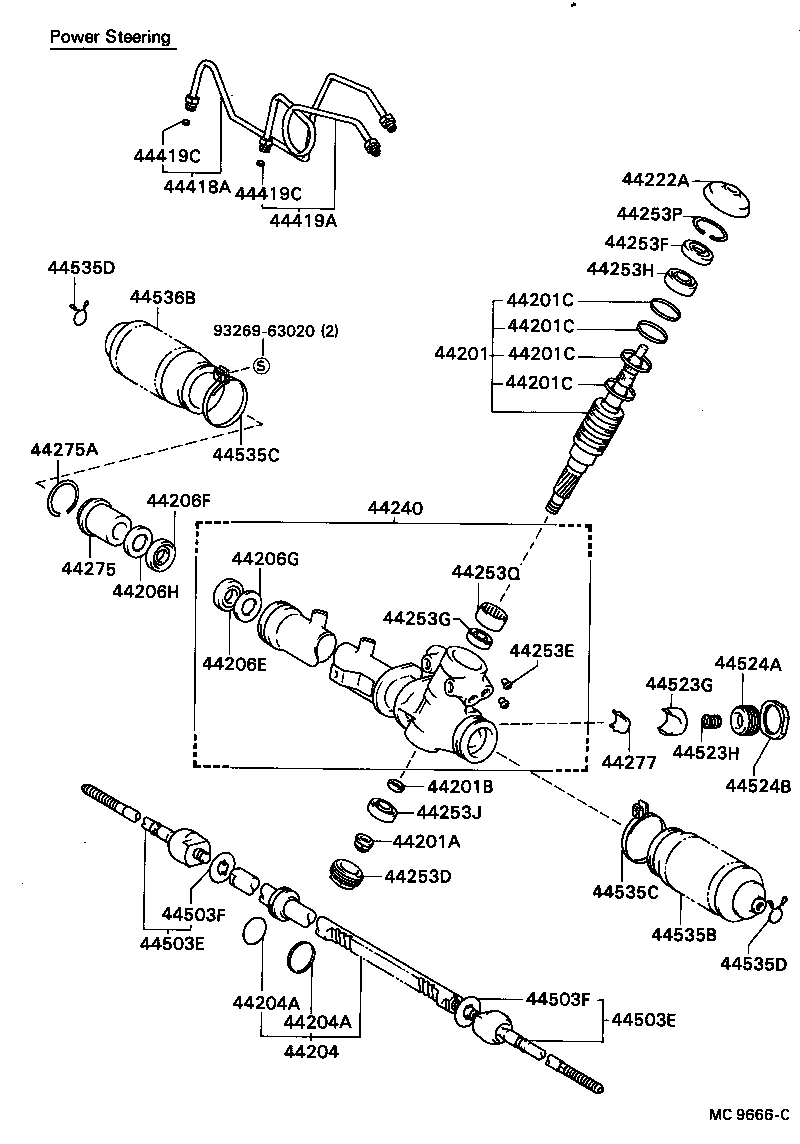

(8308-8508)CE80..DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
CE80..RHD |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
CE80..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24004 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12020 |
CE80;AE82..4DS..RHD |
1 | ||
| 45222-12021 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12040 |
CE80..RHD |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90369-19005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253J - BEARING, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90363-12008 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12030 |
CE80..RHD |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
CE80..RHD |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CE80;AE82..4DS..RHD |
1 | ||
| 90501-23007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-33003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||

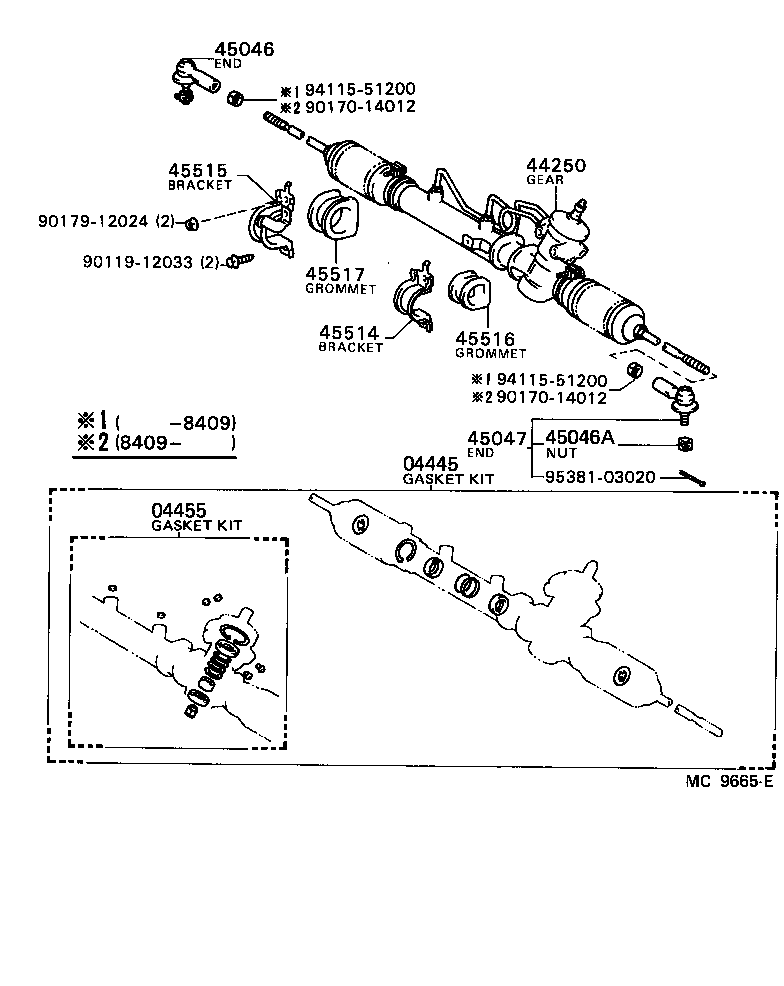

(8305-8505)AE82..4DS..RHD..GL..GEN ; (8305- )CE80..RHD ; (8402- )4DS..GL..SA
(XL,GL)..GEN +AE82RELMQF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 04445-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 04455-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12050 |
CE80..RHD |
1 | ||
| 44250-12050 |
CE80..RHD |
1 | ||
| 44250-12051 |
CE80..RHD |
1 | ||
| 44250-12051 |
CE80..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AE8#..RHD;CE80,EE80 |
1 | ||
| 45515-12060 |
AE8#..RHD;CE80,EE80 |
1 | ||
| 45515-12070 |
CE80 W/POWER STEERING |
1 | ||
| 45515-12070 |
CE80 W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12060 |
CE80;AE82..4DS..RHD..GL..GEN W/POWER STEERING |
1 | ||
| 45517-12060 |
CE80;AE82..4DS..RHD..GL..GEN W/POWER STEERING |
1 | ||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||
(8305-8505)AE82..4DS..RHD..GL..GEN ; (8305- )CE80..RHD ; (8402- )4DS..GL..SA
(XL,GL)..GEN +AE82RELMQF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
CE80..RHD |
1 | ||
| 44201-12030 |
CE80..RHD |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 94184-61200 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90560-12030 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90562-33002 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
CE80..RHD |
1 | ||
| 44204-12030 |
CE80..RHD |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90301-33003 |
CE80;AE82..4DS..RHD..GL..GEN INNER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 90562-37001 |
CE80;AE82..4DS..RHD..GL..GEN OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90310-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24004 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90310-24004 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90560-24005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90560-25007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12020 |
CE80;AE82..4DS..RHD |
1 | ||
| 45222-12020 |
CE80;AE82..4DS..RHD |
1 | ||
| 45222-12021 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 45222-12021 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12040 |
CE80..RHD |
1 | ||
| 44240-12040 |
CE80..RHD |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44283-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 90410-06002 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90311-19007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90310-23005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90369-19005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90369-19005 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253J - BEARING, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90363-12008 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90363-12008 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90521-41003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90389-28001 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44275-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90521-50002 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44277-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12030 |
CE80..RHD |
1 | ||
| 44418-12030 |
CE80..RHD |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
CE80..RHD |
1 | ||
| 44419-12030 |
CE80..RHD |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 90430-04007 |
CE80;AE82..4DS..RHD..GL..GEN |
4 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19056 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 45503-19055 |
CE80;AE82..GL..GEN |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..GL..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 90214-14002 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 45523-12020 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
CE80;AE82..4DS..RHD |
1 | ||
| 90501-23024 |
CE80;AE82..4DS..RHD |
1 | ||
| 90501-23007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90501-23007 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 45524-12010 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-33003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 90179-33003 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 90949-01081 |
CE80;AE82..4DS..RHD..GL..GEN |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..GL..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 90467-18003 |
CE80;AE82..(GL,STD,XL)..GEN |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| 45535-12040 |
CE80;AE82..4DS..RHD..GL..GEN |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
(8305- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE8#,CE80,EE80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29135 |
AE8#,CE80 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12090 |
AE8#,CE80,EE80..RHD..(EUR,GEN,SA) |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19035 |
AE8#,CE80 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19035 |
AE8#,CE80 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12060 |
CE80..RHD |
1 | ||
| 45510-12061 |
CE80..RHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20010 |
CE80;AE82..LHD..GL..GEN W/POWER STEERING |
1 | ||
| 45514-20010 |
CE80;AE82..(4DS,5D)..LHD..GEN W/POWER STEERING |
1 | ||
| 45514-12040 |
CE80,EE80;AE8#..LHD..(DX,GL,STD,XL) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AE8#..RHD;CE80,EE80 |
1 | ||
| 45515-12070 |
CE80 W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AE8#,CE80,EE80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12060 |
CE80;AE82..4DS..RHD..GL..GEN W/POWER STEERING |
1 | ||
| 45517-12050 |
AE8#,CE80,EE80 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12090 |
CE80..RHD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
AE8#,CE80 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 90501-30007 |
CE80;AE82,EE80..(DX,GL,STD)..EUR VARIABLE GEAR RATIO |
1 | ||
| 90501-30007 |
CE80;AE82..(DX,GL)..EUR VARIABLE GEAR RATIO |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.1 |
1 | ||
| 90949-01082 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.2 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.1 |
1 | ||
| 90949-01082 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA NO.2 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12030 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12030 |
CE80..RHD |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
