CE80R-EEMDS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)CE80..MTM

Click highlighted areas on diagram

diagram 31105 31105D 31105F 31105H 3305 33449 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
Linked diagrams
3305

(8305- )CE80

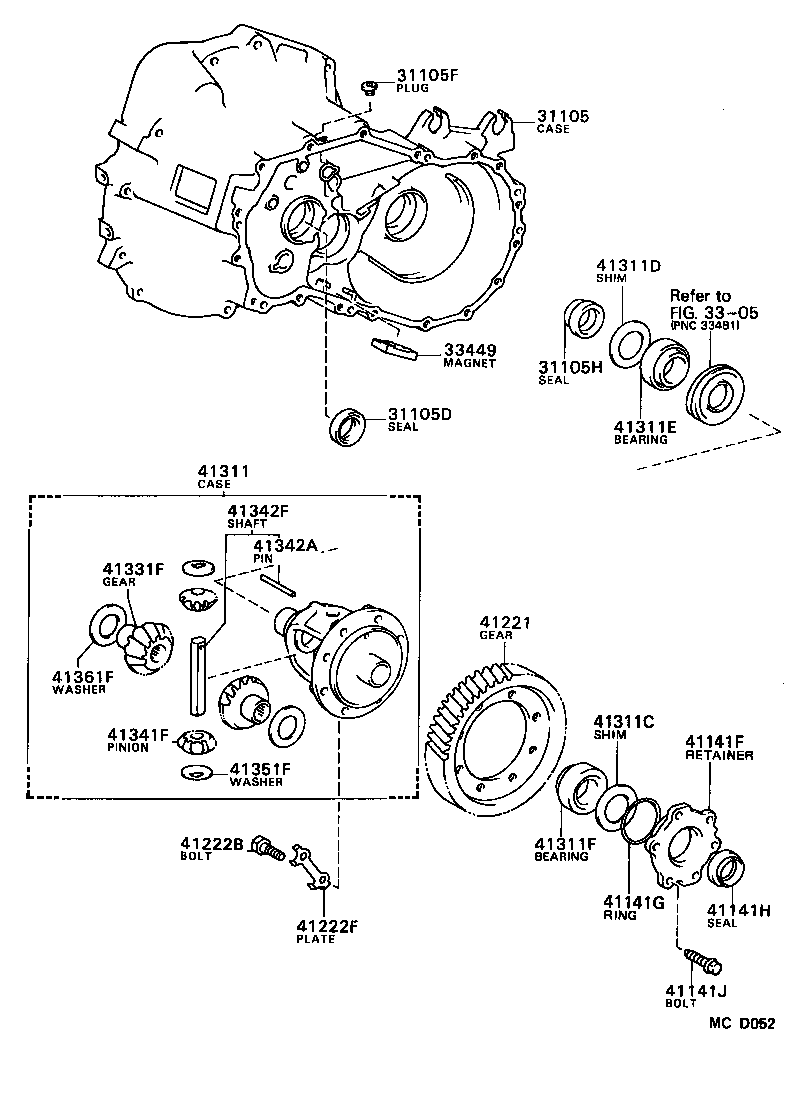

Click highlighted areas on diagram

diagram 31105 31105D 31105F 31105H 3305 33449 41141F 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32011

CE80

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30002

CE80

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

CE80

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35007

CE80

 1
33449 - MAGNET, TRANSMISSION
33449-32010

CE80

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141-32010

CE80

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141-32010

CE80

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

CE80

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35007

CE80

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

CE80

*8-1.25PX26.5-23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32030

CE80

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

CE80

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

CE80

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32010

CE80

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001

CE80

T=1.90,MARK 01,T=1.90

 1
90564-45006

CE80

T=2.15,MARK 06,T=2.15

 1
90564-45002

CE80

T=1.95,MARK 02,T=1.95

 1
90564-45005

CE80

T=2.10,MARK 05,T=2.10

 1
90564-45004

CE80

T=2.05,MARK 04,T=2.05

 1
90564-45010

CE80

T=2.35,MARK 10,T=2.35

 1
90564-45016

CE80

T=2.65,MARK 16,T=2.65

 1
90564-45014

CE80

T=2.55,MARK 14,T=2.55

 1
90564-45003

CE80

T=2.00,MARK 03,T=2.00

 1
90564-45015

CE80

T=2.60,MARK 15,T=2.60

 1
90564-45012

CE80

T=2.45,MARK 12,T=2.45

 1
90564-45011

CE80

T=2.40,MARK 11,T=2.40

 1
90564-45009

CE80

T=2.30,MARK 09,T=2.30

 1
90564-45008

CE80

T=2.25,MARK 08,T=2.25

 1
90564-45013

CE80

T=2.50,MARK 13,T=2.50

 1
90564-45007

CE80

T=2.20,MARK 07,T=2.20

 1
90564-45019

CE80

T=2.80,MARK 19,T=2.80

 1
90564-45017

CE80

T=2.70,MARK 17,T=2.70

 1
90564-45018

CE80

T=2.75,MARK 18,T=2.75

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

CE80

T=2.40,MARK 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-40003

CE80

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-40003

CE80

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CE80

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

CE80

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AE8#,CE80,EE80

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-39025

CE80

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CE80

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

AE8#,CE80,EE80

T=1.20,MARK 04,T=1.2

 2
41361-22140

AE8#,CE80,EE80

T=0.95,MARK 14,T=0.95

 2
41361-22020

AE8#,CE80,EE80

T=1.00,MARK 02,T=1.0

 2
41361-22160

AE8#,CE80,EE80

T=1.15,MARK 16,T=1.15

 2
41361-22150

AE8#,CE80,EE80

T=1.05,MARK 15,T=1.05

 2
41361-22030

AE8#,CE80,EE80

T=1.10,MARK 03,T=1.1

 2
