CE80L-EEKRCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 1CLC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

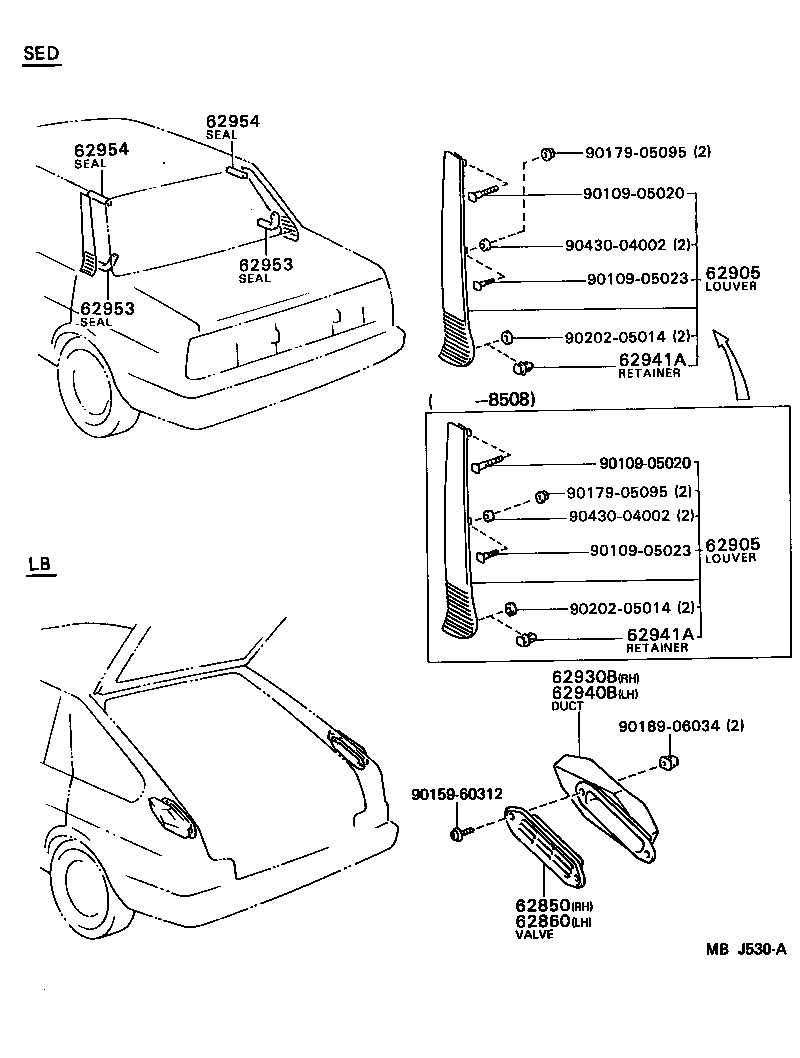

Click highlighted areas on diagram

diagram 62850 62860 62905 62905 62930B 62940B 62941A 62941A 62953 62953 62954 62954 9010905020 9010905020 9010905023 9010905023 9015960312 9017905095 9017905095 9018906034 9020205014 9020205014 9043004002 9043004002
Part # Description Qty Price
62905 - LOUVER, QUARTER VENTILATION
62905-19335

AE82,CE80..SED

RH

 1
62906-19315

AE82,CE80..SED

LH

 1
62905 - LOUVER, QUARTER VENTILATION
62905-19335

AE82,CE80..SED

RH

 1
62906-19315

AE82,CE80..SED

LH

 1
62941A - RETAINER, QUARTER VENT DUCT
62955-20020

AE82,CE80..SED

 4
62941A - RETAINER, QUARTER VENT DUCT
62955-20020

AE82,CE80..SED

 4
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12050

AE82,CE80..SED

 2
62953 - SEAL, QUARTER VENT DUCT, NO.1
62957-12050

AE82,CE80..SED

 2
62954 - SEAL, QUARTER VENT DUCT, NO.2
62958-12010

AE82,CE80..SED

 2
62954 - SEAL, QUARTER VENT DUCT, NO.2
62958-12010

AE82,CE80..SED

 2
Common parts
90109-05020
90109-05023
90159-60312
90179-05095
90189-06034
90202-05014
90430-04002
