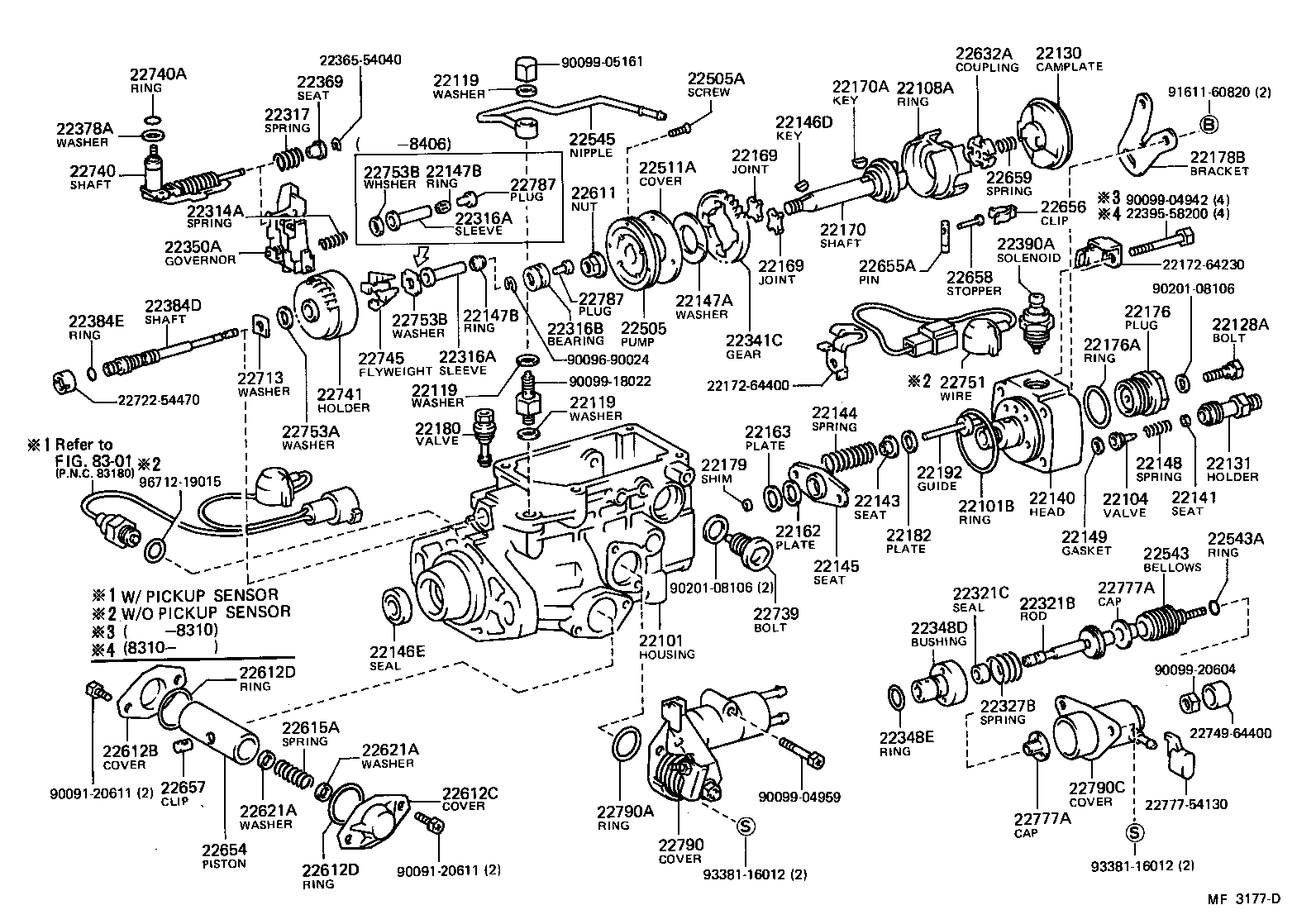

CE80L-EEKRCA (1983)
Toyota Corolla Sed/Lb
(8308-8508)1CLC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54400 |
1CLC..CE80 |
1 | ||
| 22101-54410 |
1CLC..CE80 W/PICKUP SENSOR |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
1CLC..CE80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-64010 |
1CLC..CE80 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
1CLC..CE80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CLC..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CLC..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CLC..CE80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
1CLC..CE80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-64010 |
1CLC..CE80 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-54170 |
1CLC..CE80 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64400 |
1CLC..CE80 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
1CLC..CE80 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
1CLC..CE80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54180 |
1CLC..CE80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
1CLC..CE80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1CLC..CE80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 90099-15028 |
1CLC..CE80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
1CLC..CE80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54010 |
1CLC..CE80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54010 |
1CLC..CE80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1CLC..CE80 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1CLC..CE80 |
4 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
1CLC..CE80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
1CLC..CE80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CLC..CE80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1CLC..CE80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
1CLC..CE80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
1CLC..CE80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1CLC..CE80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
1CLC..CE80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-64010 |
1CLC..CE80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
1CLC..CE80 T=2.2,T=2.2 |
1 | ||
| 22179-54011 |
1CLC..CE80 T=2.0,T=2.0 |
1 | ||
| 22179-54012 |
1CLC..CE80 T=2.1,T=2.1 |
1 | ||
| 22179-54014 |
1CLC..CE80 T=2.3,T=2.3 |
1 | ||
| 22179-54016 |
1CLC..CE80 T=2.5,T=2.5 |
1 | ||
| 22179-54015 |
1CLC..CE80 T=2.4,T=2.4 |
1 | ||
| 22179-54010 |
1CLC..CE80 T=1.9,T=1.9 |
1 | ||
| 22179-54019 |
1CLC..CE80 T=2.8,T=2.8 |
1 | ||
| 22179-54018 |
1CLC..CE80 T=2.7,T=2.7 |
1 | ||
| 22179-54017 |
1CLC..CE80 T=2.6,T=2.6 |
1 | ||
| 22179-54020 |
1CLC..CE80 T=2.9,T=2.9 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
1CLC..CE80 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
1CLC..CE80 T=0.5,T=0.5 |
2 | ||
| 22188-54010 |
1CLC..CE80 T=2.0,T=2.0 |
2 | ||
| 22187-54010 |
1CLC..CE80 T=1.8,T=1.8 |
2 | ||
| 22183-54010 |
1CLC..CE80 T=0.8,T=0.8 |
2 | ||
| 22186-54010 |
1CLC..CE80 T=1.5,T=1.5 |
2 | ||
| 22184-54010 |
1CLC..CE80 T=1.0,T=1.0 |
2 | ||
| 22185-54010 |
1CLC..CE80 T=1.2,T=1.2 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
1CLC..CE80 |
2 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
1CLC..CE80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54010 |
1CLC..CE80 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54010 |
1CLC..CE80 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64030 |
1CLC..CE80 K=0.2,L=6.0 |
1 | ||
| 22321B - ROD, PUSH(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22321-54292 |
1CLC..CE80 |
1 | ||
| 22321C - SEAL, OIL(FOR PUSH ROD) | ||||
| 90099-15032 |
1CLC..CE80 |
1 | ||
| 22327B - SPRING(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22327-54290 |
1CLC..CE80 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
1CLC..CE80 |
1 | ||
| 22348D - BUSHING, GUIDE(FOR ALTITUDE COMPENSATING TIMER ADVANCER | ||||
| 22348-64410 |
1CLC..CE80 |
1 | ||
| 22348E - RING, O(FOR GUIDE BUSHING) | ||||
| 22193-54290 |
1CLC..CE80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64010 |
1CLC..CE80 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54080 |
1CLC..CE80 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-54010 |
1CLC..CE80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
1CLC..CE80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
1CLC..CE80 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-54110 |
1CLC..CE80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
1CLC..CE80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
1CLC..CE80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
1CLC..CE80 |
1 | ||
| 22543 - BELLOWS(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22554-54290 |
1CLC..CE80 |
1 | ||
| 22543A - RING, O(FOR BELLOWS SUB-ASSY) | ||||
| 22193-54291 |
1CLC..CE80 |
1 | ||
| 22545 - NIPPLE, SWIVEL(FOR INJECTION PUMP INLET) | ||||
| 22548-64150 |
1CLC..CE80 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 90099-05166 |
1CLC..CE80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1CLC..CE80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-64410 |
1CLC..CE80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CLC..CE80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CLC..CE80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64400 |
1CLC..CE80 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
1CLC..CE80 T=1.0,T=1.0 |
2 | ||
| 22621-54010 |
1CLC..CE80 T=0.5,T=0.5 |
2 | ||
| 22624-54010 |
1CLC..CE80 T=0.2,T=0.2 |
2 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22622-54010 |
1CLC..CE80 T=1.0,T=1.0 |
2 | ||
| 22621-54010 |
1CLC..CE80 T=0.5,T=0.5 |
2 | ||
| 22624-54010 |
1CLC..CE80 T=0.2,T=0.2 |
2 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
1CLC..CE80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22662-64400 |
1CLC..CE80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
1CLC..CE80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1CLC..CE80 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
1CLC..CE80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54010 |
1CLC..CE80 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1CLC..CE80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
1CLC..CE80 T=1.25,T=1.25 |
1 | ||
| 22716-54010 |
1CLC..CE80 T=1.65,T=1.65 |
1 | ||
| 22717-54010 |
1CLC..CE80 T=1.85,T=1.85 |
1 | ||
| 22713-54010 |
1CLC..CE80 T=1.05,T=1.05 |
1 | ||
| 22715-54010 |
1CLC..CE80 T=1.45,T=1.45 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
1CLC..CE80 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22302-64400 |
1CLC..CE80 |
1 | ||
| 22740-64010 |
1CLC..CE80 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1CLC..CE80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
1CLC..CE80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
1CLC..CE80 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-64400 |
1CLC..CE80 W/O PICKUP SENSOR |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
1CLC..CE80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
1CLC..CE80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
1CLC..CE80 |
1 | ||
| 22777A - CAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22777-54290 |
1CLC..CE80 |
2 | ||
| 22777A - CAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22777-54290 |
1CLC..CE80 |
2 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54010 |
1CLC..CE80 L=5.9,L=5.9 |
1 | ||
| 22787-54024 |
1CLC..CE80 L=5.5,L=5.5 |
1 | ||
| 22787-54023 |
1CLC..CE80 L=5.3,L=5.3 |
1 | ||
| 22787-54012 |
1CLC..CE80 L=6.3,L=6.3 |
1 | ||
| 22787-54019 |
1CLC..CE80 L=4.5,L=4.5 |
1 | ||
| 22787-54011 |
1CLC..CE80 L=6.1,L=6.1 |
1 | ||
| 22787-54020 |
1CLC..CE80 L=4.7,L=4.7 |
1 | ||
| 22787-54022 |
1CLC..CE80 L=5.1,L=5.1 |
1 | ||
| 22787-54018 |
1CLC..CE80 L=4.3,T=4.3 |
1 | ||
| 22787-54025 |
1CLC..CE80 L=5.7,L=5.7 |
1 | ||
| 22787-54021 |
1CLC..CE80 L=4.9,L=4.9 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54010 |
1CLC..CE80 L=5.9,L=5.9 |
1 | ||
| 22787-54024 |
1CLC..CE80 L=5.5,L=5.5 |
1 | ||
| 22787-54023 |
1CLC..CE80 L=5.3,L=5.3 |
1 | ||
| 22787-54012 |
1CLC..CE80 L=6.3,L=6.3 |
1 | ||
| 22787-54019 |
1CLC..CE80 L=4.5,L=4.5 |
1 | ||
| 22787-54011 |
1CLC..CE80 L=6.1,L=6.1 |
1 | ||
| 22787-54020 |
1CLC..CE80 L=4.7,L=4.7 |
1 | ||
| 22787-54022 |
1CLC..CE80 L=5.1,L=5.1 |
1 | ||
| 22787-54018 |
1CLC..CE80 L=4.3,T=4.3 |
1 | ||
| 22787-54025 |
1CLC..CE80 L=5.7,L=5.7 |
1 | ||
| 22787-54021 |
1CLC..CE80 L=4.9,L=4.9 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-64400 |
1CLC..CE80 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1CLC..CE80 |
1 | ||
| 22790C - COVER, TIMER(FOR ALTITUDE COMPENSATING TIMER ADVANCER) | ||||
| 22790-64420 |
1CLC..CE80 |
1 | ||
| Common parts | ||||
| 22172-64230 | ||||
| 22172-64400 | ||||
| 22365-54040 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 22749-64400 | ||||
| 22777-54130 | ||||
| 90091-20611 | ||||
| 90096-90024 | ||||
| 90099-04942 | ||||
| 90099-04959 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90099-20604 | ||||
| 90201-08106 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 96712-19015 | ||||
| Linked diagrams | ||||
| 8301 | ||||
(8308-8508)1CLC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CLC..CE80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-77020 |
1CLC..CE80 |
5 | ||
| 22129 - PLUG, SCREW | ||||
| 22129-64400 |
1CLC..CE80 |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 22119-77020 |
1CLC..CE80 |
1 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
1CLC..CE80 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-54121 |
1CLC..CE80 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64010 |
1CLC..CE80 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-54120 |
1CLC..CE80 |
1 | ||
| 22321A - ROD, PUSH | ||||
| 22321-64400 |
1CLC..CE80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-64350 |
1CLC..CE80 |
1 | ||
| 22322B - SPRING, RETURN(INNER) | ||||
| 22322-64011 |
1CLC..CE80 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54120 |
1CLC..CE80 |
1 | ||
| 22327C - SPRING, NO.2(FOR BELLOWS) | ||||
| 22327-64400 |
1CLC..CE80 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
1CLC..CE80 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
1CLC..CE80 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
1CLC..CE80 |
1 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
1CLC..CE80 |
2 | ||
| 22378 - WASHER, DRAIN SCREW | ||||
| 22378-76010 |
1CLC..CE80 |
2 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
1CLC..CE80 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-64400 |
1CLC..CE80 |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-64400 |
1CLC..CE80 |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
1CLC..CE80 |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-64400 |
1CLC..CE80 |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-64400 |
1CLC..CE80 |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
1CLC..CE80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-64401 |
1CLC..CE80..MTM MARK "86" |
1 | ||
| 22701-64400 |
1CLC..CE80..MTM MARK "85" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-64400 |
1CLC..CE80 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1CLC..CE80 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-64010 |
1CLC..CE80 |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1CLC..CE80 |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1CLC..CE80 |
2 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1CLC..CE80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
1CLC..CE80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
1CLC..CE80 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
1CLC..CE80 |
1 | ||
| 22777B - CAP, RUBBER, NO.2(FOR BELLOWS) | ||||
| 22777-64410 |
1CLC..CE80 |
1 | ||
| Common parts | ||||
| 22172-64150 | ||||
| 22395-54010 | ||||
| 22722-54120 | ||||
| 22777-54130 | ||||
| 90091-20610 | ||||
| 90091-20611 | ||||
| 90093-00802 | ||||
| 90099-04953 | ||||
| 90099-05140 | ||||
| 90099-05156 | ||||
| 93319-14008 | ||||
| 93381-16012 | ||||
| 93385-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8401 | ||||
| 8717 | ||||
(8305-8501)1CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22172-64150 | ||||
| 22172-64230 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22395-64150 | ||||
| 22722-54470 | ||||
| 90091-00561 | ||||
| 90091-20611 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 96712-19015 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
