CE80L-EEKRCA (1983)
Toyota Corolla Sed/Lb
(8308- )1CLC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

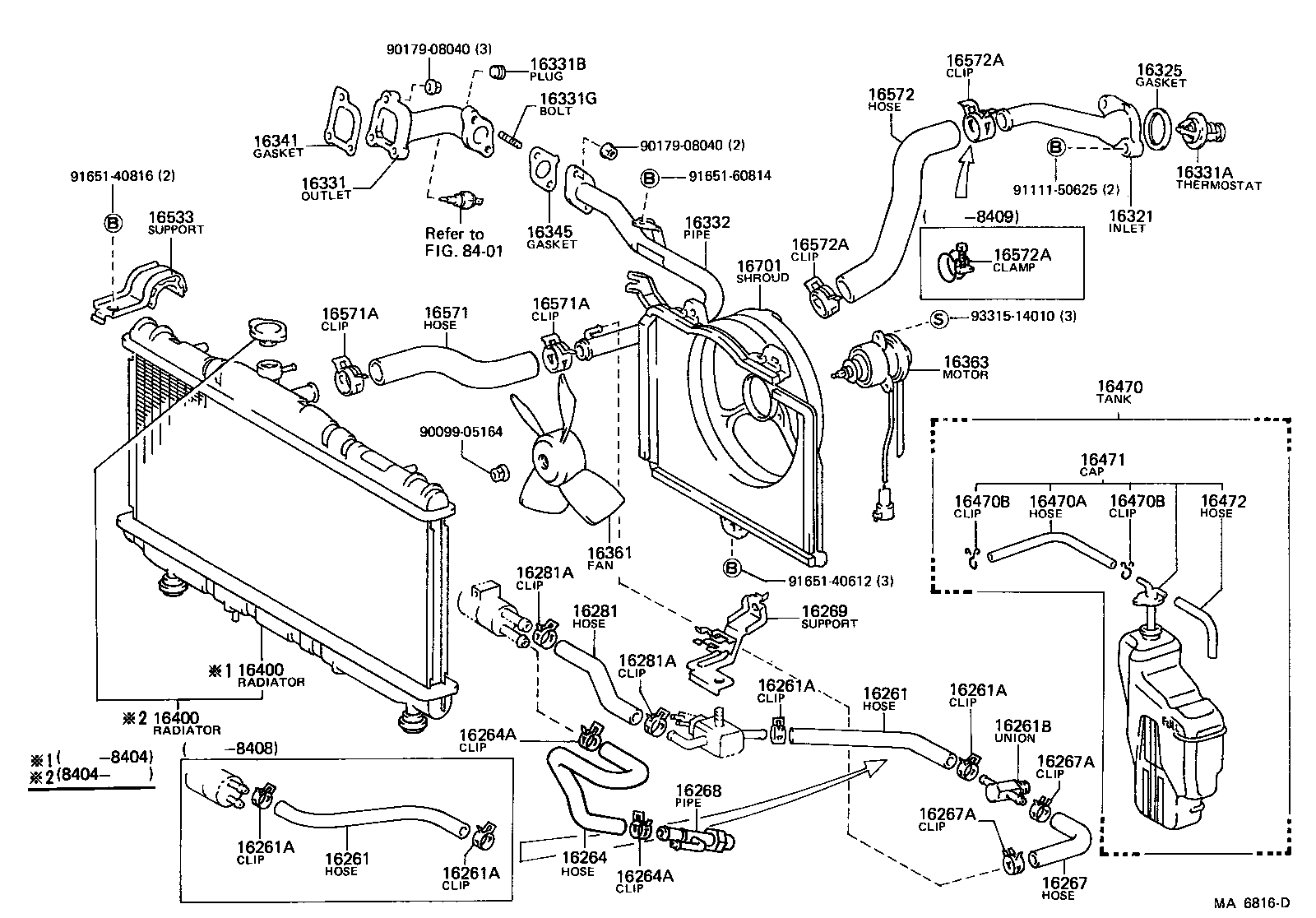

| 16400 - RADIATOR ASSY | ||||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1CLC..CE80 |
1 | ||
| 23322-54010 |
1CLC..CE80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1CLC..CE80 |
1 | ||
| 96711-19007 |
1CLC..CE80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1CLC..CE80 |
1 | ||
| 16401-63010 |
1CLC..CE80 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-64070 |
1CLC..CE80..MTM |
1 | ||
| 16403-64070 |
1CLC..CE80..MTM |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-64070 |
1CLC..CE80 |
1 | ||
| 16441-64070 |
1CLC..CE80 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
1CLC..CE80 |
1 | ||
| 16462-63030 |
1CLC..CE80 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
1CLC..CE80 |
2 | ||
| 16463-15320 |
1CLC..CE80 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
1CLC..CE80 |
1 | ||
| 16452-64070 |
1CLC..CE80 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-64070 |
1CLC..CE80 |
1 | ||
| 16452-64070 |
1CLC..CE80 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-64070 |
1CLC..CE80..MTM |
1 | ||
| 16461-64070 |
1CLC..CE80..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
1CLC..CE80 |
1 | ||
| 16462-63030 |
1CLC..CE80 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
1CLC..CE80 |
2 | ||
| 16463-15320 |
1CLC..CE80 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-63010 |
1CLC..CE80 |
2 | ||
| 16535-63010 |
1CLC..CE80 |
2 | ||
(8308-8508)1CLC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64060 |
1CLC..CE80 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64060 |
1CLC..CE80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53050 |
1CLC..CE80 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64050 |
1CLC..CE80 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1CLC..CE80 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-64010 |
1CLC..CE80 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1CLC..CE80 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1CLC..CE80 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64020 |
1CLC..CE80 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
1CLC..CE80 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1CLC..CE80 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64030 |
1CLC..CE80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1CLC..CE80 *WAX 82-95,*WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
1CLC..CE80 |
2 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92122-60816 |
1CLC..CE80 |
2 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-64010 |
1CLC..CE80 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64010 |
1CLC..CE80 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-64020 |
1CLC..CE80 |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
1CLC..CE80 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-64010 |
1CLC..CE80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-64060 |
1CLC..CE80..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-63030 |
1CLC..CE80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12129 |
1CLC..CE80 L=480 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1CLC..CE80 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1CLC..CE80 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-63030 |
1CLC..CE80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
1CLC..CE80 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64010 |
1CLC..CE80 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64050 |
1CLC..CE80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1CLC..CE80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1CLC..CE80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64050 |
1CLC..CE80 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
1CLC..CE80 WATER INLET SIDE |
1 | ||
| 90467-34001 |
1CLC..CE80 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
1CLC..CE80 WATER INLET SIDE |
1 | ||
| 90467-34001 |
1CLC..CE80 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
1CLC..CE80 WATER INLET SIDE |
1 | ||
| 90467-34001 |
1CLC..CE80 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64050 |
1CLC..CE80 |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 90179-08040 | ||||
| 91111-50625 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
