AE82R-ELMQFN (1984)

Toyota Corolla Sed/Lb

Production Nov 1984 - Apr 1988
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)

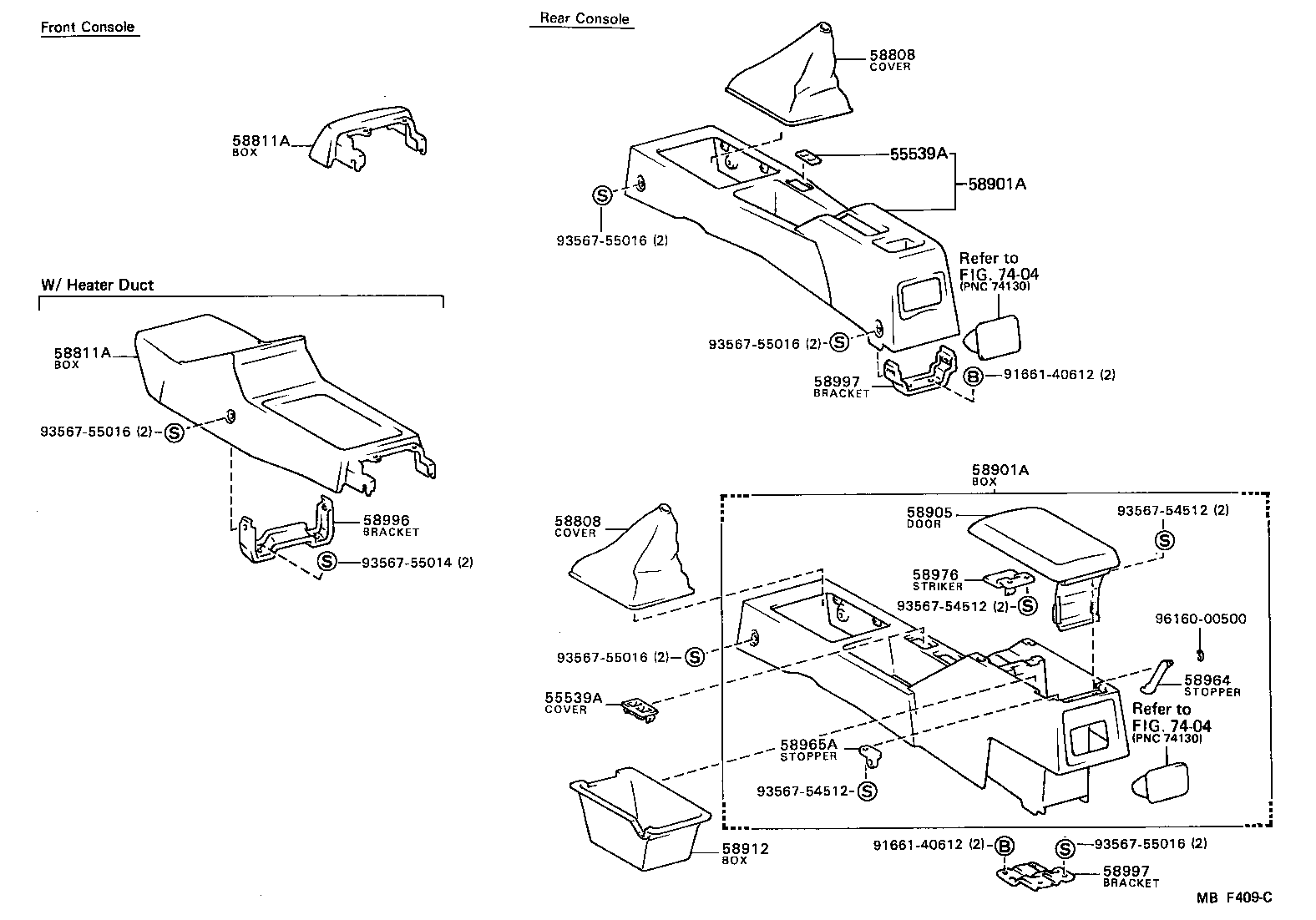

Click highlighted areas on diagram

diagram 55539A 55539A 58808 58808 58811A 58811A 58901A 58901A 58905 58912 58964 58965A 58976 58996 58997 58997 7404 7404 9166140612 9166140612 9356754512 9356754512 9356754512 9356755014 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
Common parts
91661-40612
93567-54512
93567-55014
93567-55016
96160-00500
Linked diagrams
7404

(8508- )

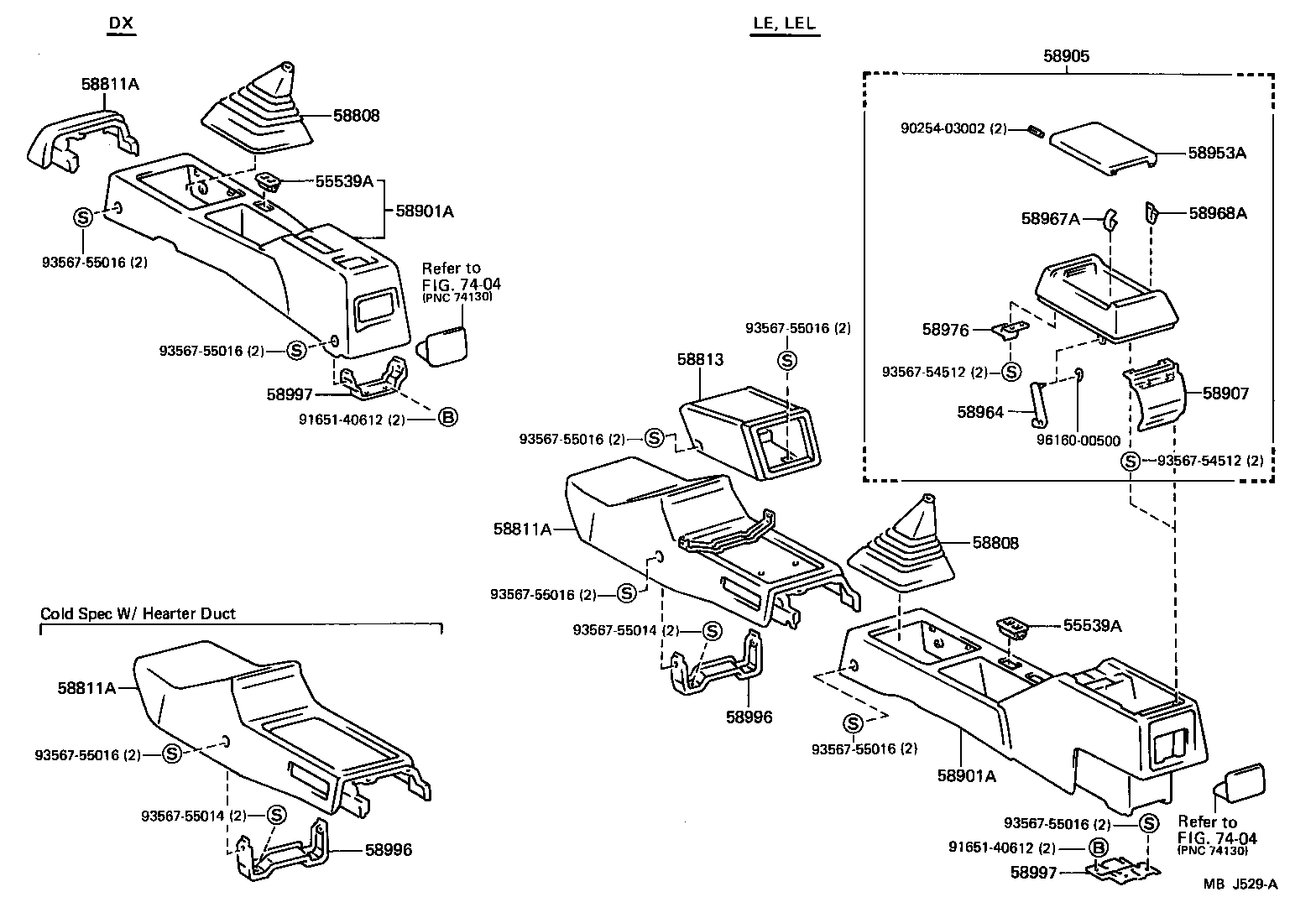

Click highlighted areas on diagram

diagram 55539A 55539A 58808 58808 58811A 58811A 58811A 58813 58901A 58901A 58905 58907 58953A 58964 58967A 58968A 58976 58996 58996 58997 58997 7404 7404 9025403002 9165140612 9165140612 9356754512 9356754512 9356755014 9356755014 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
Common parts
90254-03002
91651-40612
93567-54512
93567-55014
93567-55016
96160-00500
Linked diagrams
7404

(8305-8505) ; (8505- )ARL,SA

Click highlighted areas on diagram

diagram 55539A 55539A 58808 58808 58811A 58811A 58811A 58811A 58813 58901A 58901A 58905 58912 58964 58965A 58976 58996 58996 58996 58997 58997 7404 7404 9166140612 9166140612 9356754512 9356754512 9356754512 9356755014 9356755014 9356755014 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-1403126

AE82..GT..SA

BROWN,BROWN,TRIM4#

 1
55539-1403113

AE82..GT..SA

GRAY,GRAY,TRIM1#

 1
55539-1403126

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 2
55539-1403113

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 2
55539A - COVER, SPARE SWITCH HOLE
55539-1403126

AE82..GT..SA

BROWN,BROWN,TRIM4#

 1
55539-1403113

AE82..GT..SA

GRAY,GRAY,TRIM1#

 1
55539-1403126

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 2
55539-1403113

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1206004

AE8#,CE80..MTM

BLUE,BLUE,TRIM8#

 1
58808-1208016

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58808-1208013

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58808-1206002

AE8#,CE80..MTM

MAROON,RED/MAROON,TRIM3#

 1
58808-1206003

AE8#,CE80..MTM

GRAY,GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1206004

AE8#,CE80..MTM

BLUE,BLUE,TRIM8#

 1
58808-1208016

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58808-1208013

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58808-1206002

AE8#,CE80..MTM

MAROON,RED/MAROON,TRIM3#

 1
58808-1206003

AE8#,CE80..MTM

GRAY,GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58910-1201006

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58910-1201003

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58910-1201006

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58910-1201003

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-1208003

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58951-1208006

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58912 - BOX, REAR CONSOLE, NO.2
58912-1201006

AE82..GT..(ARL,SA)

BROWN,BROWN,TRIM4#

 1
58912-1201003

AE82..GT..(ARL,SA)

GRAY,GRAY,TRIM1#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

AE82..GT..(ARL,SA)

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

AE82..GT..(ARL,SA)

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

AE82..GT..(ARL,SA)

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-12030

AE82..GT..(ARL,SA)

 1
58997-12040

CE80;AE82..EUR;EE80..GL..EUR;EE80..DX,STD,XL;AE80..ARL,EUR,SA;AE80..(DX,STD)..(GEN,SAA);AE82..(CS,DX,S,STD,XL)..(ARL,GEN,SA)

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-12030

AE82..GT..(ARL,SA)

 1
58997-12040

CE80;AE82..EUR;EE80..GL..EUR;EE80..DX,STD,XL;AE80..ARL,EUR,SA;AE80..(DX,STD)..(GEN,SAA);AE82..(CS,DX,S,STD,XL)..(ARL,GEN,SA)

 1
Common parts
91661-40612
93567-54512
93567-55014
93567-55016
96160-00500
Linked diagrams
7404
