AE82R-ELMQF (1985)
Toyota Corolla Sed/Lb
Production
May 1985
-
Apr 1987
Engine
4AGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8505-8704)4DS,5D..EUR,GEN,SAA ; (8605- )5D..ARL,SA

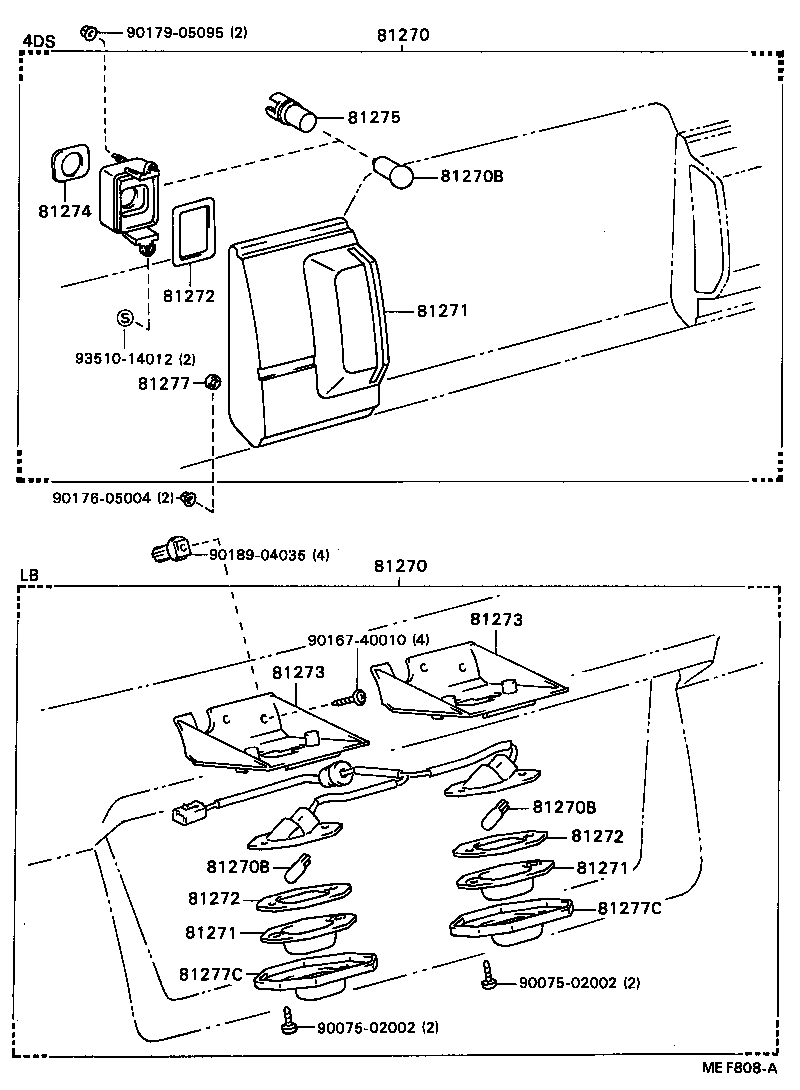

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-80010 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-80010 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
AE8#,CE80 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
AE8#,CE80 12V 10W,12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11100 |
AE8#,CE80 12V 10W,12V 10W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12240 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12240 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-12240 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-12240 |
AE8#,CE80,EE80..4DS,5D |
2 | ||
| Common parts | ||||
| 90075-02002 | ||||
| 90167-40010 | ||||
| 90176-05004 | ||||
| 90179-05095 | ||||
| 90189-04035 | ||||
| 93510-14012 | ||||
