AE82R-ELMNS (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )AE82..5F

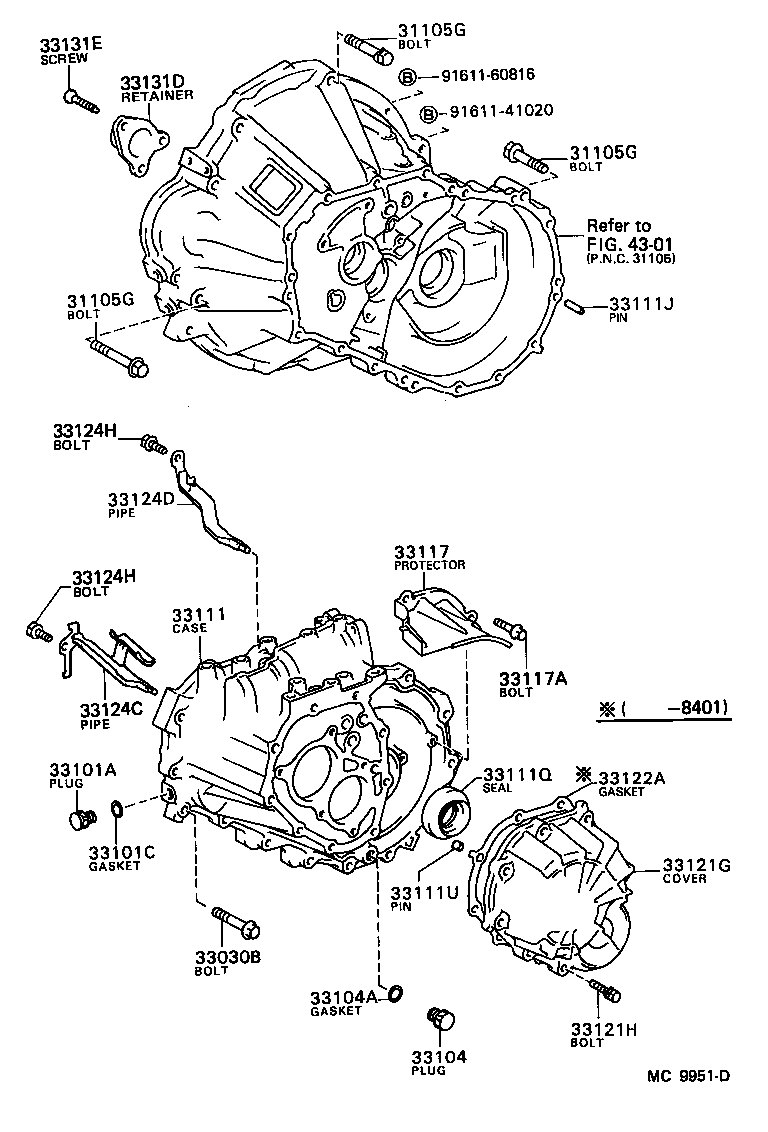

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33121G 33121H 33122A 33124C 33124D 33124H 33124H 33131D 33131E 4301 9161141020 9161160816
Part # Description Qty Price
Common parts
91611-41020
91611-60816
Linked diagrams
4301

(8305- )AE8#..MTM

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101Q 33101R 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33121G 33121G 33121H 33122A 33124C 33124D 33124H 33124H 33131D 33131E 4301 9161160816 9161161020
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12168

AE8#,CE80..MTM

*12-1.25PX55-30,*12-1.25PX55-30

 3
90119-12042

AE8#..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90105-10077

AE8#,CE80..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12168

AE8#,CE80..MTM

*12-1.25PX55-30,*12-1.25PX55-30

 3
90119-12042

AE8#..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90105-10077

AE8#,CE80..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12168

AE8#,CE80..MTM

*12-1.25PX55-30,*12-1.25PX55-30

 3
90119-12042

AE8#..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90105-10077

AE8#,CE80..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

AE8#,EE80..MTM

*8-1.25PX51-28

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AE8#,EE80..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18007

AE8#,CE80..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AE8#,EE80..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

AE8#,CE80..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-12170

AE8#,EE80..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AE8#,CE80,EE80..MTM

L=23,OD=8

 6
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

AE8#,EE80..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AE8#,EE80..MTM

L=11,OD=11

 2
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-12011

AE8#,EE80..MTM..(CS,CSX,DX,GL,S,STD,XL)

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AE8#,CE80,EE80..MTM

 2
33121G - COVER, MANUAL TRANSMISSION CASE
33102-12020

AE8#,EE80..5F

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33102-12020

AE8#,EE80..5F

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

AE8#,EE80..MTM

 9
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
33122-12040

AE8#..MTM

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12010

AE8#,EE80..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12020

AE8#,EE80..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60812

AE8#,EE80..MTM

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60812

AE8#,EE80..MTM

 2
33131D - RETAINER, BEARING, FRONT
33131-12070

AE8#..MTM

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AE8#..MTM

 3
Common parts
91611-60816
91611-61020
Linked diagrams
4301
