AE82R-ELHNS (1983)
Toyota Corolla Sed/Lb
Production
May 1983
-
Apr 1987
Engine
4AL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )2ALC,4AG#,4AL#

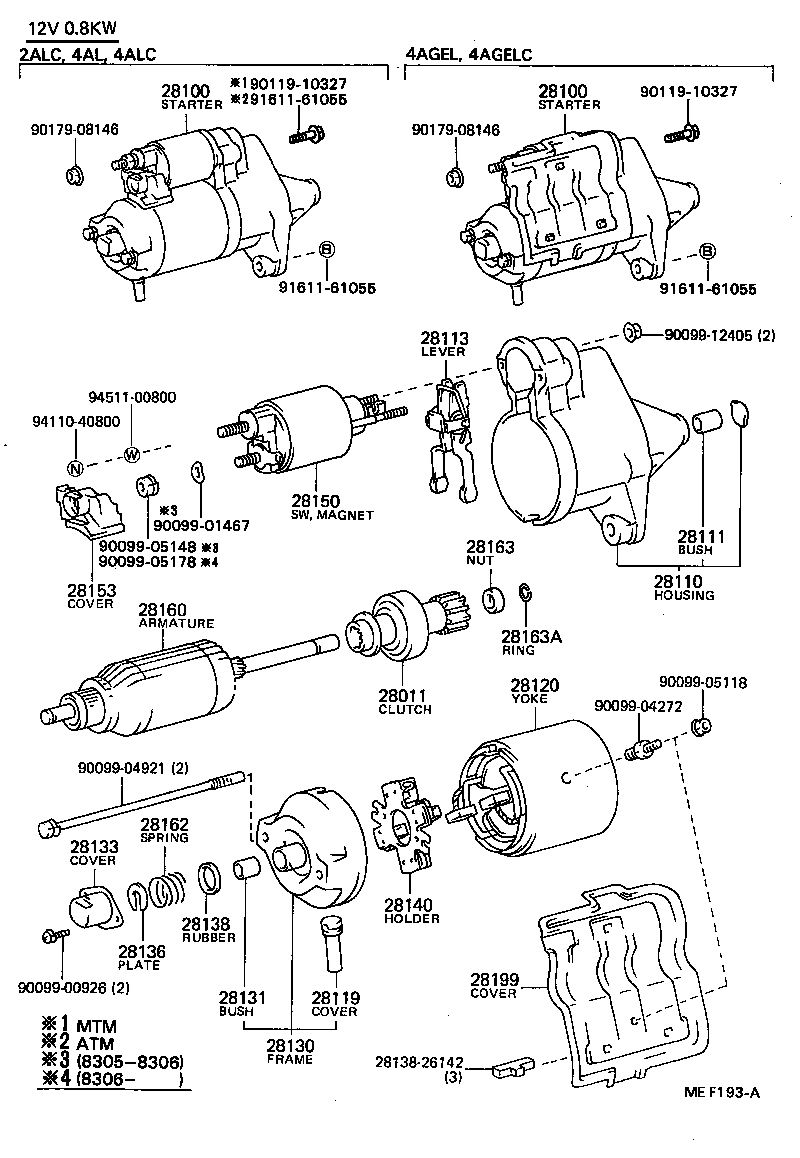

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15060 |
4AL#..AE82 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15060 |
4AL#..AE82 12V 0.8KW,12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-15060 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
2AL,4AL#..AE8# 12V 0.6KW,0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15010 |
4AL,2EL..AE82,EE80;4ALC,2ELC..AE82,EE80..FRG 12V 0.8KW |
1 | ||
| 28120-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
4AL#..AE82 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
2AL,4AL#..AE8# 12V 0.6KW,0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
2AL,4AL#..AE8# 12V 0.6KW,0.8KW |
1 | ||
| Common parts | ||||
| 28138-26142 | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04272 | ||||
| 90099-04921 | ||||
| 90099-05118 | ||||
| 90099-05148 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
