AE82R-EGMQF (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AG#

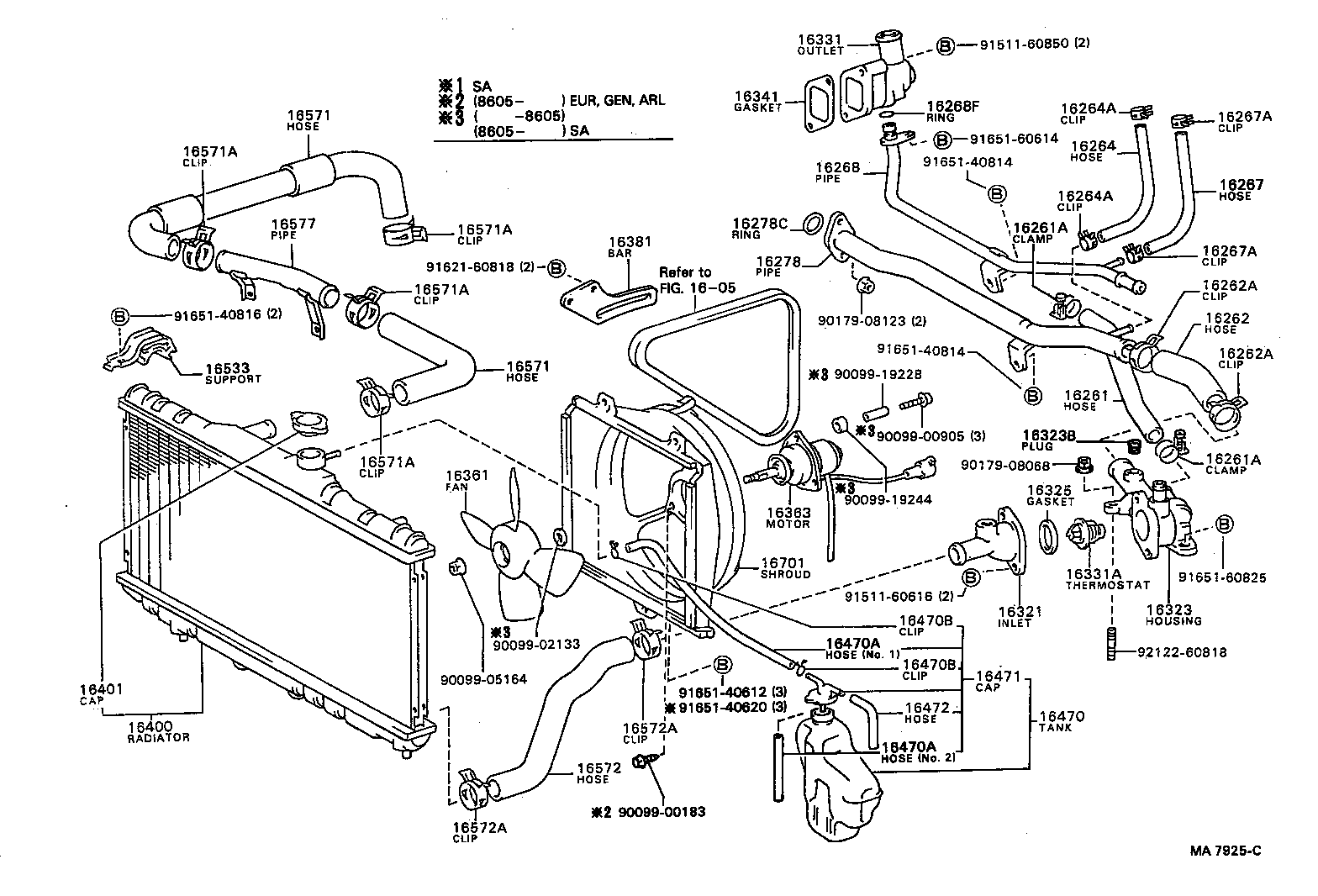

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16268F 16278 16278C 16321 16323 16323B 16325 16331 16331A 16341 16361 16363 16381 16400 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16571 16571 16571A 16571A 16571A 16571A 16572 16572A 16572A 16577 16701 9009900183 9009900905 9009902133 9009905164 9009919228 9009919244 9017908068 9017908123 9151160616 9151160850 9162160818 9165140612 9165140620 9165140814 9165140814 9165140816 9165160614 9165160825 9212260818
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-15010

2AL#,4AG#,4AL#..AE8#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

2AL#,4AG#,4AL#..AE8#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

2AL#,4AG#,4AL#..AE8#

 2
16262 - HOSE, WATER INLET
16262-15010

2AL#,4AG#,4AL#..AE8#

 1
16262A - CLIP(FOR WATER INLET HOSE)
90467-34002

2AL#,4AG#,4AL#..AE8#

 2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34002

2AL#,4AG#,4AL#..AE8#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-15020

4AG#..AE82

NEW ZEALAND SPEC

 1
16268-16030

4AG#..AE82

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96711-24013

2AL#,4AG#,4AL#..AE8#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-16010

4AG#..AE82

 1
16321 - INLET, WATER
16321-15010

2AL#,4AG#,4AL#..AE8#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2AL#,4AG#,4AL#..AE8#

 1
16331A - THERMOSTAT
90916-03046

2AL#,4AG#,4AL#..AE8#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-16010

4AG#..AE82

 1
16361 - FAN
16361-63030

2AL#,4AGEL,4AL#..AE8#

 1
16361-15080

4AGEL..AE82..EUR,GEN

 1
16363 - MOTOR, COOLING FAN
16363-16030

4AGEL..AE82..EUR,GEN

 1
16363-15090

2AL#,4AGEL,4AL#..AE8#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2AL#,4AG#,4AL#..AE8#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-15020

2AL#,4AG#,4AL#..AE8#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2AL#,4AG#,4AL#..AE8#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2AL#,4AG#,4AL#..AE8#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-15030

2AL#,4AG#,4AL#..AE8#

 1
16472 - HOSE, BREATHER
85338-30010

2AL#,4AG#,4AL#..AE8#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34002

2AL#,4AG#,4AL#..AE8#

 4
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34002

2AL#,4AG#,4AL#..AE8#

 4
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34002

2AL#,4AG#,4AL#..AE8#

 4
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34002

2AL#,4AG#,4AL#..AE8#

 4
16572 - HOSE, RADIATOR, OUTLET
16572-15150

2AL#,4AG#,4AL#..AE8#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

2AL#,4AG#,4AL#..AE8#

RADIATOR SIDE

 1
90467-34002

2AL#,4AG#,4AL#..AE8#

WATER INLET SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

2AL#,4AG#,4AL#..AE8#

RADIATOR SIDE

 1
90467-34002

2AL#,4AG#,4AL#..AE8#

WATER INLET SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-15140

2AL#,4AGEL,4AL#..AE8#

 1
16711-15150

4AGEL..AE82..EUR,GEN

 1
Common parts
90099-00183
90099-00905
90099-02133
90099-05164
90099-19228
90099-19244
90179-08068
90179-08123
91511-60616
91511-60850
91621-60818
91651-40612
91651-40620
91651-40814
91651-40816
91651-60614
91651-60825
92122-60818
Linked diagrams
1605
