AE82R-EGMQF (1984)

Toyota Corolla Sed/Lb

Production Oct 1984 - Apr 1987
Engine 4AGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )4AG#

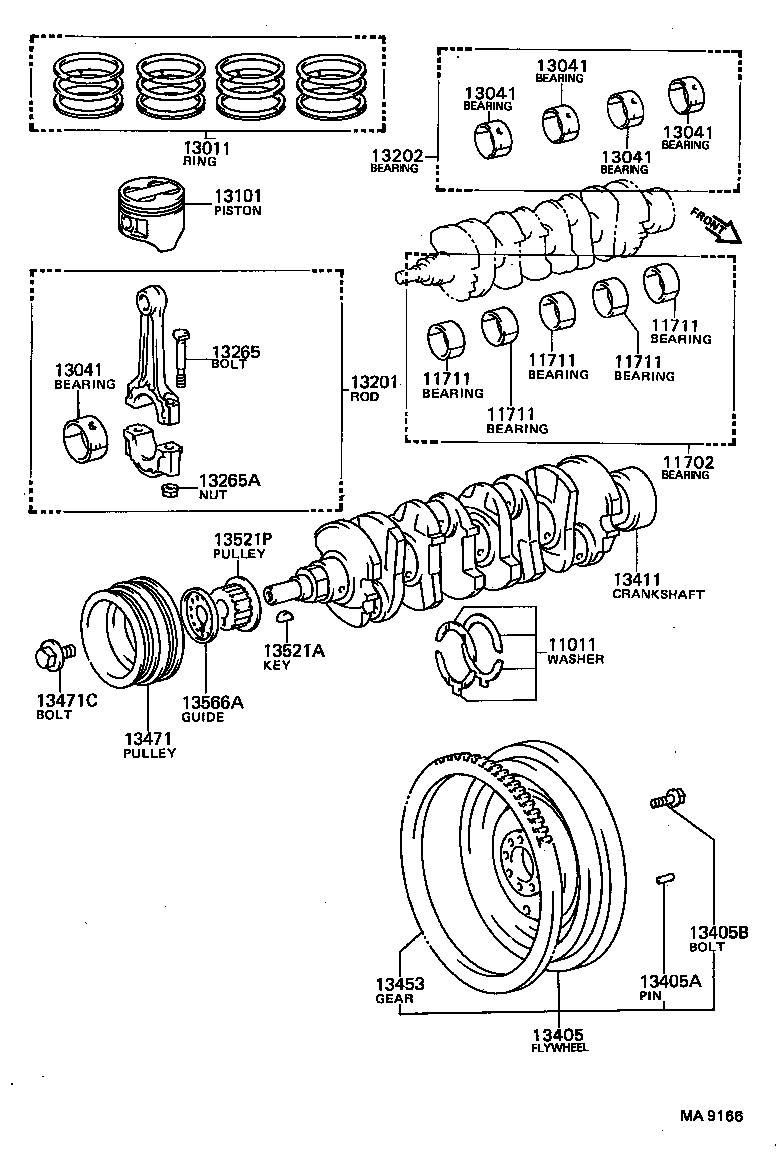

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-15010

2AL#,4AG#,4AL#..AE8#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-15050

2AL#,4AG#,4AL#..AE8#

U/S 0.25,U/S 0.25

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

2AL#,4AG#,4AL#..AE8#..MTM

L=18,OD=8

 3
13453 - GEAR, FLYWHEEL RING
13453-10010

2AL#,4AG#,4AL#..AE8#..MTM

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-12101

2ALC,4AG#,4AL#..AE8#

 1
90105-12012

2AL#,4AG#,4AL#..AE8#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2AL#,4AG#,4AL#..AE8#

 1
13566A - GUIDE, TIMING BELT
13566-15010

2AL#,4AG#,4AL#..AE8#

 1
