AE82R-EEHNCQ (1984)
Toyota Corolla Sed/Lb
(8305- )2AL,4AL#..EUG,SDZ ; (8401-8505)2AL..SAA ; (8402- )4AL..GEN,SA ; (8402
..NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-15050 |
4AGEL,4AL..AE82;2AL,4ALC..AE8#..ARL,EUR |
1 | ||
| 21015-15050 |
4AGEL,4AL..AE82;2AL,4ALC..AE8#..ARL,EUR |
1 | ||
| 21069 - DASH POT SUB-ASSY | ||||
| 21069-15290 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL |
1 | ||
| 21069-15290 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-14130 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21112-14130 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21112-14131 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21112-14131 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21192 - BREAKER | ||||
| 21192-14130 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21192-14130 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-31430 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21205-31430 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21205-27040 |
2AL,4AL#..AE8# |
1 | ||
| 21205-27040 |
2AL,4AL#..AE8# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-15020 |
2AL#,4AL#..AE8# |
1 | ||
| 21209-15020 |
2AL#,4AL#..AE8# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21249-13090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21249-13090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41099 |
2AL,4AL..AE8# ID=0.99 |
1 | ||
| 90999-41099 |
2AL,4AL..AE8# ID=0.99 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
2AL,4AL..AE8# ID=1.50 |
1 | ||
| 90999-42150 |
2AL,4AL..AE8# ID=1.50 |
1 | ||
| 90999-42153 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL ID=1.53 |
1 | ||
| 90999-42153 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL ID=1.53 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43047 |
2ALC,4ALC..AE8#..ARL ID=0.47 |
1 | ||
| 90999-43047 |
2ALC,4ALC..AE8#..ARL ID=0.47 |
1 | ||
| 90999-43080 |
2AL,4AL..AE8# ID=0.80 |
1 | ||
| 90999-43080 |
2AL,4AL..AE8# ID=0.80 |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21864-26020 |
2AL#,4AL#..AE8# |
1 | ||
| 21864-26020 |
2AL#,4AL#..AE8# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-25180 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21828-25180 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21273-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2AL#,4AL#..AE8# |
1 | ||
| 21291-34320 |
2AL#,4AL#..AE8# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-15160 |
2AL#,4AL#..AE8# |
1 | ||
| 21301-15160 |
2AL#,4AL#..AE8# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2AL#,4AL#..AE8# |
1 | ||
| 21313-11020 |
2AL#,4AL#..AE8# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21304-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21351-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
2AL#,4AL#..AE8# |
1 | ||
| 21353-33010 |
2AL#,4AL#..AE8# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-15050 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21054-15050 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2AL#,4AL#..AE8# |
1 | ||
| 21538-31010 |
2AL#,4AL#..AE8# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2AL#,4AL#..AE8# |
1 | ||
| 21618-14010 |
2AL#,4AL#..AE8# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-15330 |
2AL,4AL#..AE8# |
1 | ||
| 21622-15330 |
2AL,4AL#..AE8# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-25180 |
2AL#,4AL#..AE8# |
1 | ||
| 21623-25180 |
2AL#,4AL#..AE8# |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2AL#,4AL#..AE8# |
1 | ||
| 21655-60200 |
2AL#,4AL#..AE8# |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21627-28090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21649-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
2AL#,4AL#..AE8# |
1 | ||
| 21641-33011 |
2AL#,4AL#..AE8# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21667-38310 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-15320 |
2AL#,4AL#..AE8# |
1 | ||
| 21669-15320 |
2AL#,4AL#..AE8# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2AL#,4AL#..AE8# |
1 | ||
| 21699-28150 |
2AL#,4AL#..AE8# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2AL#,4AL#..AE8# |
1 | ||
| 21722-22010 |
2AL#,4AL#..AE8# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ |
1 | ||
| 21723-21030 |
2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21723-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
4ALC..AE82..SDZ;2AL#,4AL#..AE8#..ARL,GEN,SA,SAA |
1 | ||
| 21723-21030 |
4ALC..AE82..SDZ;2AL#,4AL#..AE8#..ARL,GEN,SA,SAA |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21756-25181 |
2AL#,4AL#..AE8# |
1 | ||
| 21756-25181 |
2AL#,4AL#..AE8# |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-22010 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21734-22010 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15270 |
2AL#,4AL#..AE8# |
1 | ||
| 21735-15270 |
2AL#,4AL#..AE8# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-15081 |
2AL#,4AL#..AE8# |
1 | ||
| 21894-15081 |
2AL#,4AL#..AE8# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15080 |
2AL#,4AL#..AE8# |
1 | ||
| 21756-15080 |
2AL#,4AL#..AE8# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-26350 |
2AL#,4AL#..AE8# |
1 | ||
| 21763-26350 |
2AL#,4AL#..AE8# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2AL#,4AL#..AE8# |
1 | ||
| 21811-11060 |
2AL#,4AL#..AE8# |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2AL#,4AL#..AE8# |
1 | ||
| 21826-31012 |
2AL#,4AL#..AE8# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21845-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2AL#,4AL#..AE8# |
1 | ||
| 21821-15060 |
2AL#,4AL#..AE8# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21833-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
3 | ||
| 21821-25010 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21842-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21852-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21865 - SPRING | ||||
| 21865-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21865-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2AL#,4AL#..AE8# |
1 | ||
| 21881-60010 |
2AL#,4AL#..AE8# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21831-38010 | ||||
| 21832-15320 | ||||
| 21832-38010 | ||||
| 21844-26350 | ||||
| 21845-38010 | ||||
| 21864-45100 | ||||
| 21887-38010 | ||||
| 90507-12005 | ||||
| 91111-40618 | ||||
| 93319-13012 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 94612-10500 | ||||
| 95411-19930 | ||||

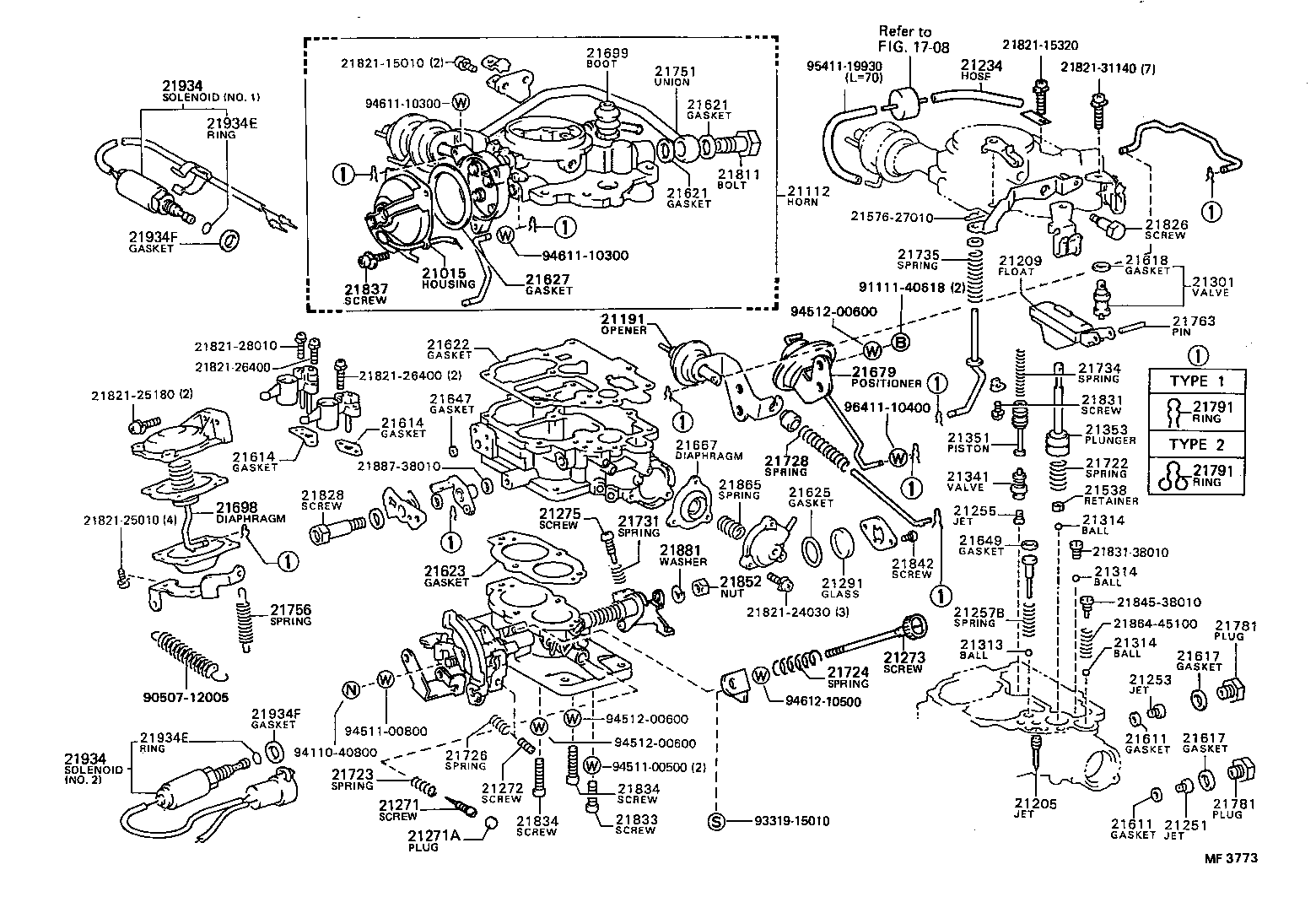

| Linked diagrams | ||||
| 1708 | ||||
(8504-8505)4ALC ; (8508- )4ALC..FRG
(8504-8505)FRG SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21112-14130 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21112-14131 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-31430 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21205-27040 |
2AL,4AL#..AE8# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-15020 |
2AL#,4AL#..AE8# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21249-13090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41099 |
2AL,4AL..AE8# ID=0.99 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
2AL,4AL..AE8# ID=1.50 |
1 | ||
| 90999-42153 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL ID=1.53 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43047 |
2ALC,4ALC..AE8#..ARL ID=0.47 |
1 | ||
| 90999-43080 |
2AL,4AL..AE8# ID=0.80 |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21864-26020 |
2AL#,4AL#..AE8# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-25180 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2AL#,4AL#..AE8# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-15160 |
2AL#,4AL#..AE8# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2AL#,4AL#..AE8# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
2AL#,4AL#..AE8# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2AL#,4AL#..AE8# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2AL#,4AL#..AE8# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-15330 |
2AL,4AL#..AE8# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-25180 |
2AL#,4AL#..AE8# |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2AL#,4AL#..AE8# |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
2AL#,4AL#..AE8# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-15320 |
2AL#,4AL#..AE8# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2AL#,4AL#..AE8# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2AL#,4AL#..AE8# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
4ALC..AE82..SDZ;2AL#,4AL#..AE8#..ARL,GEN,SA,SAA |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21756-25181 |
2AL#,4AL#..AE8# |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-22010 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15270 |
2AL#,4AL#..AE8# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-15081 |
2AL#,4AL#..AE8# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15080 |
2AL#,4AL#..AE8# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-26350 |
2AL#,4AL#..AE8# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2AL#,4AL#..AE8# |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2AL#,4AL#..AE8# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2AL#,4AL#..AE8# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21865 - SPRING | ||||
| 21865-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2AL#,4AL#..AE8# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21821-38310 | ||||
| 21831-38010 | ||||
| 21845-38010 | ||||
| 21864-45100 | ||||
| 21869-16120 | ||||
| 21887-38010 | ||||
| 91111-40618 | ||||
| 93119-13012 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94612-10500 | ||||
| 95411-19930 | ||||
| 96411-10400 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8401 | ||||
(8511- )2ALC,4ALC..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-15050 |
4AGEL,4AL..AE82;2AL,4ALC..AE8#..ARL,EUR |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-14130 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21112-14131 |
4ALC..AE82..ARL;4ALC..AE82..SDZ;4AL..AE82..EUR,GEN |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-31430 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21205-27040 |
2AL,4AL#..AE8# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-15020 |
2AL#,4AL#..AE8# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21249-13090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41099 |
2AL,4AL..AE8# ID=0.99 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
2AL,4AL..AE8# ID=1.50 |
1 | ||
| 90999-42153 |
4ALC..AE82..SDZ;2ALC,4ALC..AE8#..ARL ID=1.53 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43047 |
2ALC,4ALC..AE8#..ARL ID=0.47 |
1 | ||
| 90999-43080 |
2AL,4AL..AE8# ID=0.80 |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21864-26020 |
2AL#,4AL#..AE8# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-25180 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2AL#,4AL#..AE8# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-15160 |
2AL#,4AL#..AE8# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2AL#,4AL#..AE8# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AL#,4AL#..AE8# |
3 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
2AL#,4AL#..AE8# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2AL#,4AL#..AE8# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AL#,4AL#..AE8# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
2AL#,4AL#..AE8# 1ST |
1 | ||
| 21614-33080 |
2AL#,4AL#..AE8# 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AL#,4AL#..AE8# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2AL#,4AL#..AE8# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AL#,4AL#..AE8# |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-15330 |
2AL,4AL#..AE8# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-25180 |
2AL#,4AL#..AE8# |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2AL#,4AL#..AE8# |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28090 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
2AL#,4AL#..AE8# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
2AL#,4AL#..AE8# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-15320 |
2AL#,4AL#..AE8# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2AL#,4AL#..AE8# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2AL#,4AL#..AE8# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2AL#,4AL..AE8#;4ALC..AE82..ARL;4ALC..AE82..SDZ |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-14130 |
2AL#,4AL#..AE8# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
4ALC..AE82..SDZ;2AL#,4AL#..AE8#..ARL,GEN,SA,SAA |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21756-25181 |
2AL#,4AL#..AE8# |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-22010 |
2ALC,4ALC..AE8#..ARL |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15270 |
2AL#,4AL#..AE8# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-15081 |
2AL#,4AL#..AE8# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15080 |
2AL#,4AL#..AE8# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-26350 |
2AL#,4AL#..AE8# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2AL#,4AL#..AE8# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2AL#,4AL#..AE8# TYPE 1 |
8 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2AL#,4AL#..AE8# |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2AL#,4AL#..AE8# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2AL#,4AL#..AE8# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AL#,4AL#..AE8# |
1 | ||
| 21834-31140 |
2AL#,4AL#..AE8# W/HOLE |
1 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2AL#,4AL#..AE8# |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2AL#,4AL#..AE8# |
1 | ||
| 21865 - SPRING | ||||
| 21865-15230 |
4AL..AE82;2AL,4ALC..AE8#..EUR |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2AL#,4AL#..AE8# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-14130 |
2AL,4AL#..AE8# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AL#,4AL#..AE8# |
2 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
2AL#,4AL#..AE8# |
1 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21831-38010 | ||||
| 21845-38010 | ||||
| 21864-45100 | ||||
| 21887-38010 | ||||
| 90507-12005 | ||||
| 91111-40618 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94612-10500 | ||||
| 95411-19930 | ||||
| 96411-10400 | ||||
| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
