Toyota Corolla sed/lb AE82 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
EU
COROLLA SED/LB
AE82R-EEHDCQ (1984)
8401 - SWITCH & RELAY & COMPUTER

AE82R-EEHDCQ (1984)

Toyota Corolla Sed/Lb

Production Nov 1984 - Jul 1988

Engine 4ALC

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8308-8508)

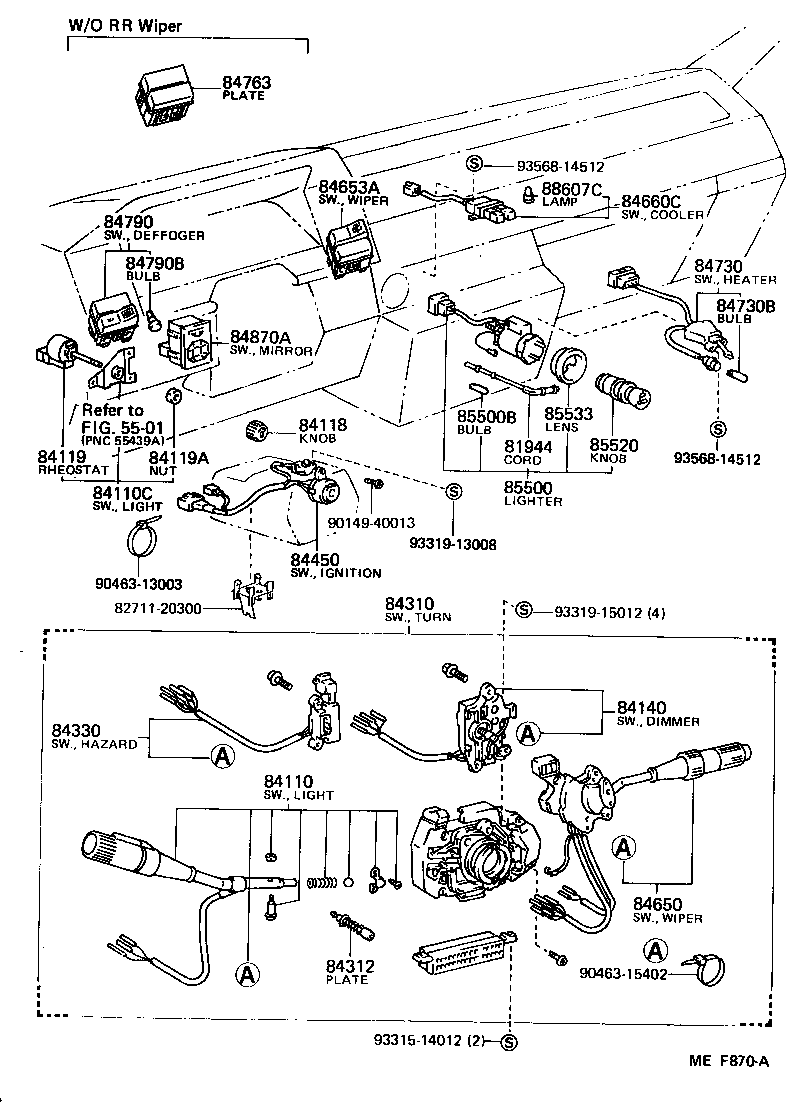

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-20300
90149-40013
90463-13003
90463-15402
93315-14012
93319-13008
93319-15012
93568-14512
Linked diagrams
5501

(8508- )

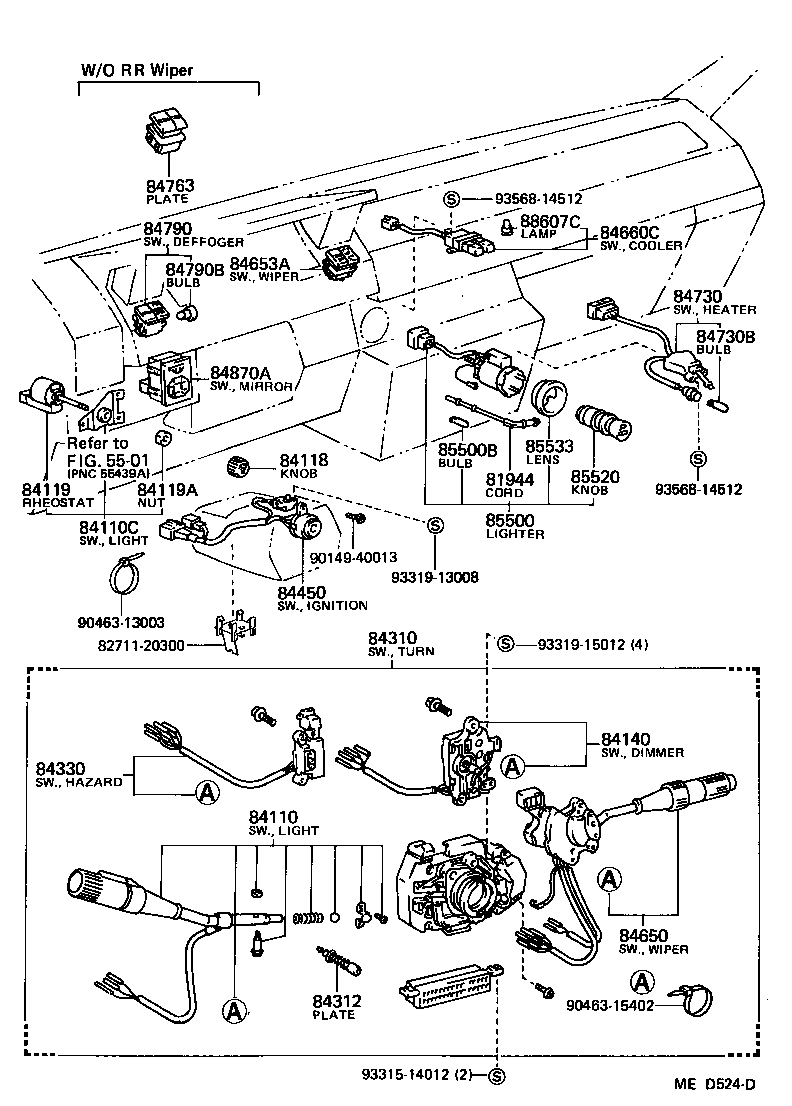

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-20300
90149-40013
90463-13003
90463-15402
93315-14012
93319-13008
93319-15012
93568-14512
Linked diagrams
5501

(8305-8505) ; (8505-8605)ARL,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
81944 - CORD, OPTICAL FIBER
81944-12010	AE8#,CE80,EE80	05/1983 - 07/1988	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19485	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84112-19515	AE8#..S W/*IW	03/1986 - 07/1988	1
84112-19515	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12090	AE8#..ARL	11/1985 - 07/1988	1
84119-20060	AE8#..ARL	11/1984 - 11/1985	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12090	AE8#..ARL	11/1985 - 07/1988	1
84119-20060	AE8#..ARL	11/1984 - 11/1985	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19225	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84140-19255	AE8#..S W/*IW	03/1986 - 07/1988	1
84140-19255	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-12560	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84310-12650	AE8#..S W/*IW	03/1986 - 07/1988	1
84310-12650	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84312 - PLATE, HORN CONTACT
84312-32010	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84312-32020	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84312-32020	AE8#..S W/*IW	03/1986 - 07/1988	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19195	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84332-19225	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84332-19225	AE8#..S W/*IW	03/1986 - 07/1988	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-17030	AE8#,CE80,EE80	10/1986 - 07/1988	1
84450-12120	AE8#,CE80,EE80	05/1983 - 10/1986	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-80010	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84652-80001	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84652-80010	AE8#..S W/*IW	03/1986 - 07/1988	1
84660C - SWITCH, COOLER
84660-12050	AE8#,CE80,EE80..RHD..(ARL,GEN,SA)	05/1983 - 07/1988	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12110	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL 14V 1.4W,12V 1.4W	11/1984 - 07/1988	1
84763 - PLATE, SWITCH
84763-12030	AE8#..4DS..ARL	11/1984 - 05/1986	2
84763-12040	AE82..4DS..ARL	05/1986 - 07/1988	2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA)	05/1986 - 07/1988	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA)	05/1986 - 07/1988	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA) 12V 1.12W,12V 1.12W	05/1986 - 07/1988	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12180	AE8#,CE80	05/1983 - 11/1983	1
85500-12181	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
85500B - BULB, CIGARETTE LIGHTER
90981-11014	AE8#,CE80,EE80 14V 1.4W,12V 1.4W	05/1983 - 07/1988	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20011	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	2
Common parts
82711-20300
90149-40013
90463-15402
93315-14012
93319-15012
93568-14512

(8505-8707)EUR,GEN,SAA ; (8605- )ARL,SA

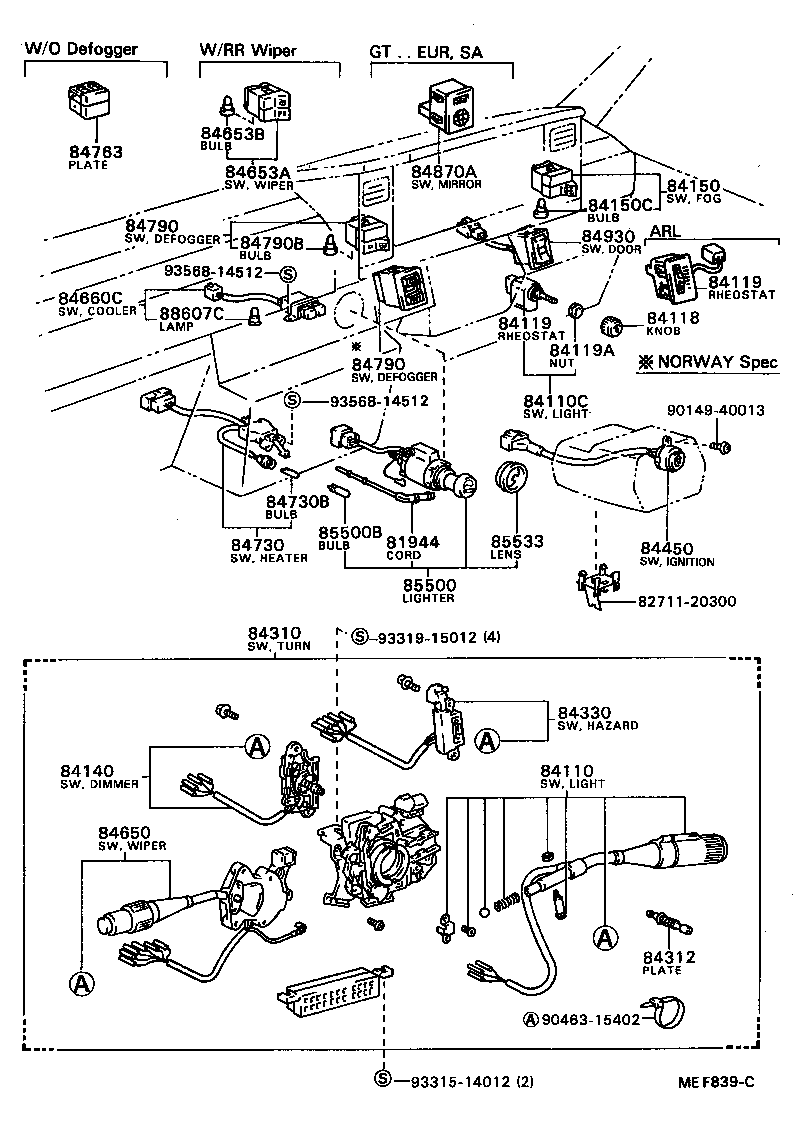

Click highlighted areas on diagram

Part #	Description	Period	Qty
81944 - CORD, OPTICAL FIBER
81944-12010	AE8#,CE80,EE80	05/1983 - 07/1988	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19485	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84112-19515	AE8#..S W/*IW	03/1986 - 07/1988	1
84112-19515	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12090	AE8#..ARL	11/1985 - 07/1988	1
84119-20060	AE8#..ARL	11/1984 - 11/1985	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12090	AE8#..ARL	11/1985 - 07/1988	1
84119-20060	AE8#..ARL	11/1984 - 11/1985	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19225	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84140-19255	AE8#..S W/*IW	03/1986 - 07/1988	1
84140-19255	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-12560	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84310-12650	AE8#..S W/*IW	03/1986 - 07/1988	1
84310-12650	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84312 - PLATE, HORN CONTACT
84312-32010	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84312-32020	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84312-32020	AE8#..S W/*IW	03/1986 - 07/1988	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19195	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84332-19225	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84332-19225	AE8#..S W/*IW	03/1986 - 07/1988	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-17030	AE8#,CE80,EE80	10/1986 - 07/1988	1
84450-12120	AE8#,CE80,EE80	05/1983 - 10/1986	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-80010	AE8#,CE80,EE80..RHD..(CS,CSX,DX,GL,GT,XL)..(ARL,EUR,GEN) W/*IW	05/1983 - 07/1988	1
84652-80001	AE8#,CE80,EE80..RHD..(DX,S,STD,XL)	05/1983 - 03/1986	1
84652-80010	AE8#..S W/*IW	03/1986 - 07/1988	1
84660C - SWITCH, COOLER
84660-12050	AE8#,CE80,EE80..RHD..(ARL,GEN,SA)	05/1983 - 07/1988	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12110	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL 14V 1.4W,12V 1.4W	11/1984 - 07/1988	1
84763 - PLATE, SWITCH
84763-12030	AE8#..4DS..ARL	11/1984 - 05/1986	2
84763-12040	AE82..4DS..ARL	05/1986 - 07/1988	2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA)	05/1986 - 07/1988	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA)	05/1986 - 07/1988	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170	EE80..5DS..SA;AE8#,EE80..(CS,CSX,DX,GL,GT,S,SE)..(ARL,SA) 12V 1.12W,12V 1.12W	05/1986 - 07/1988	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12180	AE8#,CE80	05/1983 - 11/1983	1
85500-12181	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
85500B - BULB, CIGARETTE LIGHTER
90981-11014	AE8#,CE80,EE80 14V 1.4W,12V 1.4W	05/1983 - 07/1988	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20011	AE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL	11/1984 - 07/1988	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-12010	AE8#,CE80,EE80..ARL,GEN,SA,SAA	05/1983 - 07/1988	2
Common parts
82711-20300
90149-40013
90463-15402
93315-14012
93319-15012
93568-14512
