AE82L-ELMNSW (1983)
Toyota Corolla Sed/Lb
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
(8308- )AE82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06115 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90929-01083 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5501 | ||||

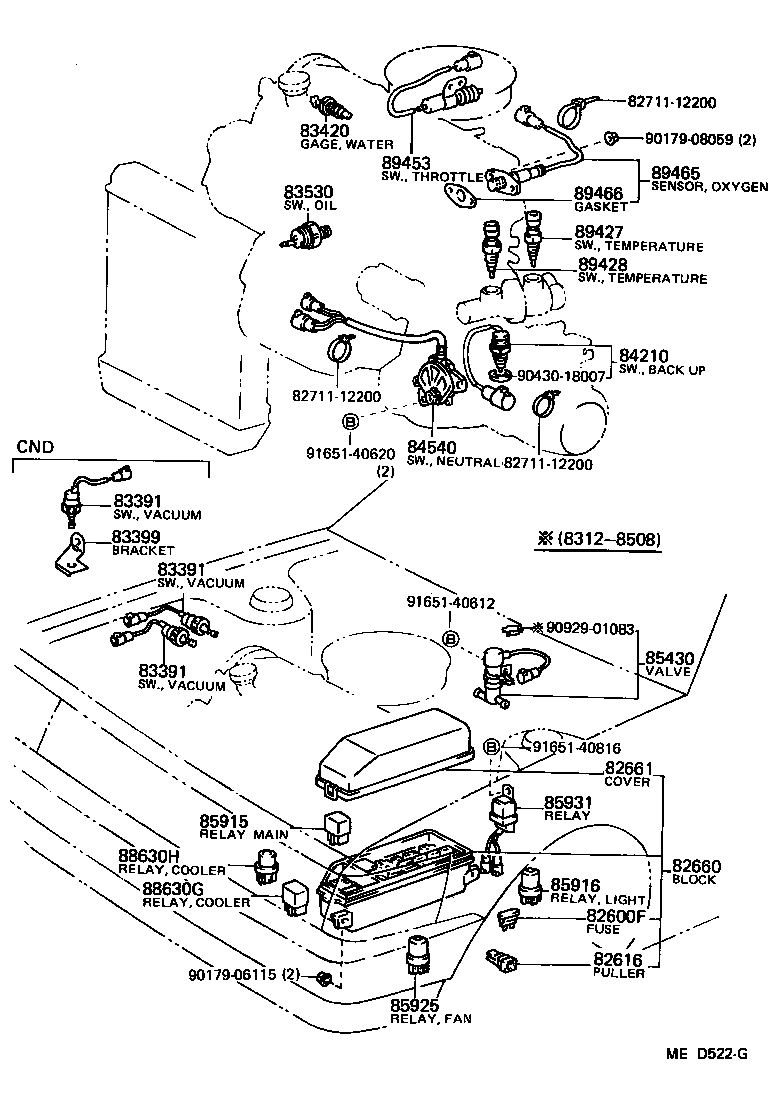

(8305- )AE8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE8#,CE80,EE80 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE8#,CE80,EE80 15A,15A |
11 | ||
| 90982-09002 |
AE8#,CE80,EE80 10A,10A |
12 | ||
| 90982-09004 |
AE8#,CE80,EE80 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE8#,CE80,EE80 7.5A,7.5A |
7 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE8#,CE80,EE80 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12150 |
AE8#,CE80 |
1 | ||
| 82660-12170 |
AE8#,CE80..LHD..(DX,GL)..EUG *FRG |
1 | ||
| 82660-12150 |
AE8#,CE80..EUR,SA |
1 | ||
| 82660-12171 |
AE8#,CE80,EE80..LHD..(DX,GL,GT)..EUG *FRG |
1 | ||
| 82660-12171 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12070 |
AE8#,CE80..EUR,SA ENGINE ROOM |
1 | ||
| 82661-12070 |
AE8#,CE80 ENGINE ROOM |
1 | ||
| 82661-12080 |
AE8#,CE80..LHD..(DX,GL)..EUG ENGINE ROOM,*FRG |
1 | ||
| 82661-12100 |
AE8#,CE80,EE80..LHD COWL SIDE |
1 | ||
| 82661-12081 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 82661-12081 |
AE8#,CE80,EE80..LHD..(DX,GL,GT)..EUG ENGINE ROOM,*FRG |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE82..5F..GL..EUG MARK=200B |
1 | ||
| 83391-12160 |
AE8#..CS,CSX,S |
1 | ||
| 83391-16040 |
AE82..5F..GL..EUG MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE82..5F..GL..EUG MARK=200B |
1 | ||
| 83391-12160 |
AE8#..CS,CSX,S |
1 | ||
| 83391-16040 |
AE82..5F..GL..EUG MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE82..5F..GL..EUG MARK=200B |
1 | ||
| 83391-12160 |
AE8#..CS,CSX,S |
1 | ||
| 83391-16040 |
AE82..5F..GL..EUG MARK=80M |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE8#,CE80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AE8#,EE80 |
1 | ||
| 83530-14040 |
AE8#,EE80 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
AE8#,CE80,EE80..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-12070 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 90925-09005 |
AE82..(GL,STD,XL)..GEN;AE82..(DX,GL)..(EUG,SDZ) |
1 | ||
| 85430-12081 |
AE8# |
1 | ||
| 85430-12081 |
AE8#..(DX,GL,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-12070 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 90925-09005 |
AE82..(GL,STD,XL)..GEN;AE82..(DX,GL)..(EUG,SDZ) |
1 | ||
| 85430-12081 |
AE8# |
1 | ||
| 85430-12081 |
AE8#..(DX,GL,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 85430A - HOSE | ||||
| 23829-14010 |
AE8# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
AE8#,CE80,EE80 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE8#,CE80,EE80 TAIL & HEAD |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE8#,CE80,EE80 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
AE8#,CE80,EE80..LHD..(DX,GL,GT)..EUG *FRG |
1 | ||
| 85926-30020 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-16010 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE82..LHD..5F..EUG FRENCH TERRITORY SPEC |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE82..LHD..5F..EUG FRENCH TERRITORY SPEC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12070 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE8# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29075 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| Common parts | ||||
| 23841-14020 | ||||
| 82696-20010 | ||||
| 82711-12200 | ||||
| 87263-12220 | ||||
| 90119-06053 | ||||
| 90119-06067 | ||||
| 90119-06157 | ||||
| 90159-50208 | ||||
| 90179-06115 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90929-01083 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
(8305-8505) ; (8505-8605)ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-12010 |
AE8#,CE80,EE80 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19525 |
AE8#,CE80,EE80..LHD |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-12160 |
AE82,CE80..EUR,GEN |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12070 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12070 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01007 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19265 |
AE8#,CE80,EE80..LHD |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-12050 |
AE82,CE80,EE80..(DX,GL,STD)..EUR W/O RR WIPER |
1 | ||
| 84160-12040 |
AE8#,CE80,EE80..(DX,GL,STD)..EUR W/O RR WIPER |
1 | ||
| 84150C - BULB, FOG LAMP SWITCH | ||||
| 84999-10170 |
AE8#,CE80,EE80..(DX,GL,STD)..EUR 12V 1.12W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12680 |
AE8#,CE80,EE80..LHD..(DX,GL,GT,XL) W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AE8#,CE80,EE80..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19235 |
AE8#,CE80,EE80..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12120 |
AE8#,CE80,EE80 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80013 |
AE8#,CE80,EE80..LHD..(DX,GL,GT,XL) W/*IW |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12110 |
AE8#,CE80,EE80..(3DS,5D,5DS)..EUR |
1 | ||
| 84653-12150 |
AE82,CE80,EE80..(3DS,5D,5DS)..EUR |
1 | ||
| 84653B - BULB, REAR WIPER SWITCH | ||||
| 84999-10170 |
AE8#,CE80,EE80..(3DS,5D,5DS)..EUR 12V 1.12W,12V 1.12W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12060 |
AE82..5F..(DX,GL)..(EUG,FRG) FRENCH TERRITORY SPEC |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12110 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12140 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12140 |
AE8#,CE80,EE80..EUR,GEN,SAA |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE8#,CE80,EE80..EUR,GEN,SAA 12V 1.12W,12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12180 |
AE8#,CE80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE8#,CE80,EE80 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-12010 |
AE82..5F..(DX,GL)..(EUG,FRG) FRENCH TERRITORY SPEC |
2 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93568-14512 | ||||

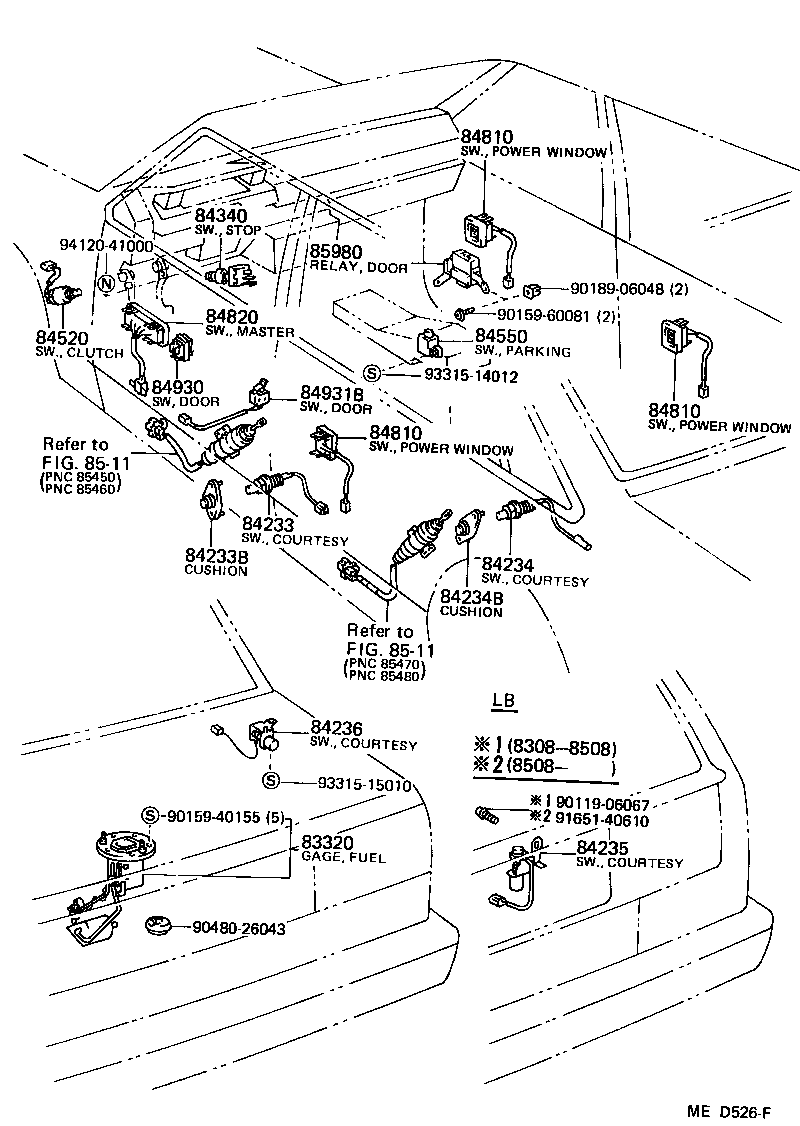

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19705 |
AE8#..(DX,GL)..(EUR,GEN,SAA) |
1 | ||
| 83320-19706 |
AE8#,EE80..(DX,GL,GT,XL)..(EUR,GEN,SAA) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
AE8#,CE80,EE80 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
AE8#,CE80,EE80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
AE8#,CE80,EE80..4DS,5D,5DS |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
AE8#,CE80,EE80..4DS,5D,5DS |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
AE8#,CE80,EE80..5D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AE8#,CE80,EE80..EUR,GEN,SA,SAA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE8#,CE80,EE80 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-40155 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
| 8513 | ||||

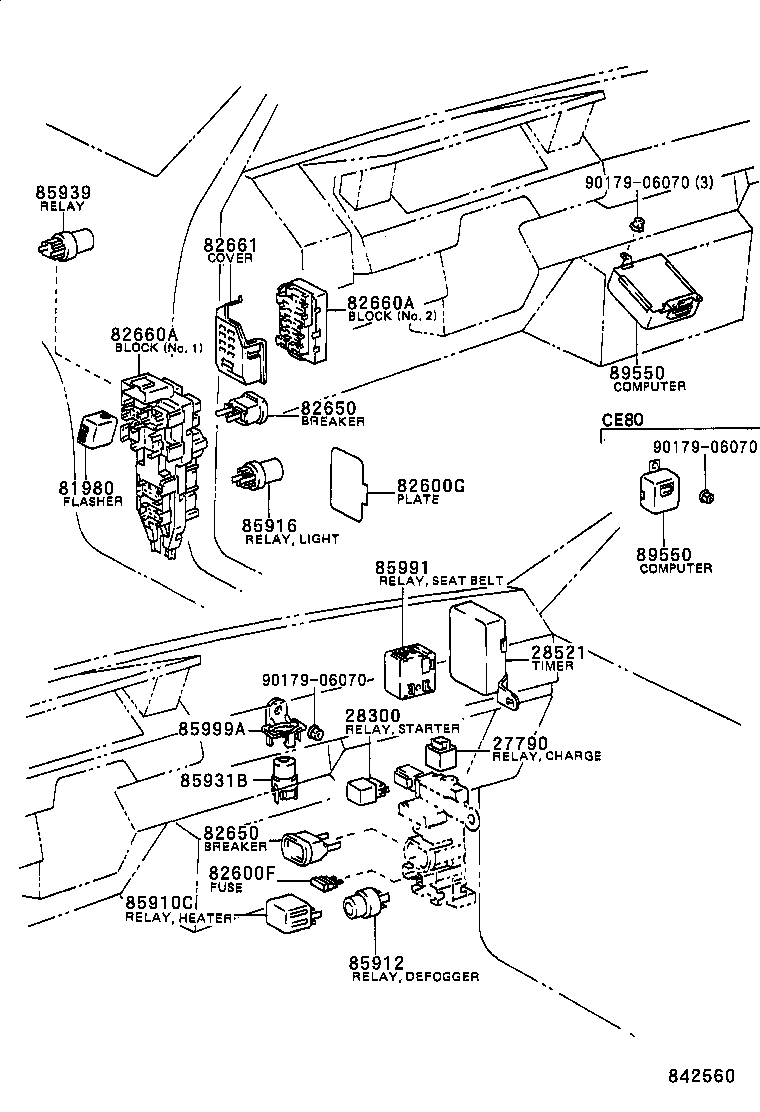

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AE8#,CE80,EE80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE8#,CE80,EE80 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE8#,CE80,EE80 15A,15A |
11 | ||
| 90982-09002 |
AE8#,CE80,EE80 10A,10A |
12 | ||
| 90982-09004 |
AE8#,CE80,EE80 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE8#,CE80,EE80 7.5A,7.5A |
7 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12050 |
AE80,CE80..LHD;AE82..LHD..GL..GEN;EE80..LHD..(3FC,4F);AE82..LHD..(GT,STD,XL);AE82..(DX,GL)..(EUG,SDZ);EE80..LHD..5F..(EUG,SDZ);EE80..LHD..5F..(GEN,SAA) |
1 | ||
| 82683-12060 |
AE8#,CE80,EE80..LHD..(DX,GL,GT)..EUG *FRG |
1 | ||
| 82683-12040 |
AE8#..CS,CSX,S |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-12020 |
AE82,CE80,EE80..LHD..EUG NORWAY SPEC |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-03001 |
AE82,CE80,EE80..LHD..EUG NORWAY SPEC |
1 | ||
| 82642C - RELAY, DAY TIME RUNNING LIGHT, NO.2 | ||||
| 90987-02004 |
AE82,CE80,EE80..LHD..EUG NORWAY SPEC,DENSO |
1 | ||
| 90987-02002 |
AE82,CE80,EE80..LHD..EUG NORWAY SPEC,MARUKO |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE8#,CE80,EE80 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE8#,CE80,EE80 30A,30A |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12210 |
AE8#,CE80,EE80..LHD NO.2 |
1 | ||
| 82660-12130 |
AE8#,CE80 NO.1 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12210 |
AE8#,CE80,EE80..LHD NO.2 |
1 | ||
| 82660-12130 |
AE8#,CE80 NO.1 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12070 |
AE8#,CE80..EUR,SA ENGINE ROOM |
1 | ||
| 82661-12070 |
AE8#,CE80 ENGINE ROOM |
1 | ||
| 82661-12080 |
AE8#,CE80..LHD..(DX,GL)..EUG ENGINE ROOM,*FRG |
1 | ||
| 82661-12100 |
AE8#,CE80,EE80..LHD COWL SIDE |
1 | ||
| 82661-12081 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 82661-12081 |
AE8#,CE80,EE80..LHD..(DX,GL,GT)..EUG ENGINE ROOM,*FRG |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AE8#,CE80,EE80 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AE8#,CE80,EE80..LHD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE8#,CE80,EE80 TAIL & HEAD |
2 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 90987-02004 |
AE82,CE80,EE80..EUR DENSO |
1 | ||
| 90987-01003 |
AE8#,CE80,EE80..LHD..EUR |
1 | ||
| 90987-02002 |
AE82,CE80,EE80..EUR MARUKO |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03001 |
AE8#,CE80,EE80..LHD..EUR |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-12050 |
AE8#,CE80,EE80..LHD..EUR RELAY,RED INDICATOR |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12722 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12722 |
AE82..5F..GL..EUG FRG SPEC |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90119-06067 | ||||
| 90119-08358 | ||||
| 90179-06070 | ||||
| 90183-05103 | ||||
| 93560-55014 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
