AE82L-ELMNSW (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987
Engine 4AL 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4ALC

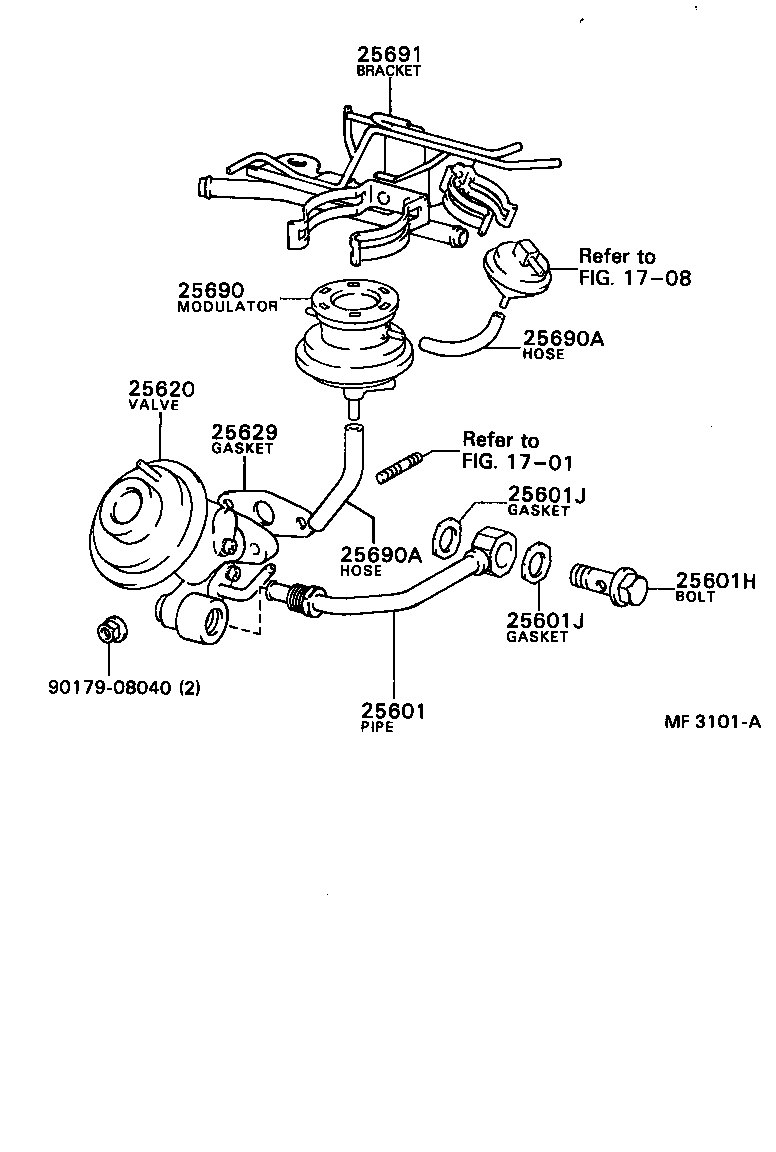

Click highlighted areas on diagram

diagram 1701 25601 25601H 25601J 25620 25629 25690 25690A 25691 9017908040
Part # Description Qty Price
Common parts
90179-08040
Linked diagrams
1701

(8305- )2ALC,4ALC

Click highlighted areas on diagram

diagram 1701 1708 25601 25601H 25601J 25601J 25620 25629 25690 25690A 25690A 25691 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15030

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 2
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11041

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 2
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11041

2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG

 2
Common parts
90179-08040
Linked diagrams
1701
1708
