AE82L-ELMNCC (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )AE82..5F

Click highlighted areas on diagram

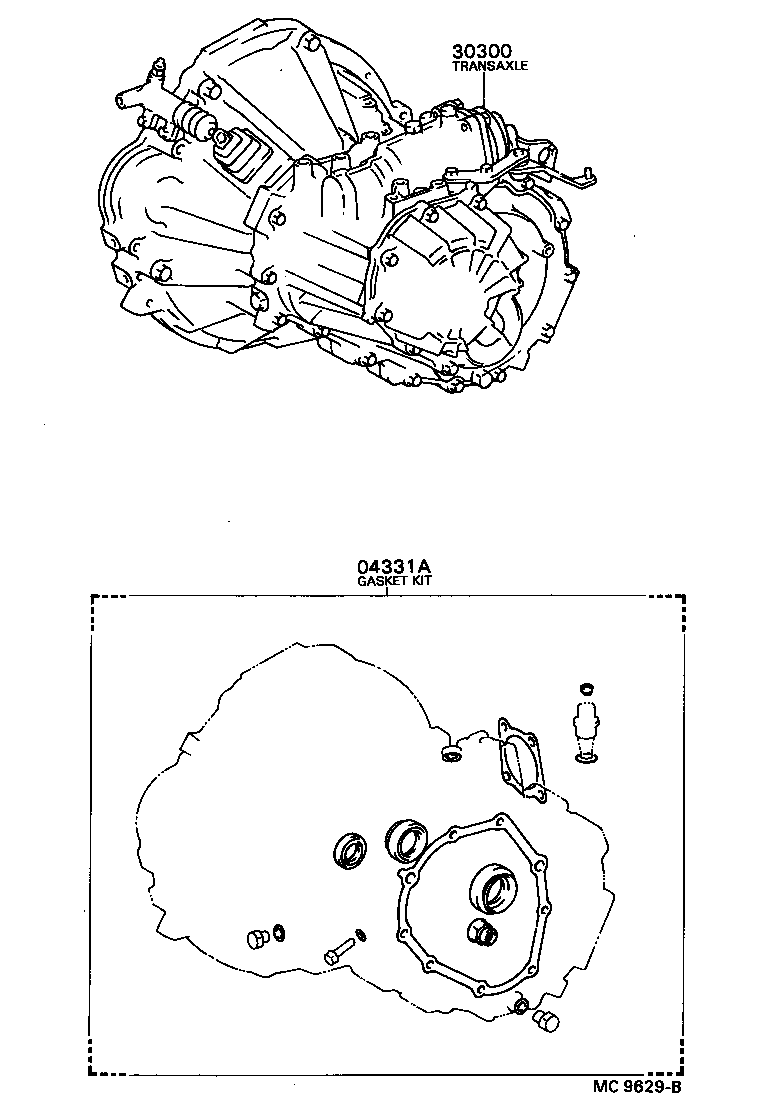

diagram 04331A 30300
Part # Description Qty Price

(8305- )AE8#,EE80..MTM

Click highlighted areas on diagram

diagram 04331A 30300
Part # Description Qty Price
04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM)
04331-12080

AE8#,EE80..MTM

 1
30300 - TRANSAXLE ASSY, MANUAL
30300-12170

AE82..S

 1
30300-12100

AE82..5F..(DX,GL)

*AXC=-572,*FGR=69:17

 1
