AE82L-ELMNCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )AE82

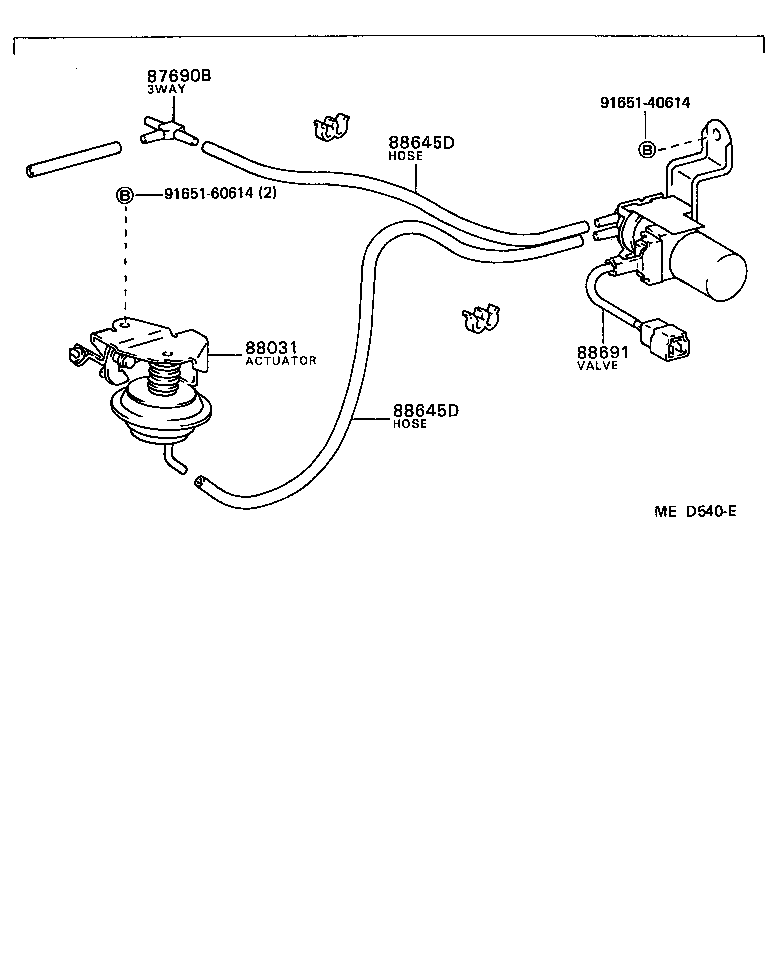

Click highlighted areas on diagram

diagram 87690B 88031 88645D 88645D 88691 9165140614 9165160614
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AE82

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AE82

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

AE82

*H,L=260,MARK=#*

 1
95411-10060

AE82

*H,L=390,MARK=#0

 1
95411-19930

AE82

*H,L=300,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

AE82

*H,L=260,MARK=#*

 1
95411-10060

AE82

*H,L=390,MARK=#0

 1
95411-19930

AE82

*H,L=300,MARK=#*

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12280

AE82,CE80..DX,LE,LEL

 1
Common parts
91651-40614
91651-60614
