AE82L-ELMNCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984
Engine 4ALC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LE,LEL ; (8508- )DX..USA

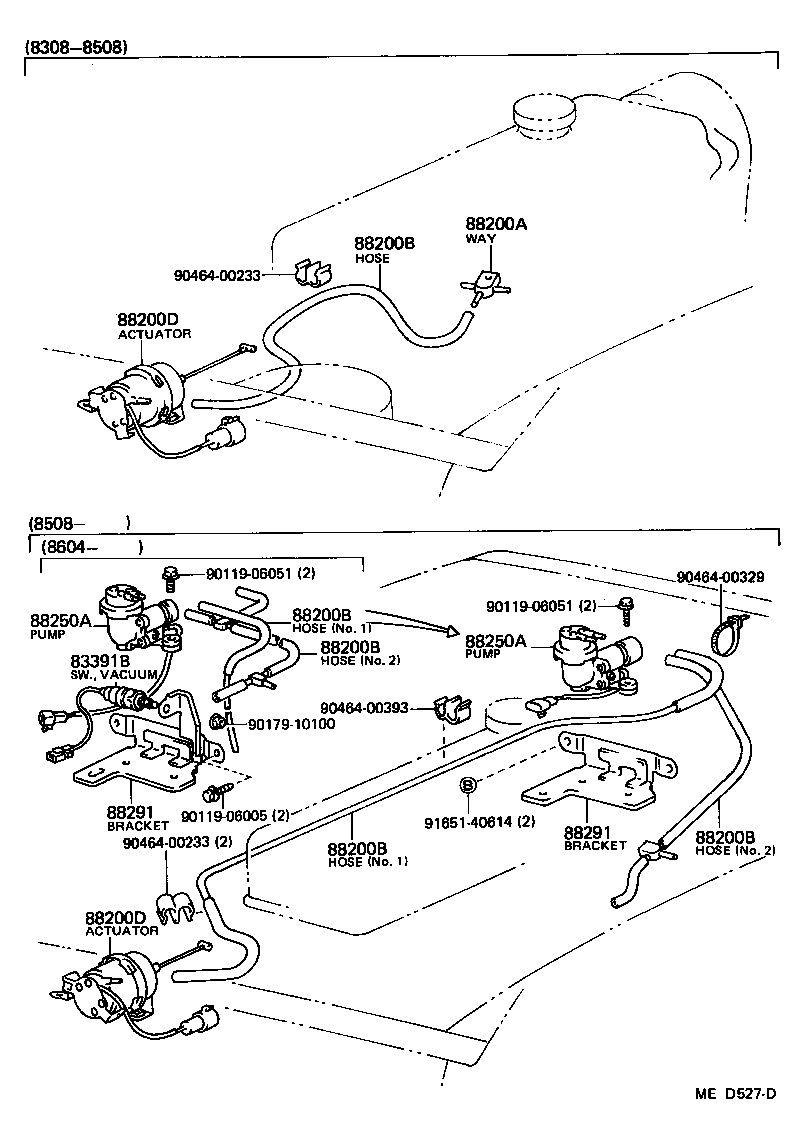

Click highlighted areas on diagram

diagram 83391B 88200A 88200B 88200B 88200B 88200B 88200B 88200D 88200D 88250A 88250A 88291 88291 9011906005 9011906051 9011906051 9017910100 9046400233 9046400233 9046400329 9046400393 9165140614
Part # Description Qty Price
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90413-04005

AE82..LE,LEL

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

AE82..LE,LEL

*H,L=600,MARK=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

AE82..LE,LEL

*H,L=600,MARK=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

AE82..LE,LEL

*H,L=600,MARK=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

AE82..LE,LEL

*H,L=600,MARK=#*

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19995

AE82..LE,LEL

*H,L=600,MARK=#*

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-12030

AE82..LE,LEL

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-12030

AE82..LE,LEL

 1
Common parts
90119-06005
90119-06051
90179-10100
90464-00233
90464-00329
90464-00393
91651-40614

(8308- )LE,LEL ; (8508- )DX..USA

Click highlighted areas on diagram

diagram 84630 88235 88240 9011906053
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-32020

AE82..LE

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-35010

AE82..5F..LE

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-12040

AE82..LE

 1
Common parts
90119-06053
