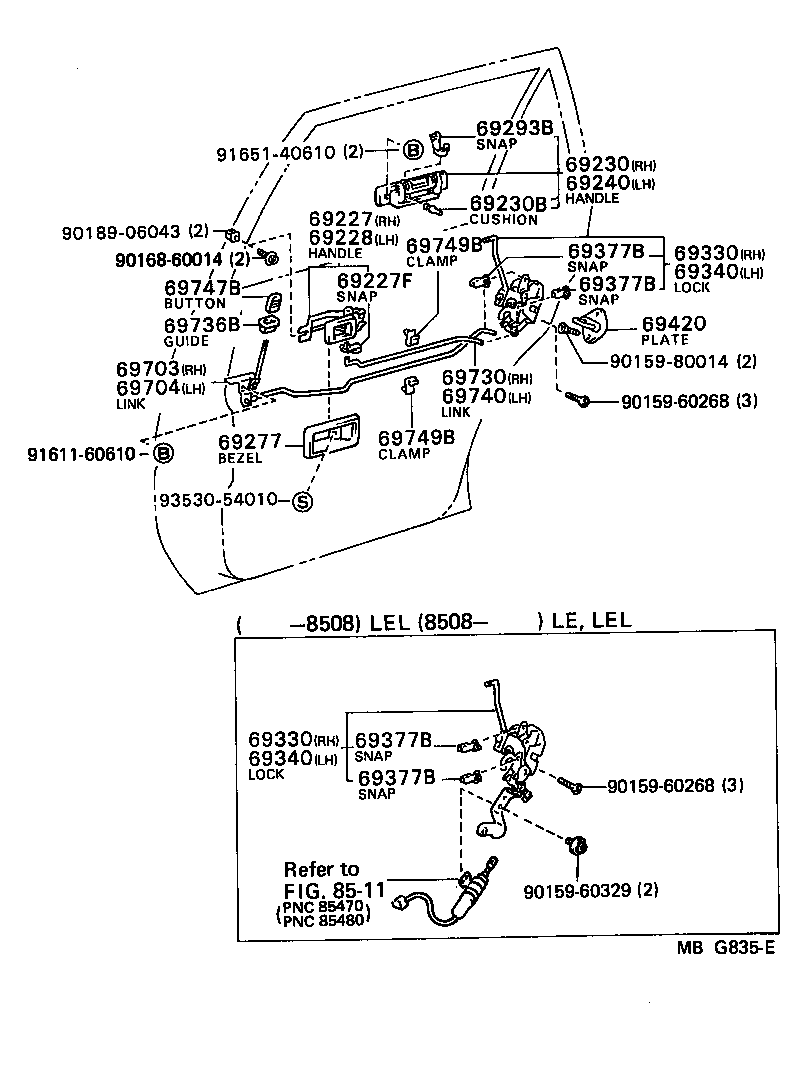

Toyota Corolla sed/lb AE82 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69227 - HANDLE, REAR DOOR INSIDE, RH
69206-1207004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	1
69206-1207003	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	1
69206-1207002	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	1
69206-1207002	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69759-20070	AE82,CE80 RH	08/1983 - 07/1987	1
69759-20060	AE82,CE80 LH	08/1983 - 07/1987	1
69228 - HANDLE, REAR DOOR INSIDE, LH
69205-1207003	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	1
69205-1207004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	1
69205-1207002	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	1
69205-1207002	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-12070	AE82,CE80	08/1983 - 05/1985	1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021	AE82,CE80	08/1983 - 07/1987	4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-12070	AE82,CE80	08/1983 - 05/1985	1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-3202004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	2
69277-3202012	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	2
69277-3202012	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	2
69277-3202033	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	2
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12040	AE82,CE80 RH	08/1983 - 07/1987	1
69293-12030	AE82,CE80 LH	08/1983 - 07/1987	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-12110	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-12110	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-12110	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-12110	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 LH	08/1983 - 07/1987	2
69759-20040	AE82,CE80 RH	08/1983 - 07/1987	2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 LH	08/1983 - 07/1987	2
69759-20040	AE82,CE80 RH	08/1983 - 07/1987	2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 LH	08/1983 - 07/1987	2
69759-20040	AE82,CE80 RH	08/1983 - 07/1987	2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 LH	08/1983 - 07/1987	2
69759-20040	AE82,CE80 RH	08/1983 - 07/1987	2
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001	AE82,CE80	08/1983 - 07/1987	2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-12020	AE82,CE80	08/1983 - 03/1984	1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-12020	AE82,CE80	08/1983 - 03/1984	1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-12030	AE82,CE80	08/1983 - 07/1987	1
69736B - GUIDE, REAR DOOR LOCK LINK
69736-22021	AE82,CE80..DX,LE	08/1983 - 08/1984	2
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-12040	AE82,CE80	08/1983 - 07/1987	1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3201012	AE82,CE80 MAROON,RED/MAROON,TRIM3#	08/1983 - 08/1984	2
69741-3201023	AE82,CE80 GRAY,GRAY,TRIM1#	08/1983 - 05/1985	2
69741-3201004	AE82,CE80 BLUE,BLUE,TRIM8#	08/1983 - 05/1985	2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010	AE82,CE80	08/1983 - 07/1987	6
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010	AE82,CE80	08/1983 - 07/1987	6
Common parts
90159-60268
90159-60329
90159-80014
90168-60014
90189-06043
91611-60610
91651-40610
93530-54010
Linked diagrams
8511

AE82L-ELMNCA (1983)

(8308- )
