Toyota Corolla sed/lb AE82 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
EU
COROLLA SED/LB
AE82L-ELMNCA (1983)
4501 - STEERING COLUMN & SHAFT

AE82L-ELMNCA (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Aug 1984

Engine 4ALC

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8308-8608)DX,STD ; (8608- )DX,LE

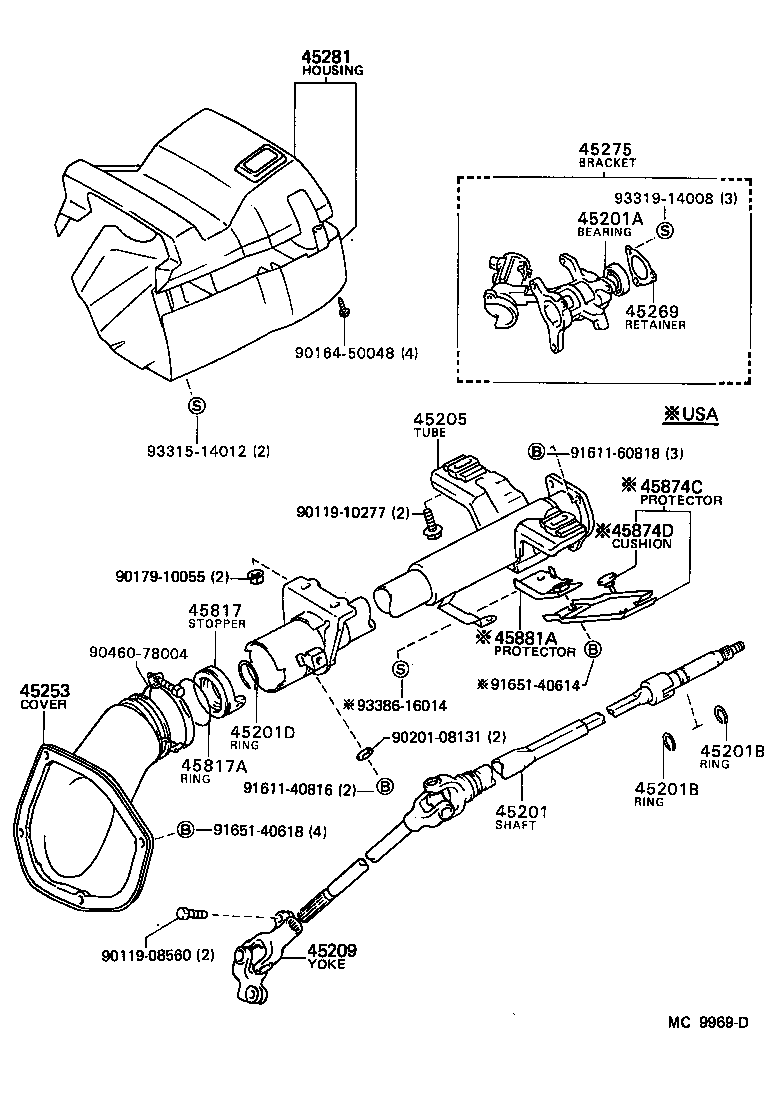

Click highlighted areas on diagram

Part #	Description	Period	Qty
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12210	AE82,CE80	08/1983 - 07/1987	1
45210-12230	AE82,CE80..DX,LE,LEL W/POWER STEERING	08/1983 - 07/1987	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038	AE82,CE80	08/1983 - 07/1987	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	AE82,CE80 T=1.35-1.45,T=1.4	08/1983 - 07/1987	2
90520-17042	AE82,CE80 T=1.20,T=1.2	08/1983 - 07/1987	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	AE82,CE80 T=1.35-1.45,T=1.4	08/1983 - 07/1987	2
90520-17042	AE82,CE80 T=1.20,T=1.2	08/1983 - 07/1987	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	AE82,CE80	08/1983 - 07/1987	1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12210	AE82..LE	08/1983 - 08/1984	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32010	AE82,CE80	08/1983 - 07/1987	1
45209-32020	AE82,CE80..DX,LE,LEL W/POWER STEERING	08/1983 - 07/1987	1
45253 - COVER, STEERING COLUMN HOLE
45025-12160	AE82,CE80	08/1983 - 07/1987	1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010	AE82,CE80	08/1983 - 07/1987	1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-12050	AE82,CE80	08/1983 - 07/1987	1
45281 - HOUSING, STEERING COLUMN
45286-1293602	AE82..LE MAROON,RED/MAROON,TRIM3#	08/1983 - 08/1984	1
45286-1293603	AE82..LE GRAY,GRAY,TRIM1#	08/1983 - 08/1984	1
45286-1293604	AE82..LE BLUE,BLUE,TRIM8#	08/1983 - 08/1984	1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020	AE82,CE80	08/1983 - 07/1987	1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
96711-24056	AE82,CE80	08/1983 - 12/1985	1
Common parts
90119-08560
90119-10277
90164-50048
90179-10055
90201-08131
90460-78004
91611-40816
91611-60818
91651-40614
91651-40618
93315-14012
93319-14008
93386-16014

(8308-8408)LE ; (8408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45081 - SUPPORT SUB-ASSY, TILT STEERING
45081-12020	AE82..LE	08/1983 - 08/1984	1
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-12020	AE82..LE	08/1983 - 08/1984	1
45082A - SPRING, TORSION(FOR TILT STEERING RETURN)
90508-29015	AE82..LE	08/1983 - 08/1984	2
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12210	AE82,CE80	08/1983 - 07/1987	1
45210-12230	AE82,CE80..DX,LE,LEL W/POWER STEERING	08/1983 - 07/1987	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038	AE82,CE80	08/1983 - 07/1987	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	AE82,CE80 T=1.35-1.45,T=1.4	08/1983 - 07/1987	2
90520-17042	AE82,CE80 T=1.20,T=1.2	08/1983 - 07/1987	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196	AE82,CE80 T=1.35-1.45,T=1.4	08/1983 - 07/1987	2
90520-17042	AE82,CE80 T=1.20,T=1.2	08/1983 - 07/1987	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	AE82,CE80	08/1983 - 07/1987	1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12210	AE82..LE	08/1983 - 08/1984	1
45205A - BUSH(FOR STEERING COLUMN TUBE)
90389-11005	AE82..LE	08/1983 - 08/1984	4
45205A - BUSH(FOR STEERING COLUMN TUBE)
90389-11005	AE82..LE	08/1983 - 08/1984	4
45205G - RING, O(FOR STEERING COLUMN TUBE)
90301-11005	AE82..LE	08/1983 - 08/1984	2
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32010	AE82,CE80	08/1983 - 07/1987	1
45209-32020	AE82,CE80..DX,LE,LEL W/POWER STEERING	08/1983 - 07/1987	1
45253 - COVER, STEERING COLUMN HOLE
45025-12160	AE82,CE80	08/1983 - 07/1987	1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010	AE82,CE80	08/1983 - 07/1987	1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-12050	AE82,CE80	08/1983 - 07/1987	1
45281 - HOUSING, STEERING COLUMN
45286-1293602	AE82..LE MAROON,RED/MAROON,TRIM3#	08/1983 - 08/1984	1
45286-1293603	AE82..LE GRAY,GRAY,TRIM1#	08/1983 - 08/1984	1
45286-1293604	AE82..LE BLUE,BLUE,TRIM8#	08/1983 - 08/1984	1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-12020	AE82..LE	08/1983 - 08/1984	1
45804B - BOLT(FOR STEERING TILT LEVER)
90105-08060	AE82..LE	08/1983 - 08/1984	1
45804C - WASHER, PLATE(FOR STEERING TILT LEVER)
90201-08029	AE82..LE	08/1983 - 08/1984	1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020	AE82,CE80	08/1983 - 07/1987	1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
96711-24056	AE82,CE80	08/1983 - 12/1985	1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-20010	AE82..LE	08/1983 - 08/1984	1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-20010	AE82..LE	08/1983 - 08/1984	1
45839 - GROMMET, RETURN SPRING
45839-20010	AE82..LE	08/1983 - 08/1984	2
45897A - BOLT, TILT STEERING PAWL SET
45897-26010	AE82..LE	08/1983 - 08/1984	2
45898A - BOLT, RETURN SPRING SET
45898-20020	AE82..LE	08/1983 - 08/1984	2
Common parts
90119-08560
90119-10277
90164-50048
90179-08061
90179-10055
90201-08131
90460-78004
90980-07204
91611-40816
91611-60818
91651-40618
93219-55010
93315-14012
93319-14008
94511-00500

(8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-8605)GL,STD..SA ; (8411-8605)GT..SA ;

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-08070
90119-10277
90164-50048
90179-08061
90179-10055
90201-08131
90460-78004
90980-07204
91611-60816
91611-60818
91651-40618
93219-55010
93315-14012
93319-14008
94511-00500
94512-00800

AE82L-ELMNCA (1983)

(8308-8608)DX,STD ; (8608- )DX,LE

(8308-8408)LE ; (8408- )

(8305- )CSX,GL,GT..ARL,EUR,GEN,SAA ; (8402-8605)GL,STD..SA ; (8411-8605)GT..SA ;
