AE82L-ELMDCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

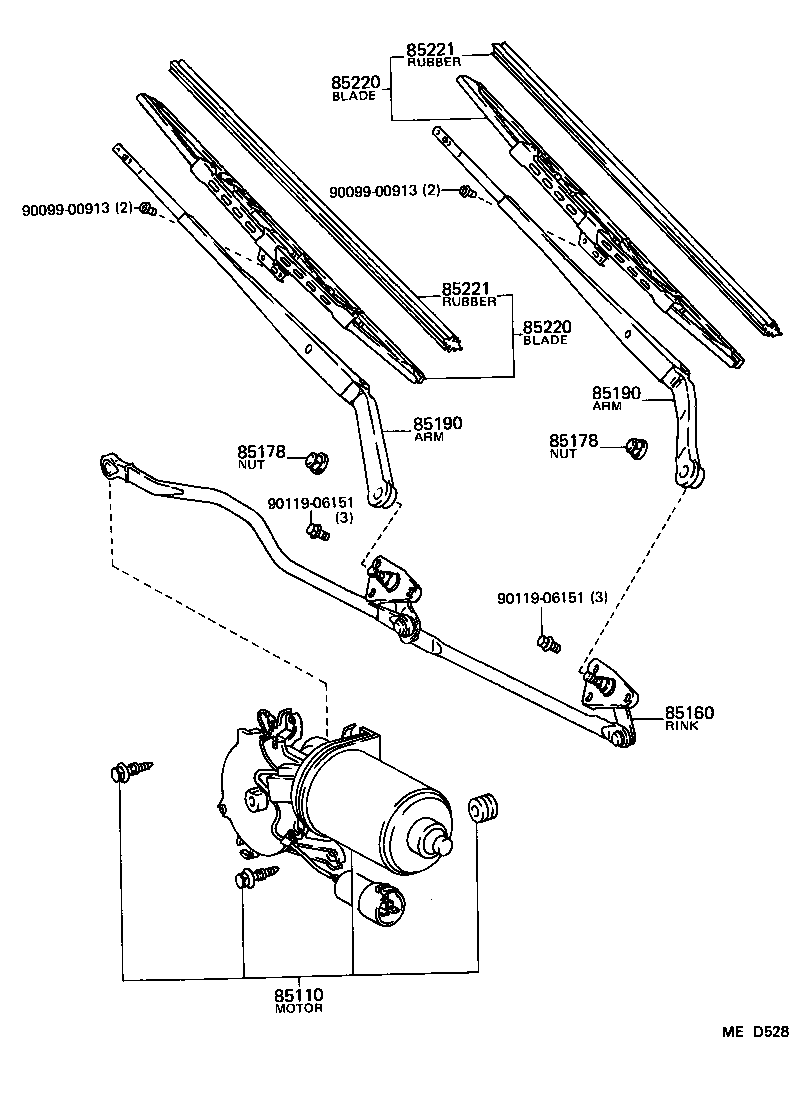

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12370 |
AE82,CE80..USA |
1 | ||
| 85110-12380 |
AE82,CE80..USA COLD SPEC |
1 | ||
| 85110-12490 |
AE82..USA |
1 | ||
| 85110-12500 |
AE82..USA COLD SPEC |
1 | ||
| 85110-12501 |
AE82..USA COLD SPEC |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-12410 |
AE82,CE80..USA |
1 | ||
| 85160-12420 |
AE82,CE80..USA COLD SPEC |
1 | ||
| 85160-12421 |
AE82..USA COLD SPEC |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AE82 |
2 | ||
| 90176-08029 |
AE82,CE80 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AE82 |
2 | ||
| 90176-08029 |
AE82,CE80 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-12640 |
AE82,CE80 LH |
1 | ||
| 85210-12170 |
AE82,CE80 RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-12640 |
AE82,CE80 LH |
1 | ||
| 85210-12170 |
AE82,CE80 RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12510 |
AE82,CE80 RH |
1 | ||
| 85220-16270 |
AE82,CE80 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12510 |
AE82,CE80 RH |
1 | ||
| 85220-16270 |
AE82,CE80 LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-17020 |
AE82 LH |
1 | ||
| 85221-30100 |
AE82,CE80 LH |
1 | ||
| 85221-12210 |
AE82,CE80 RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-17020 |
AE82 LH |
1 | ||
| 85221-30100 |
AE82,CE80 LH |
1 | ||
| 85221-12210 |
AE82,CE80 RH |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06151 | ||||
