AE82L-ELMDCA (1983)
Toyota Corolla Sed/Lb

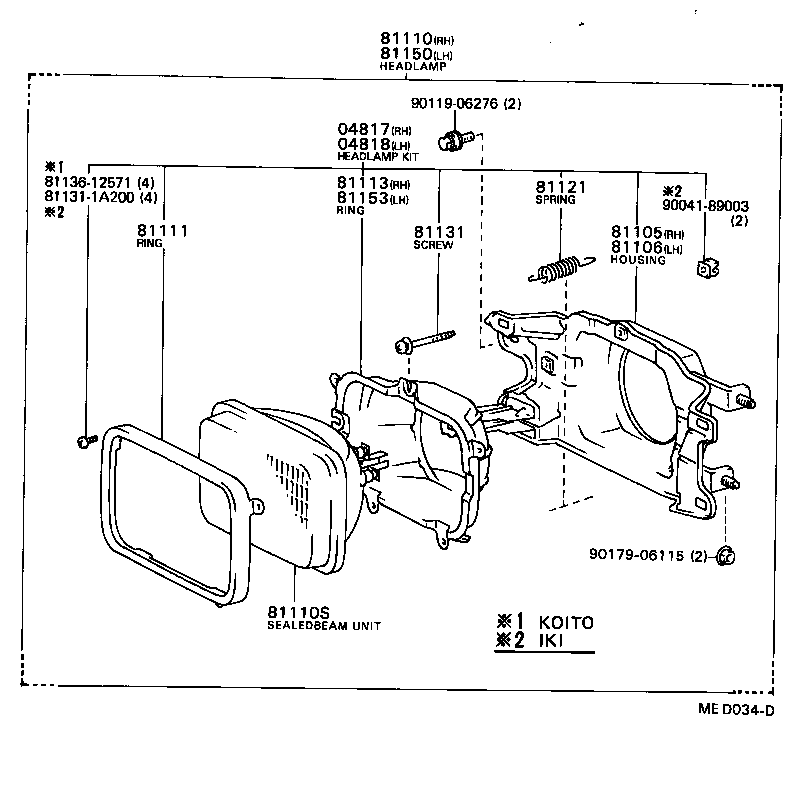

(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04817 - HEADLAMP KIT, W/O SEALED BEAM, RH | ||||
| 04817-12120 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 04818 - HEADLAMP KIT, W/O SEALED BEAM, LH | ||||
| 04818-12120 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-1A191 |
AE82 |
1 | ||
| 81105-1A190 |
AE82,CE80 KOITO |
1 | ||
| 81105-1A200 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-1A140 |
AE82,CE80 KOITO |
1 | ||
| 81106-1A150 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81106-1A141 |
AE82 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80317 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81110-80316 |
AE82,CE80..DX,STD KOITO |
1 | ||
| 81110-1A191 |
AE82 |
1 | ||
| 81110-80318 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04003 |
AE82,CE80..DX,STD 12V 65/55W,*WB,12V 65/55W,IKI |
2 | ||
| 90981-04004 |
AE82,CE80..DX,STD 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04020 |
AE82,CE80..DX,LE,LEL 12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN,KOITO |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-1A200 |
AE82,CE80..DX,STD IKI |
2 | ||
| 81111-1A190 |
AE82,CE80 KOITO |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-1A190 |
AE82,CE80 KOITO |
1 | ||
| 81113-1A200 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
AE82,CE80 KOITO |
2 | ||
| 81121-1A191 |
AE82 |
2 | ||
| 81121-1A200 |
AE82,CE80..DX,STD IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16030 |
AE82,CE80..DX,STD IKI |
4 | ||
| 81131-14670 |
AE82,CE80 KOITO |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80315 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 81150-80313 |
AE82,CE80..DX,STD KOITO |
1 | ||
| 81150-1A141 |
AE82 |
1 | ||
| 81150-80314 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-1A140 |
AE82,CE80 KOITO |
1 | ||
| 81153-1A150 |
AE82,CE80..DX,STD IKI |
1 | ||
| Common parts | ||||
| 81131-1A200 | ||||
| 81136-12571 | ||||
| 90041-89003 | ||||
| 90119-06276 | ||||
| 90179-06115 | ||||

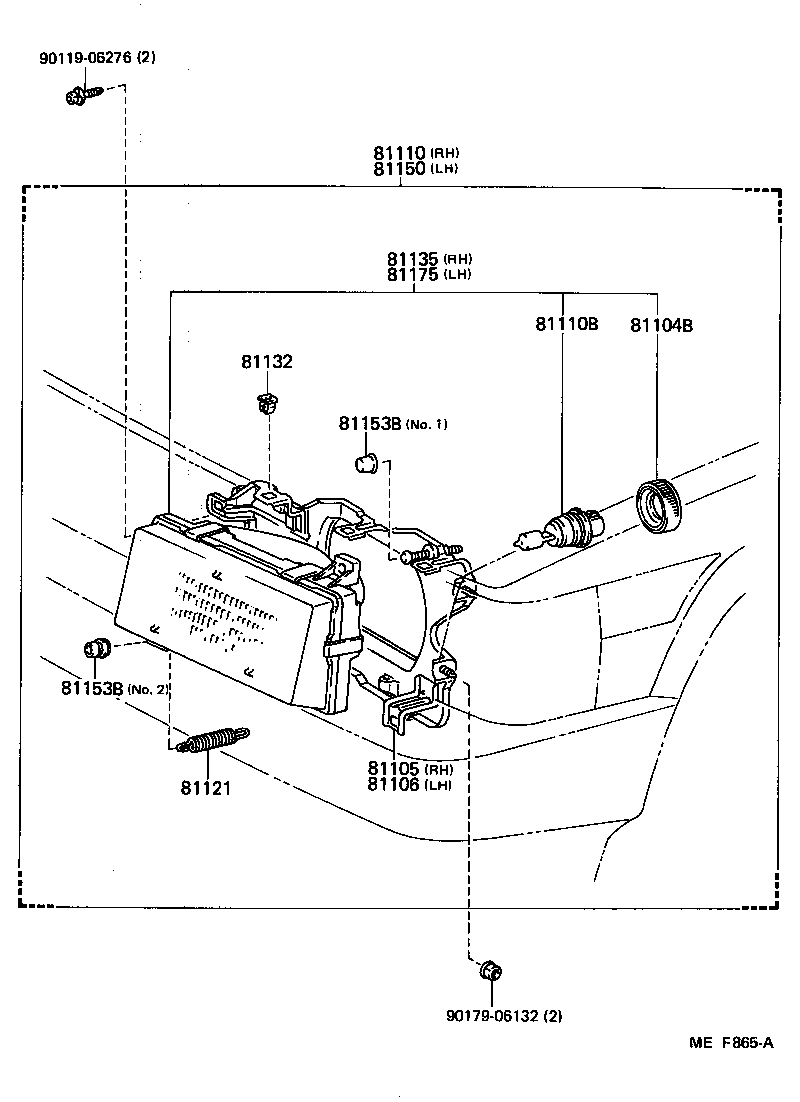

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81104B - LOCKING CAP, HEADLAMP | ||||
| 81104-22520 |
AE82 |
2 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-1A191 |
AE82 |
1 | ||
| 81105-1A190 |
AE82,CE80 KOITO |
1 | ||
| 81105-1A200 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-1A140 |
AE82,CE80 KOITO |
1 | ||
| 81106-1A150 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81106-1A141 |
AE82 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80317 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81110-80316 |
AE82,CE80..DX,STD KOITO |
1 | ||
| 81110-1A191 |
AE82 |
1 | ||
| 81110-80318 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
AE82 12V 65/45W,*HAL,*WH,12V 65/45W |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
AE82,CE80 KOITO |
2 | ||
| 81121-1A191 |
AE82 |
2 | ||
| 81121-1A200 |
AE82,CE80..DX,STD IKI |
2 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81137-22530 |
AE82 |
6 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1A191 |
AE82 |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80315 |
AE82,CE80..DX,LE,LEL HALOGEN,KOITO |
1 | ||
| 81150-80313 |
AE82,CE80..DX,STD KOITO |
1 | ||
| 81150-1A141 |
AE82 |
1 | ||
| 81150-80314 |
AE82,CE80..DX,STD IKI |
1 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81132-32121 |
AE82 NO.2 |
2 | ||
| 81127-1A191 |
AE82 NO.1 |
2 | ||
| 81153B - BEARING, HEADLAMP | ||||
| 81132-32121 |
AE82 NO.2 |
2 | ||
| 81127-1A191 |
AE82 NO.1 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1A141 |
AE82 |
1 | ||
| Common parts | ||||
| 90119-06276 | ||||
| 90179-06132 | ||||

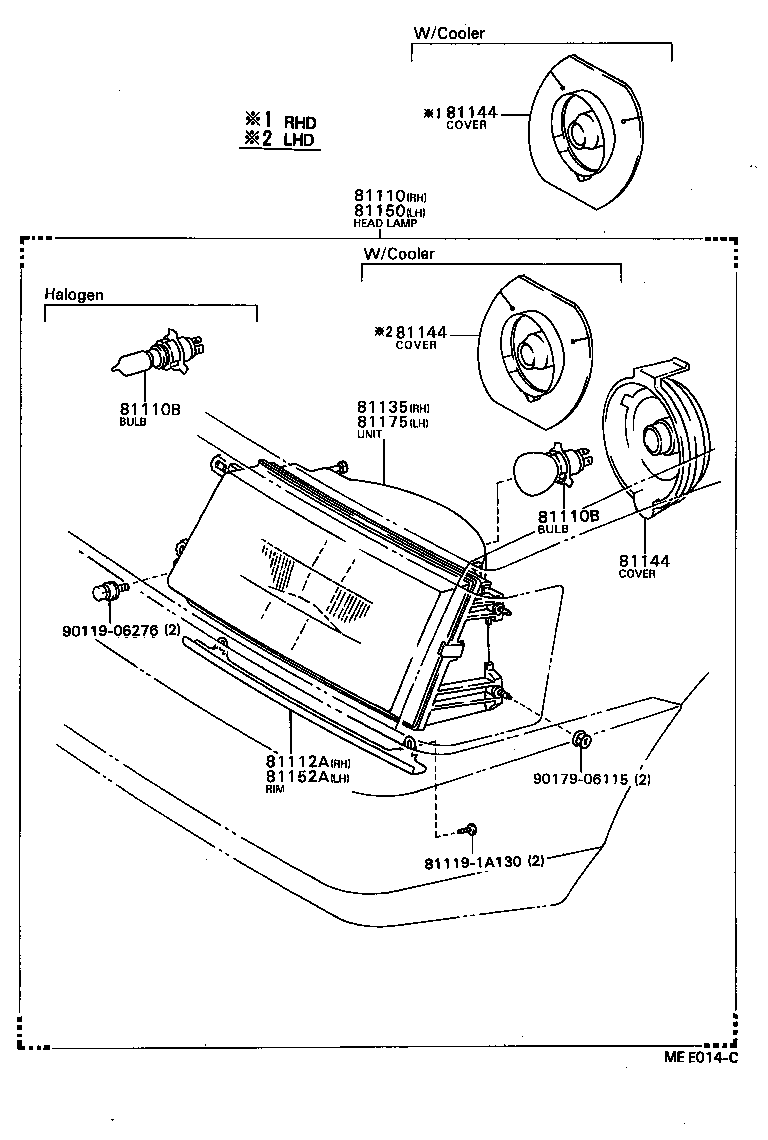

(8305-8505)AE82..ARL,GEN,SA ; (8305-8505)AE82..4DS,5D..EUR ; (8305-8505)AE80..ARL,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81119-1A130 | ||||
| 90119-06276 | ||||
| 90179-06115 | ||||

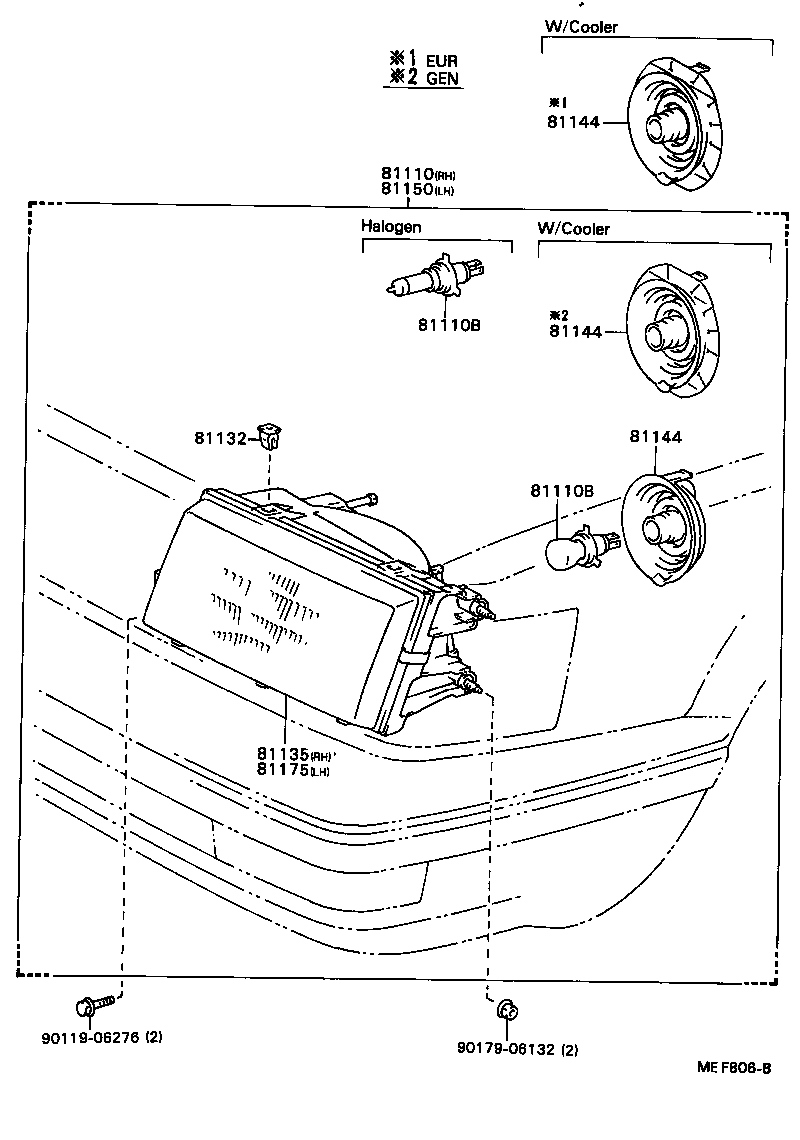

(8305-8505)CE80,EE80..4DS,5D..EUR,GEN,SA ; (8505-8605)ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81119-1A130 | ||||
| 90119-06276 | ||||
| 90179-06115 | ||||
(8505-8704)4DS,5D..EUR ; (8505-8707)GEN,SAA ; (8605- )ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06276 | ||||
| 90179-06132 | ||||
