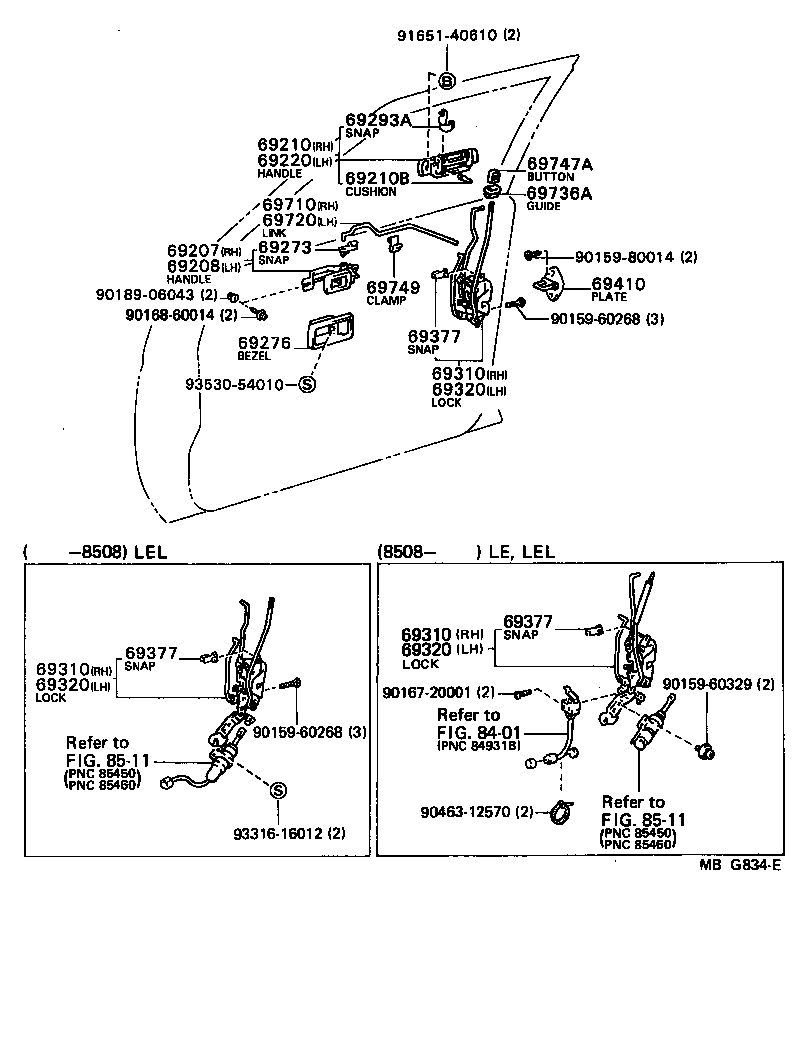

Toyota Corolla sed/lb AE82 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1207004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	1
69205-1207003	AE82,CE80 GRAY,GRAY,TRIM1#	01/1984 - 07/1987	1
69205-1207002	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	1
69205-1207002	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	1
69205-1207016	AE82,CE80 BROWN,SEPIA BROWN,TRIM4#	08/1984 - 07/1987	1
69205-1207003	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	1
69205-1207004	AE82,CE80 BLUE,BLUE,TRIM8#	01/1984 - 07/1987	1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1207003	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	1
69206-1207002	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	1
69206-1207002	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	1
69206-1207016	AE82,CE80 BROWN,SEPIA BROWN,TRIM4#	08/1984 - 07/1987	1
69206-1207004	AE82,CE80 BLUE,BLUE,TRIM8#	01/1984 - 07/1987	1
69206-1207003	AE82,CE80 GRAY,GRAY,TRIM1#	01/1984 - 07/1987	1
69206-1207004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69240-12070	AE82,CE80	05/1985 - 07/1987	1
69210-12080	AE82,CE80	08/1983 - 05/1985	1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021	AE82,CE80	08/1983 - 07/1987	4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12080	AE82,CE80	08/1983 - 05/1985	1
69230-12070	AE82,CE80	05/1985 - 07/1987	1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-20060	AE82,CE80 RH	08/1983 - 07/1987	1
69759-20070	AE82,CE80 LH	08/1983 - 07/1987	1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-3202004	AE82,CE80..DX,LE BLUE,BLUE,TRIM8#	08/1983 - 01/1984	2
69277-3202012	AE82,CE80..DX,LE MAROON,RED/MAROON,TRIM3#	08/1983 - 01/1984	2
69277-3202033	AE82,CE80 GRAY,GRAY,TRIM1#	01/1984 - 07/1987	2
69277-3202004	AE82,CE80 BLUE,BLUE,TRIM8#	01/1984 - 07/1987	2
69277-3202033	AE82,CE80..DX,LE GRAY,GRAY,TRIM1#	08/1983 - 01/1984	2
69277-3202026	AE82,CE80 BROWN,BROWN,TRIM4#	08/1984 - 07/1987	2
69277-3202012	AE82,CE80 MAROON,RED/MAROON,TRIM3#	01/1984 - 08/1984	2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12050	AE82,CE80 RH	08/1983 - 08/1985	1
69293-12030	AE82 RH	08/1985 - 07/1987	1
69293-12040	AE82 LH	08/1985 - 07/1987	1
69293-12060	AE82,CE80 LH	08/1983 - 08/1985	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12150	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69310-12120	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12150	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69310-12120	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12150	AE82,CE80..DX,LE,STD	08/1983 - 05/1985	1
69310-12120	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12140	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69320-12170	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12140	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69320-12170	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12140	AE82,CE80..DX,LE W/O *EL	05/1985 - 07/1987	1
69320-12170	AE82,CE80..DX,LE,STD	08/1983 - 08/1985	1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 RH	08/1983 - 07/1987	1
69759-20040	AE82,CE80 LH	08/1983 - 07/1987	1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 RH	08/1983 - 07/1987	1
69759-20040	AE82,CE80 LH	08/1983 - 07/1987	1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20050	AE82,CE80 RH	08/1983 - 07/1987	1
69759-20040	AE82,CE80 LH	08/1983 - 07/1987	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001	AE82,CE80	08/1983 - 07/1987	2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-12070	AE82,CE80	08/1983 - 07/1987	1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-12080	AE82,CE80	08/1983 - 07/1987	1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-12030	AE82,CE80	08/1984 - 07/1987	2
69736-22021	AE82,CE80..DX,LE	08/1983 - 08/1984	2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3201004	AE82,CE80 BLUE,BLUE,TRIM8#	08/1983 - 05/1985	2
69741-90K0001	AE82,CE80 BLACK,BLACK	05/1985 - 07/1987	2
69741-3201012	AE82,CE80 MAROON,RED/MAROON,TRIM3#	08/1983 - 08/1984	2
69741-3201023	AE82,CE80 GRAY,GRAY,TRIM1#	08/1983 - 05/1985	2
69741-3201016	AE82,CE80 BROWN,BROWN,TRIM4#	08/1984 - 05/1985	2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010	AE82,CE80	08/1983 - 07/1987	2
Common parts
90159-60268
90159-60329
90159-80014
90167-20001
90168-60014
90189-06043
90463-12570
91651-40610
93316-16012
93530-54010
Linked diagrams
8401
8511

AE82L-ELMDCA (1983)

(8308- )
