AE82L-ELMDCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

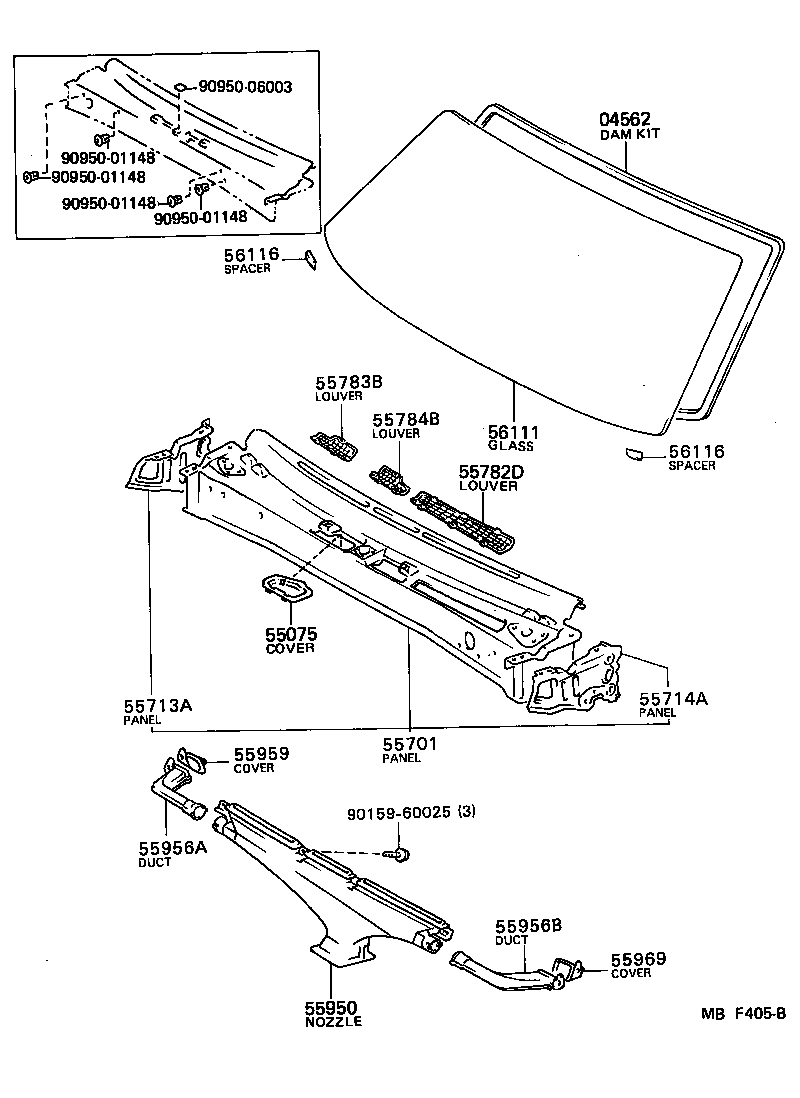

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
AE82,CE80 |
1 | ||
| 55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55077-12070 |
AE82,CE80..USA |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-12290 |
AE82 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12060 |
AE82,CE80 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12060 |
AE82,CE80 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-12050 |
AE82 |
1 | ||
| 55782-12020 |
AE82,CE80 |
1 | ||
| 55782-12020 |
AE82..USA |
1 | ||
| 55782-12050 |
AE82..USA COLD SPEC |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-12190 |
AE82 |
1 | ||
| 55783-12160 |
AE82,CE80 |
1 | ||
| 55783-12160 |
AE82..USA |
1 | ||
| 55783-12190 |
AE82..USA C0LD SPEC |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-12030 |
AE82,CE80 |
1 | ||
| 55784-12030 |
AE82..USA |
1 | ||
| 55784-12060 |
AE82..USA COLD SPEC |
1 | ||
| 55784-12060 |
AE82 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12070 |
AE82,CE80 |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55970-12040 |
AE82,CE80 |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55980-12030 |
AE82,CE80 |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-12020 |
AE82,CE80..USA |
1 | ||
| 55969 - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55969-12020 |
AE82,CE80..USA |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-12610 |
AE82,CE80..LB..DX *TL,T=5.3 |
1 | ||
| 56111-12700 |
AE82,CE80..LB..DX *TL,T=5.3,DUPLATE |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE82,CE80 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
AE82,CE80 |
2 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90950-01148 | ||||
| 90950-06003 | ||||
