AE82L-ELMDCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )AE82

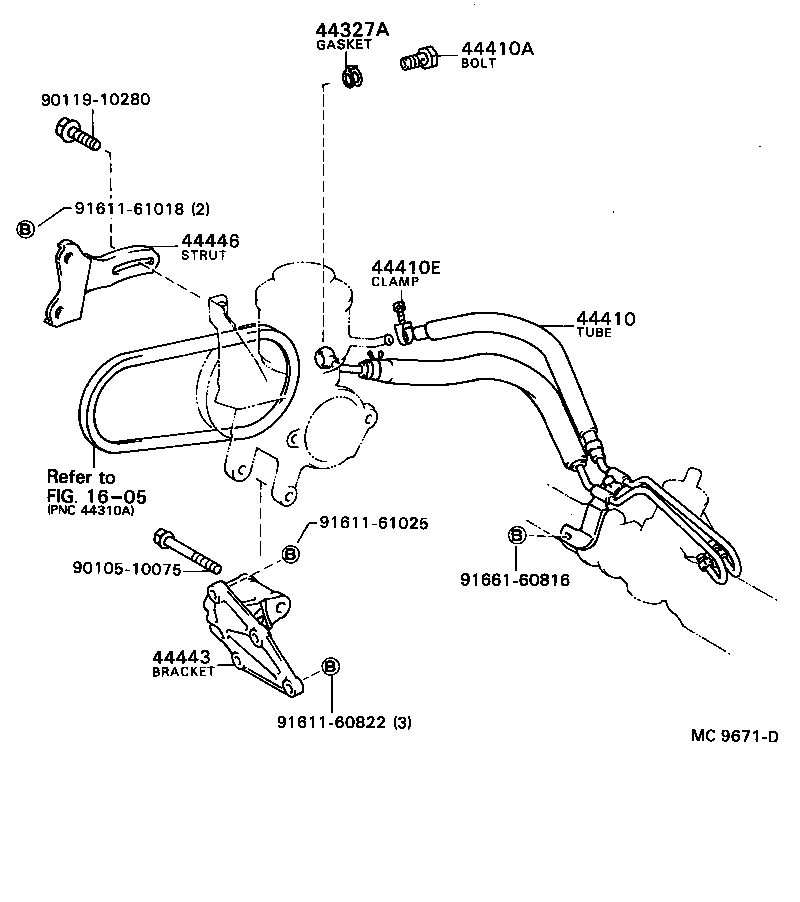

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-12050 |
AE82 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 44410E - CLAMP(FOR PRESSURE FEED TUBE) | ||||
| 90460-01001 |
AE82,CE80..DX,LE,LEL |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12050 |
AE82 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12030 |
AE82 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-10280 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91661-60816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8305-8505)AE82..RHD..GL..GEN ; (8402- )AE82..DX,GL,SE..SA ; (8411- )CSX ; (8
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10075 | ||||
| 90119-10280 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91661-60816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
