AE82L-ELMDCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )4ALC

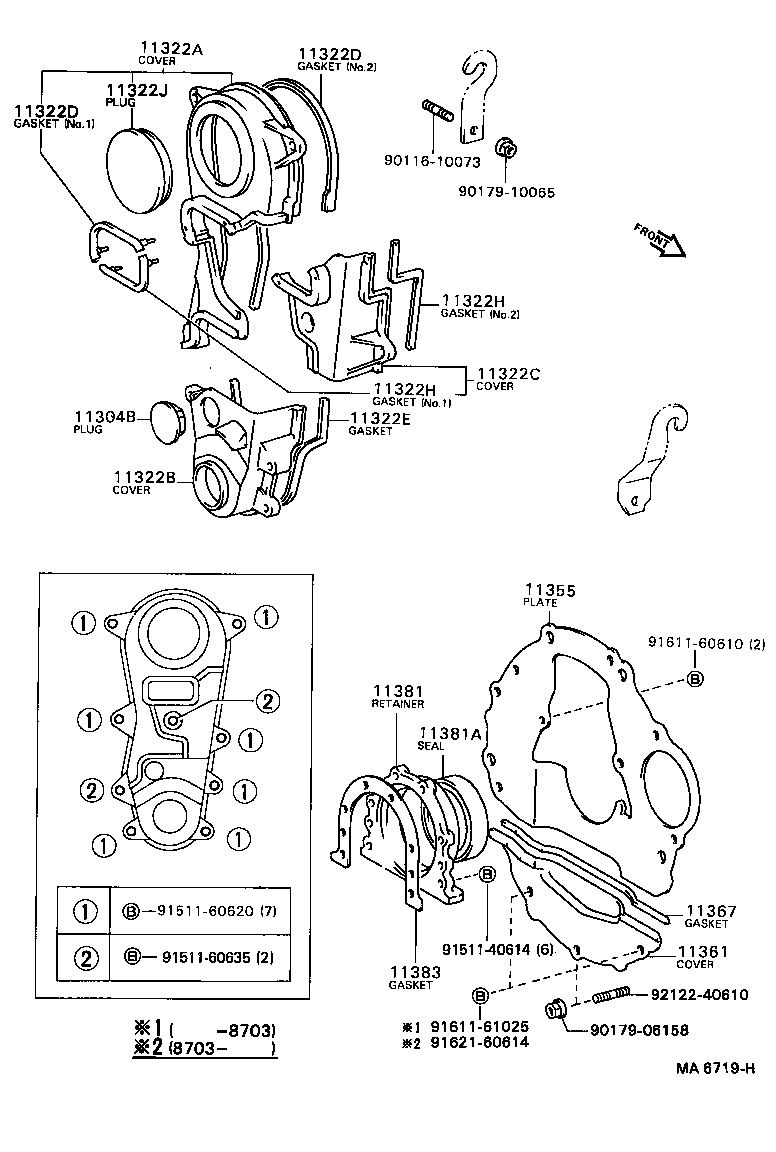

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01391 |
4ALC..AE82 OD=34 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-15031 |
4ALC..AE82 |
1 | ||
| 11302-15030 |
4ALC..AE82 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11303-15031 |
4ALC..AE82 |
1 | ||
| 11303-15030 |
4ALC..AE82 |
1 | ||
| 11322C - COVER, TIMING BELT, NO.3 | ||||
| 11304-15010 |
4ALC..AE82 |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11346-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 11328-15030 |
4ALC..AE82 NO.2 |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11346-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 11328-15030 |
4ALC..AE82 NO.2 |
1 | ||
| 11322E - GASKET, TIMING BELT COVER, NO.2 | ||||
| 11329-15030 |
4ALC..AE82 |
1 | ||
| 11322H - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11346-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 11319-15010 |
4ALC..AE82 NO.2 |
1 | ||
| 11322H - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11346-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 11319-15010 |
4ALC..AE82 NO.2 |
1 | ||
| 11322J - RETAINER(FOR TIMING BELT COVER) | ||||
| 90950-01390 |
4ALC..AE82 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15050 |
4ALC..AE82 |
1 | ||
| 11355-15060 |
4ALC..AE82 |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-16040 |
4ALC..AE82 |
1 | ||
| 11361-16020 |
4ALC..AE82 |
1 | ||
| 11361-15021 |
4ALC..AE82 |
1 | ||
| 11361-15020 |
4ALC..AE82 |
1 | ||
| 11367 - GASKET, FLYWHEEL HOUSING UNDER | ||||
| 11367-15030 |
4ALC..AE82 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
4ALC..AE82 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70004 |
4ALC..AE82 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-15010 |
4ALC..AE82 |
1 | ||
| Common parts | ||||
| 90116-10073 | ||||
| 90179-06158 | ||||
| 90179-10065 | ||||
| 91511-40614 | ||||
| 91511-60620 | ||||
| 91511-60635 | ||||
| 91611-60610 | ||||
| 91611-61025 | ||||
| 91621-60614 | ||||
| 92122-40610 | ||||
