AE82L-ELHNCC (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87211C 87214 87214A 87215 88570E 8857812160 8857812160 9015960026 9017906162 9018305094 9018305103 9354055010 9356755014 9356755016 9356755016 9356815012 9356855014
Part # Description Qty Price

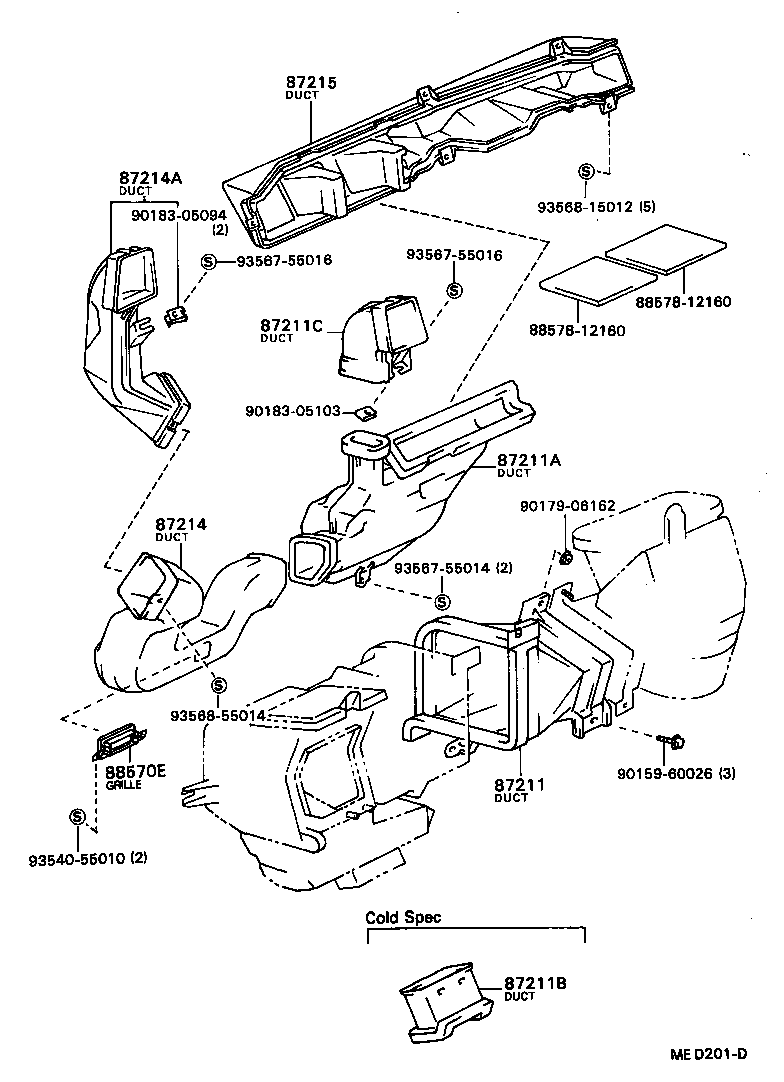

87211A - DUCT, AIR, NO.2
87201-12050

AE8#,CE80,EE80..LHD

 1
87201-12090

AE82,CE80,EE80..LHD..EUR

 1
87211B - DUCT, AIR, NO.3
87211-12110

AE8#,CE80,EE80..LHD..EUR

COLD SPEC

 1
87211C - DUCT, AIR, NO.4
55086-12130

AE8#,CE80,EE80..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55844-12140

AE8#,CE80,EE80..LHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12100

AE8#,CE80,EE80..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12080

AE8#,CE80,EE80..LHD

 1
Common parts
88578-12160
90159-60026
90179-06162
90183-05094
90183-05103
93540-55010
93567-55014
93567-55016
93568-15012
93568-55014

(8308- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55906A 55906A 55907A 55908A 55908A 55909A 55910 55910 55917 55923 5593916010 8302 8302 8401 8401 8401 87284 9018305103 9018305103 9048013015 9356755014 9356755014 9356814512 9361014010
Part # Description Qty Price
Common parts
55939-16010
90183-05103
90480-13015
93567-55014
93568-14512
93610-14010
Linked diagrams
8302
8401

(8305- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55906A 55906A 55907A 55908A 55908A 55909A 55910 55910 55917 55923 5593916010 8302 8302 8401 8401 87284 8858512030 9018305103 9018305103 9048013015 9356755014 9356755014 9356814512 9361014010
Part # Description Qty Price

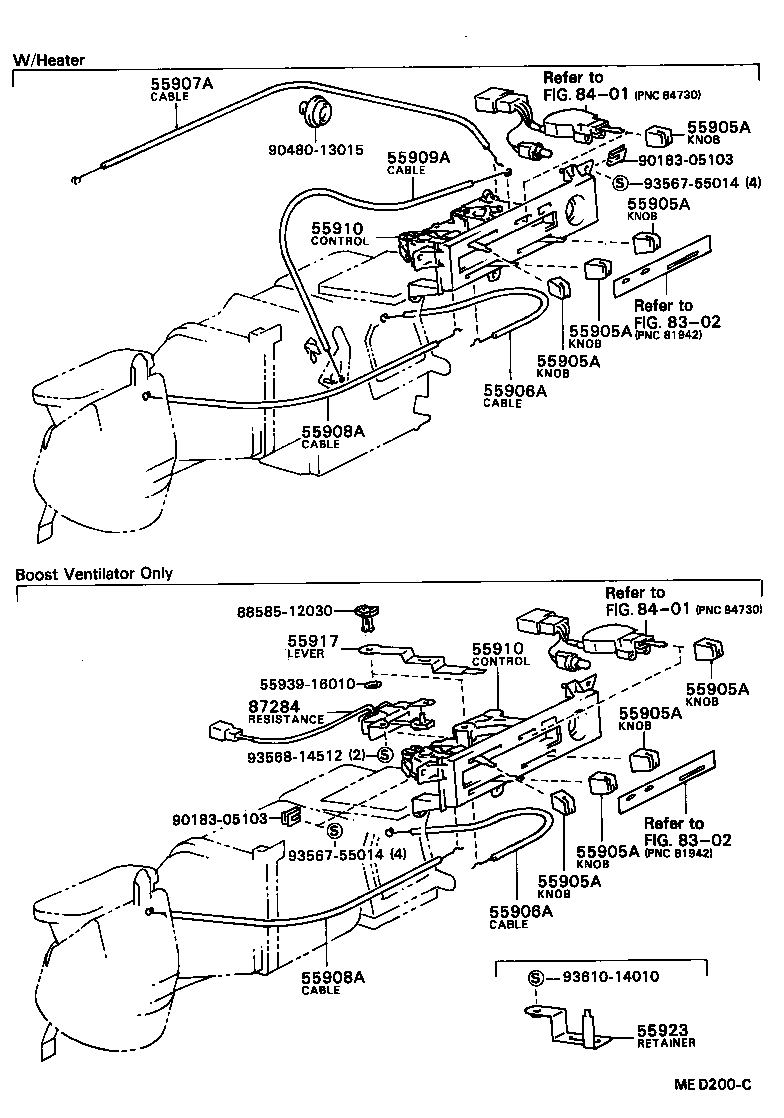

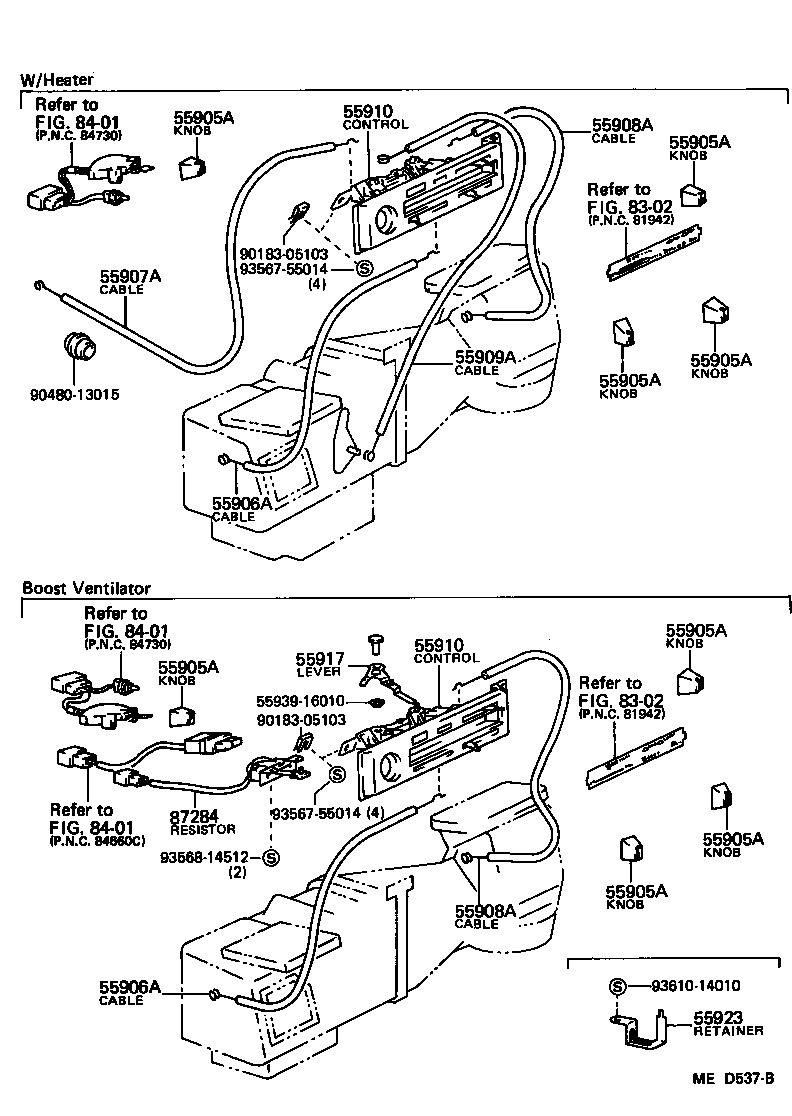

55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55905A - KNOB, HEATER CONTROL
55905-12060

AE8#,CE80,EE80..LHD..EUR

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12190

AE8#,CE80,EE80..LHD

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12190

AE8#,CE80,EE80..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12250

AE8#,CE80,EE80..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12170

AE8#,CE80,EE80..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12170

AE8#,CE80,EE80..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12150

AE8#,CE80,EE80..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12360

AE8#,CE80,EE80..LHD

W/HEATER OR W/*BV & COOLER

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12360

AE8#,CE80,EE80..LHD

W/HEATER OR W/*BV & COOLER

 1
Common parts
55939-16010
88585-12030
90183-05103
90480-13015
93567-55014
93568-14512
93610-14010
Linked diagrams
8302
8401

(8305-8707)LHD

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87211C 87214 87214A 87215 88570E 8857812160 8857812160 9015960026 9017906162 9018305094 9018305103 9354055010 9356755014 9356755016 9356755016 9356815012 9356855014
Part # Description Qty Price
87211A - DUCT, AIR, NO.2
87201-12050

AE8#,CE80,EE80..LHD

 1
87201-12090

AE82,CE80,EE80..LHD..EUR

 1
87211B - DUCT, AIR, NO.3
87211-12110

AE8#,CE80,EE80..LHD..EUR

COLD SPEC

 1
87211C - DUCT, AIR, NO.4
55086-12130

AE8#,CE80,EE80..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55844-12140

AE8#,CE80,EE80..LHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12100

AE8#,CE80,EE80..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12080

AE8#,CE80,EE80..LHD

 1
Common parts
88578-12160
90159-60026
90179-06162
90183-05094
90183-05103
93540-55010
93567-55014
93567-55016
93568-15012
93568-55014
