Toyota Corolla sed/lb AE82 WIRING & CLAMP

AE82L-ELHNCC (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987

Engine 4ALC

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

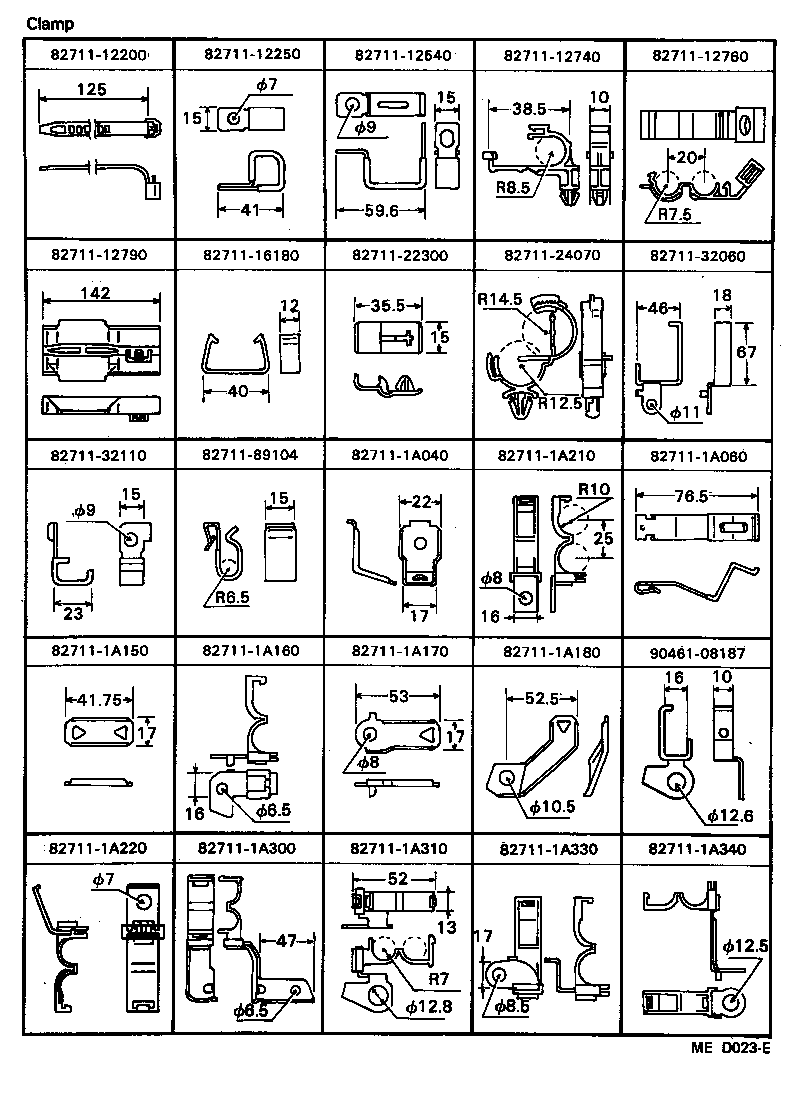

Common parts
82711-12200
82711-12250
82711-12540
82711-12740
82711-12760
82711-12790
82711-16180
82711-1A040
82711-1A060
82711-1A150
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-1A220
82711-1A300
82711-1A310
82711-1A330
82711-1A340
82711-22300
82711-24070
82711-32060
82711-32110
82711-89104
90461-08187

(8308- )AE82

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06005
90119-06053
90119-06098
90119-06110
91611-60610
Linked diagrams
8201
8401

(8308- )LB

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06005

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts

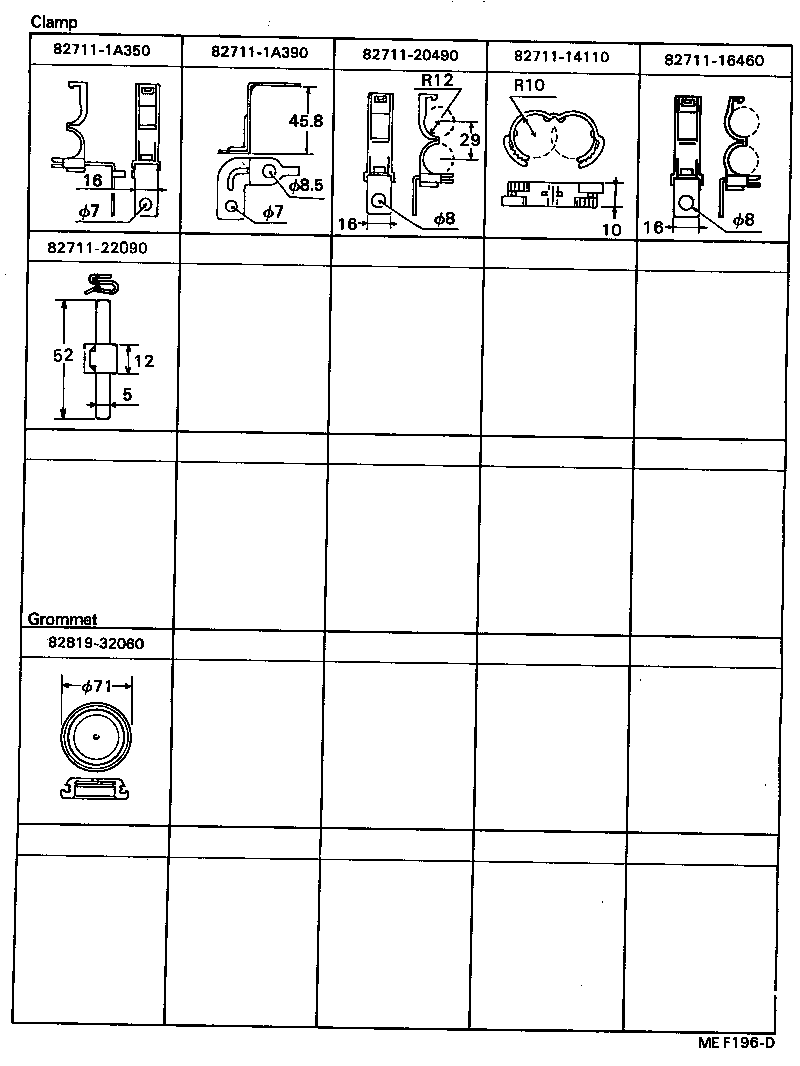

82711-14110
82711-16460
82711-1A350
82711-1A390
82711-20490
82711-22090
82819-32060

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82981-17010
82981-22020
82982-12040
82982-12050
82983-12040
82983-22030

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82984-22020
82991-12010
82991-12020

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12250
82711-12540
82711-12740
82711-12760
82711-12790
82711-16180
82711-1A040
82711-1A060
82711-1A150
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-1A220
82711-1A300
82711-1A310
82711-1A330
82711-1A340
82711-22300
82711-24070
82711-32060
82711-32110
82711-89104
90461-08187

(8305- )5D

Click highlighted areas on diagram

Part #	Description	Period	Qty

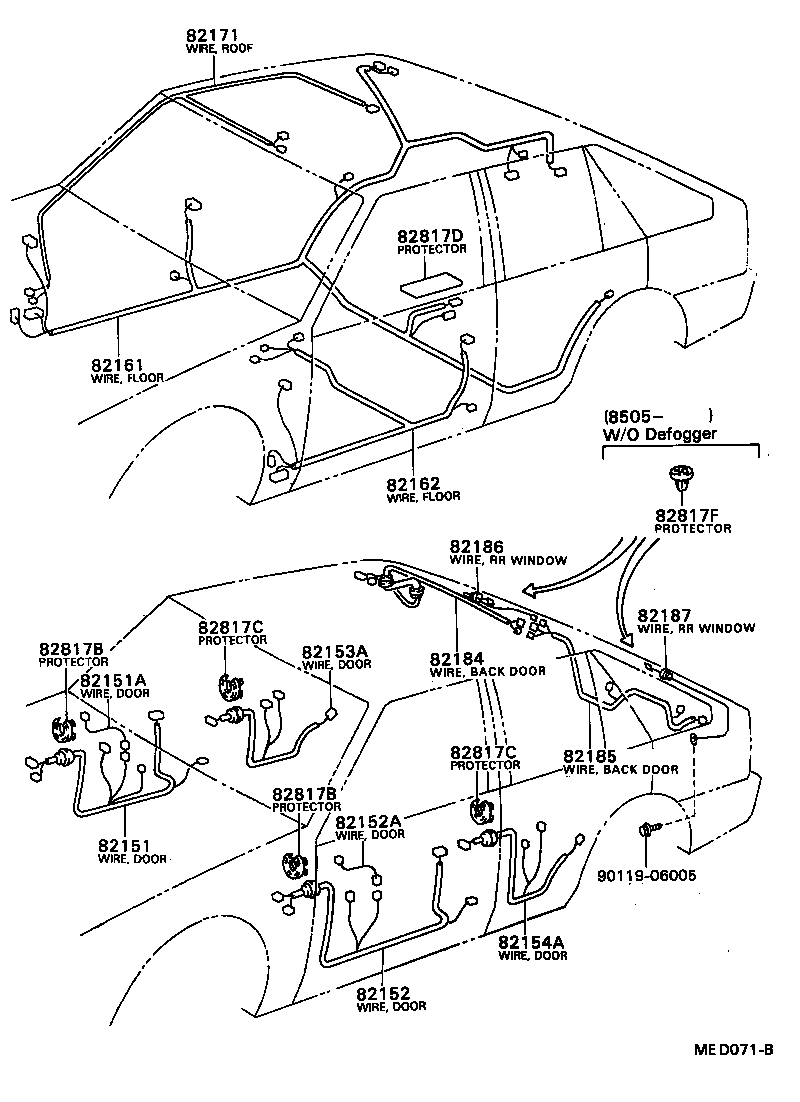

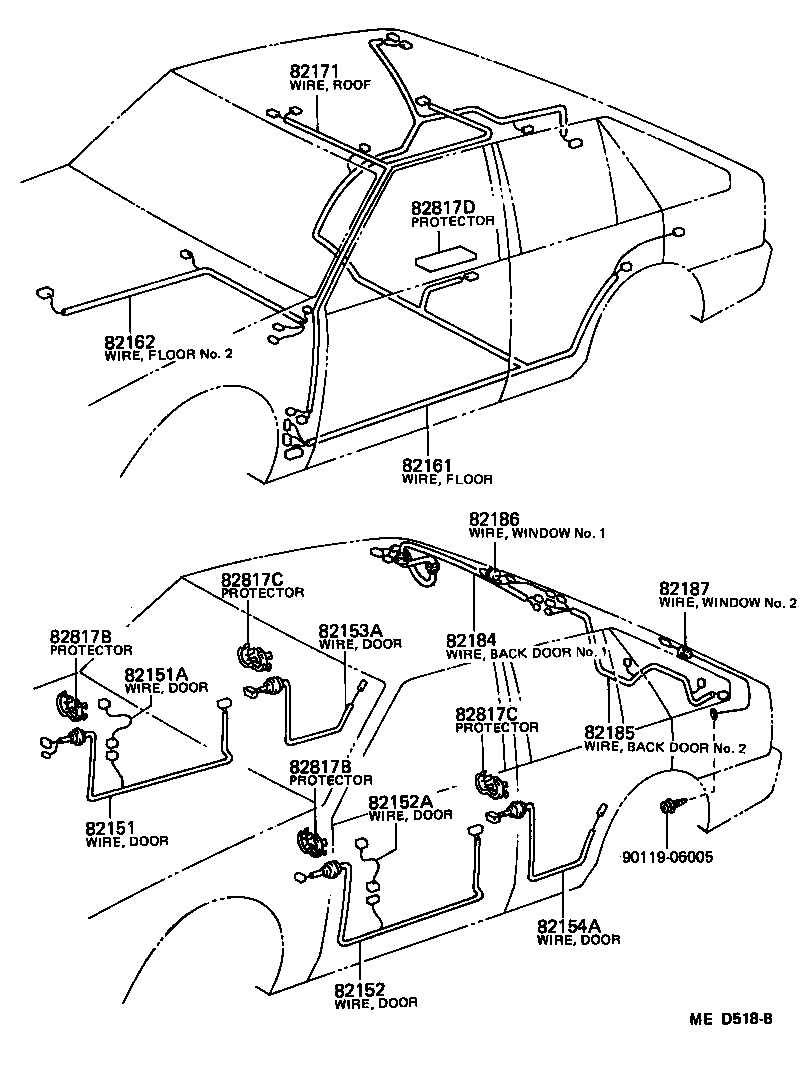

82161 - WIRE, FLOOR
82161-12130	AE8#,CE80..5D..LHD..EUR	05/1983 - 10/1984	1
82161-12131	AE82,CE80,EE80..5D..LHD..EUR	10/1984 - 05/1985	1
82161-12560	AE82,CE80,EE80..5D..LHD..EUR	05/1985 - 04/1987	1
82162 - WIRE, FLOOR, NO.2
82162-12130	AE8#,CE80..LHD..(EUR,GEN)	05/1983 - 10/1984	1
82162-12171	AE82..SDZ SWEDEN SPEC	10/1984 - 05/1985	1
82162-12131	AE8#,CE80,EE80..LHD..(EUR,GEN)	10/1984 - 05/1985	1
82162-12170	AE82..SDZ SWEDEN SPEC	05/1983 - 10/1984	1
82162-12450	AE82..SDZ SWEDEN SPEC	05/1985 - 04/1987	1
82162-12430	AE82,CE80,EE80..LHD..(EUR,GEN)	05/1985 - 04/1987	1
82171 - WIRE, ROOF, NO.1
82171-12090	AE8#,CE80,EE80..5D..LHD W/SUN ROOF	05/1983 - 04/1987	1
82171-12080	AE8#,CE80,EE80..5D..LHD	05/1983 - 04/1987	1
82184 - WIRE, BACK DOOR, NO.1
82184-12040	AE8#,CE80,EE80..5D..EUR W/RR WIPER	05/1983 - 05/1985	1
82184-12110	AE82,CE80,EE80..5D..EUR	05/1985 - 04/1987	1
82184-12120	AE82,CE80,EE80..5D..EUR W/RR WIPER	05/1985 - 04/1987	1
82184-12030	AE8#,CE80,EE80..5D..EUR	05/1983 - 05/1985	1
82185 - WIRE, BACK DOOR, NO.2
82185-12030	AE8#,CE80,EE80..5D..EUR	05/1983 - 05/1985	1
82185-12040	AE8#,CE80,EE80..5D..EUR W/RR WIPER	05/1983 - 05/1985	1
82185-12140	AE82,CE80,EE80..5D..EUR	05/1985 - 04/1987	1
82185-12150	AE82,CE80,EE80..5D..EUR W/RR WIPER	05/1985 - 04/1987	1
82186 - WIRE, REAR WINDOW, NO.1
82186-12020	AE8#,CE80,EE80..5D	05/1983 - 05/1985	1
82186-12080	AE82,CE80,EE80..5D..(EUR,GEN)	05/1985 - 04/1987	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12020	AE8#,CE80,EE80..5D	05/1983 - 05/1985	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-16100	AE8#,CE80,EE80	05/1983 - 07/1988	1
Common parts
90119-06005

(8305- )AE8#..CS,CSX,DX,GL,S,SE,STD,XL

Click highlighted areas on diagram

Part #	Description	Period	Qty

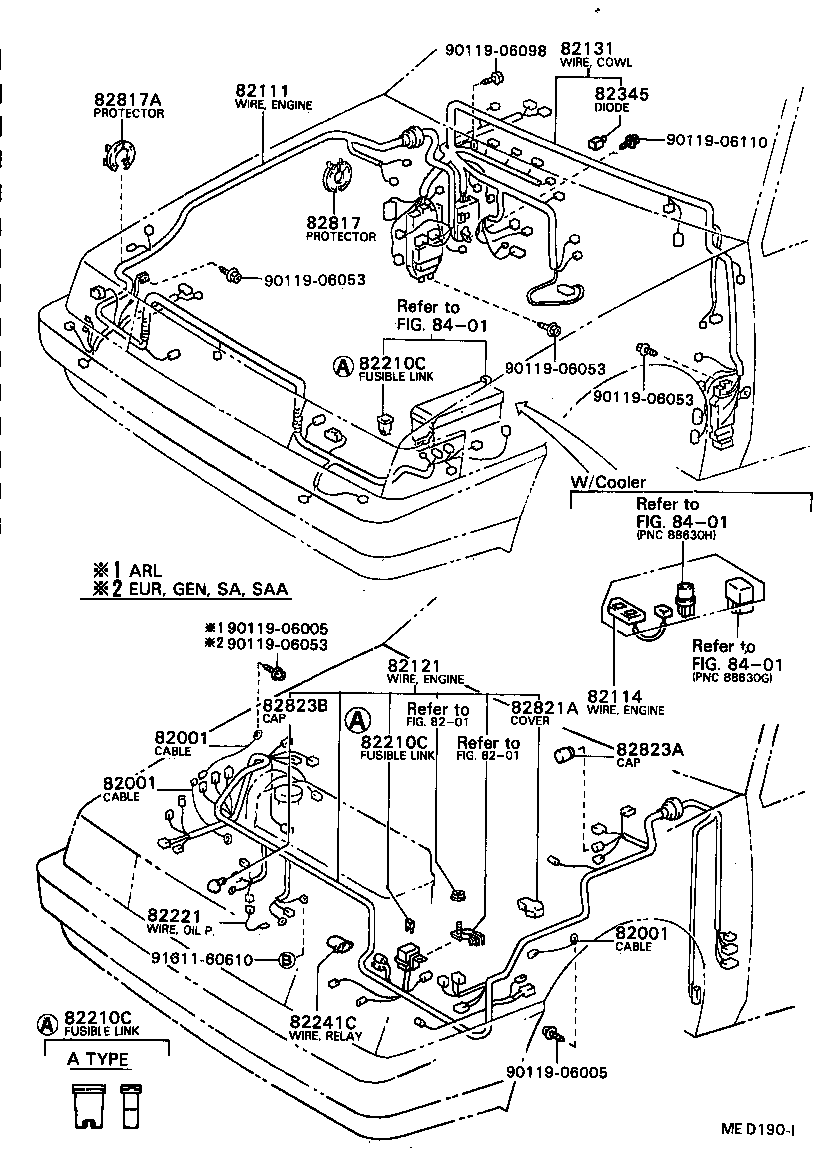

82001 - CABLE, BOND, NO.1
90980-07206	AE8#..EUR,GEN,SA,SAA L=150,FENDER,RH & LH	05/1983 - 04/1988	2
90980-07228	AE8# L=170,ENGINE-FENDER,RH	05/1983 - 05/1984	1
82001 - CABLE, BOND, NO.1
90980-07206	AE8#..EUR,GEN,SA,SAA L=150,FENDER,RH & LH	05/1983 - 04/1988	2
90980-07228	AE8# L=170,ENGINE-FENDER,RH	05/1983 - 05/1984	1
82001 - CABLE, BOND, NO.1
90980-07206	AE8#..EUR,GEN,SA,SAA L=150,FENDER,RH & LH	05/1983 - 04/1988	2
90980-07228	AE8# L=170,ENGINE-FENDER,RH	05/1983 - 05/1984	1

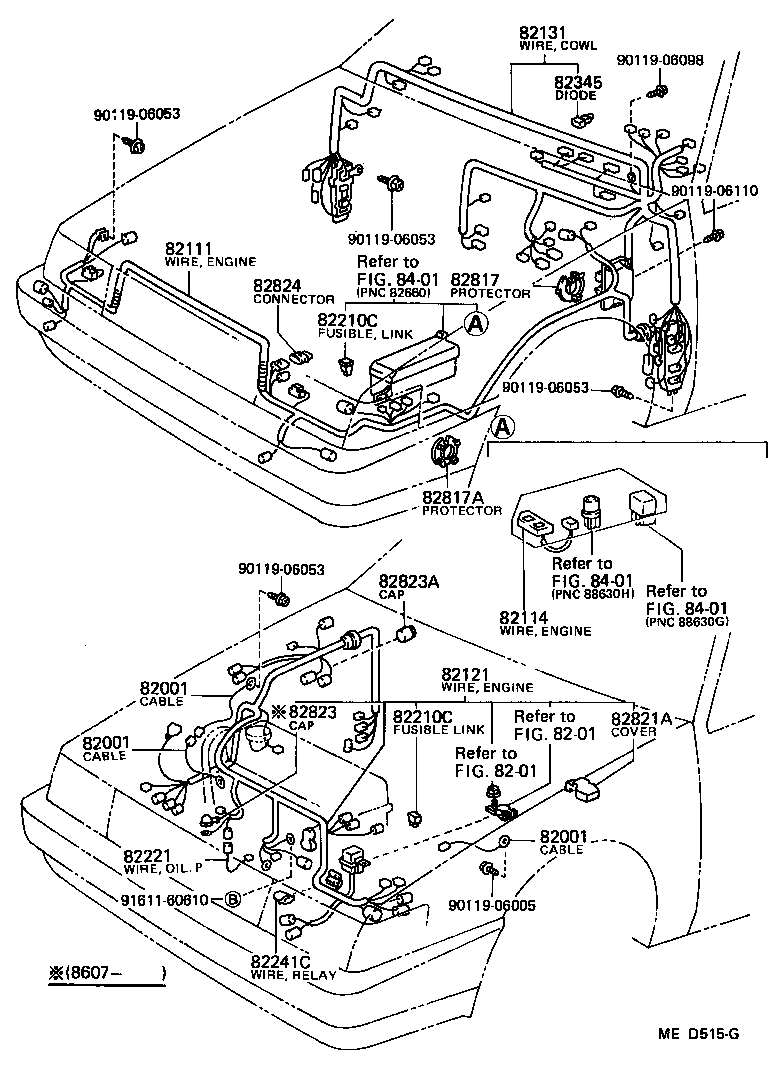

82111 - WIRE, ENGINE ROOM MAIN
82111-12291	AE8#,CE80..LHD..EUR	03/1984 - 10/1984	1
82111-12290	AE8#,CE80..LHD..EUR	05/1983 - 03/1984	1
82111-12292	AE82,CE80,EE80..LHD..EUR	10/1984 - 05/1985	1
82111-12720	AE82,CE80..(4DS,5D)..LHD..(EUG,SDZ)	05/1985 - 04/1987	1
82121 - WIRE, ENGINE
82121-12290	AE82..(DX,GL)..EUR	05/1983 - 05/1985	1
82121-12630	AE82..(DX,GL)..(EUG,SDZ)	05/1985 - 03/1987	1
82121-12630	AE82..3FC..SDZ	03/1987 - 04/1987	1
82131 - WIRE, COWL
82131-12510	AE8#..LHD..EUR	05/1983 - 10/1984	1
82131-12511	AE82,EE80..LHD..(DX,GL,STD)..EUR	10/1984 - 05/1985	1
82131-1A080	AE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ)	05/1985 - 04/1987	1
82131-1A200	AE82..SDZ SWEDEN SPEC	05/1985 - 04/1987	1
82210C - FUSIBLE LINK
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08190	AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE	05/1983 - 04/1988	1
82210C - FUSIBLE LINK
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08190	AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE	05/1983 - 04/1988	1
82210C - FUSIBLE LINK
90982-08188	AE8#,CE80,EE80 30A,TERM.:FEMALE,PNK,30A,A TYPE	05/1983 - 07/1988	3
90982-08190	AE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL 60A,TERM.:FEMALE,YEL,60A,A TYPE	05/1983 - 04/1988	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-16010	AE8#..DX,GL,STD,XL	05/1983 - 05/1985	1
82345 - DIODE
82345-12020	AE82,CE80,EE80..LHD..(DX,GL,STD)..EUR 2-POLE CONNECTOR,BROWN	05/1985 - 10/1985	1
82345-32020	AE82,CE80,EE80..LHD..(DX,GL,STD)..EUR 3-POLE CONNECTOR	10/1985 - 04/1987	1
82345-32020	AE82,CE80,EE80..LHD..(DX,GL,STD)..(EUG,SDZ) 3-POLE CONNECTOR	05/1985 - 10/1985	1
82345-12020	AE82,CE80,EE80..LHD..(DX,GL,STD)..(EUG,SDZ) 2-POLE CONNECTOR,BROWN	10/1985 - 04/1987	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14360	AE8#,CE80,EE80	05/1983 - 07/1988	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010	AE8#,CE80,EE80	05/1983 - 07/1988	1
82821A - COVER, CONNECTOR
82821-12190	AE8#,EE80	05/1983 - 07/1988	1
Common parts
90119-06005
90119-06053
90119-06098
90119-06110
91611-60610
Linked diagrams
8201
8401

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-16460
82711-1A350
82711-1A390
82711-20490
82711-22090
82819-32060

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

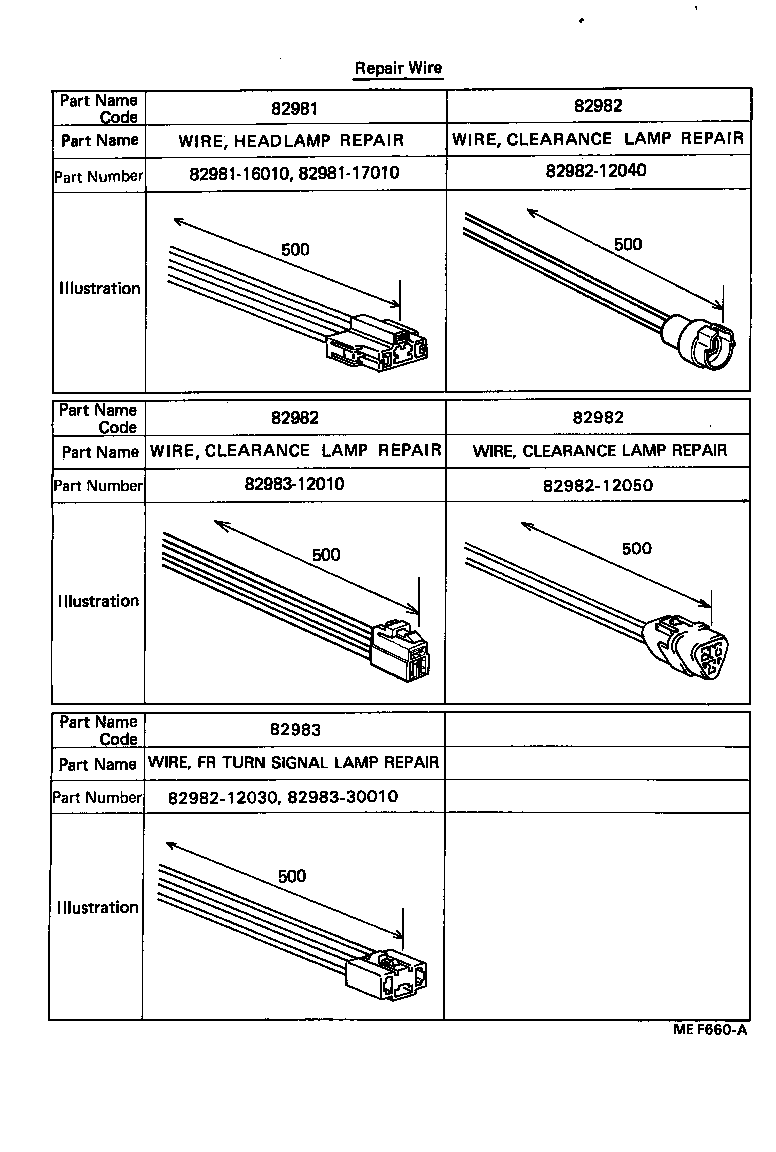

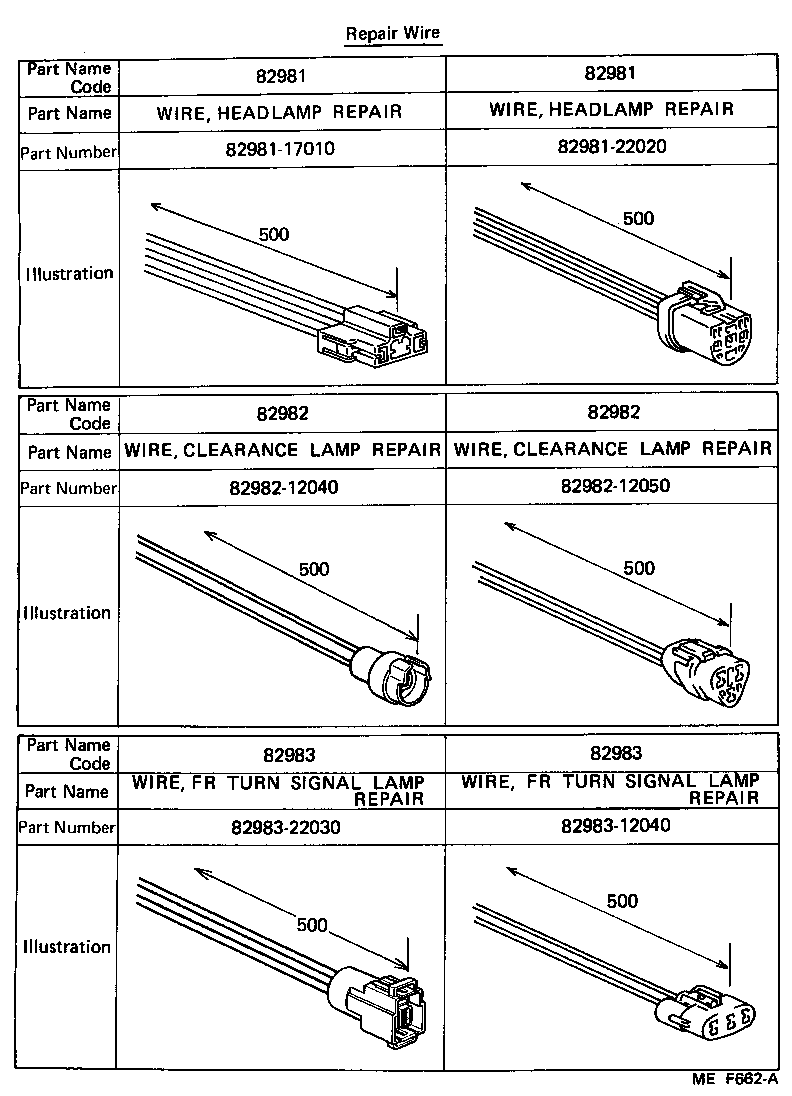

82981 - WIRE, HEADLAMP REPAIR
82981-17010	AE8#,CE80,EE80..EUR	05/1983 - 04/1987	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12040	AE8#,CE80,EE80..EUR	05/1983 - 05/1985	1
82982-12050	AE82,CE80,EE80..EUR	05/1985 - 04/1987	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12040	AE8#,CE80,EE80..EUR	05/1983 - 05/1985	1
82982-12050	AE82,CE80,EE80..EUR	05/1985 - 04/1987	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-12040	AE8#,CE80,EE80..EUR	05/1983 - 05/1985	1
82982-12050	AE82,CE80,EE80..EUR	05/1985 - 04/1987	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82982-12030	AE8#,CE80,EE80	05/1983 - 05/1985	1
Common parts
82981-16010
82981-17010
82982-12030
82982-12040
82982-12050
82983-12010
82983-30010

(8305- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

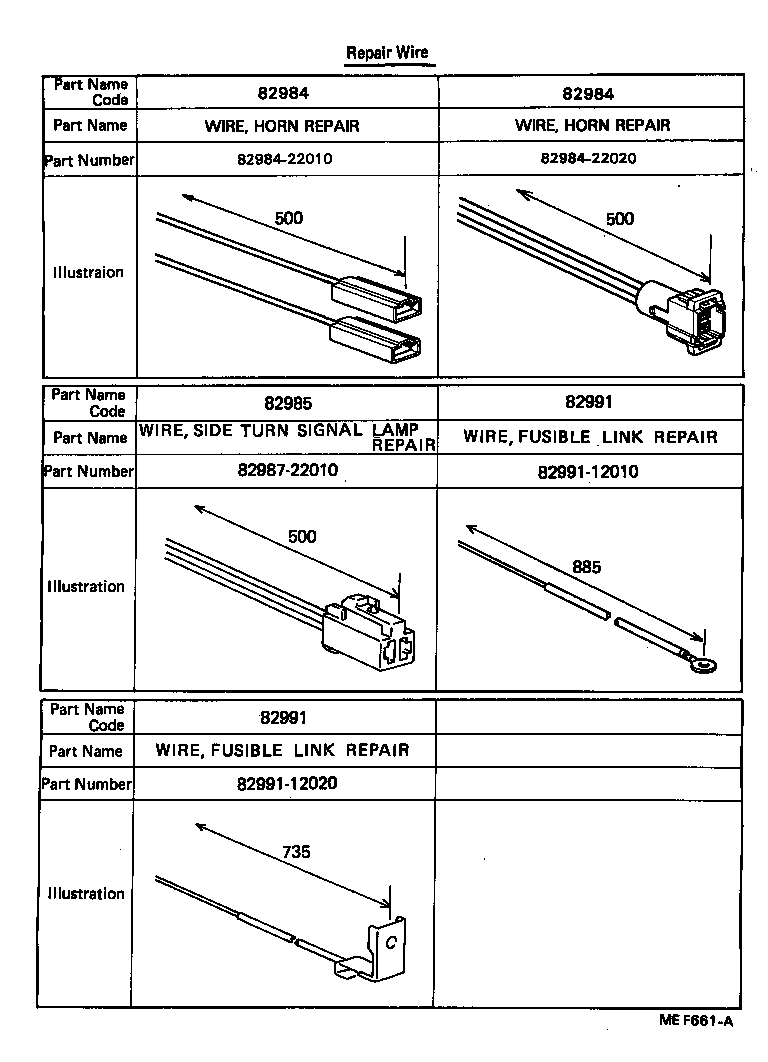

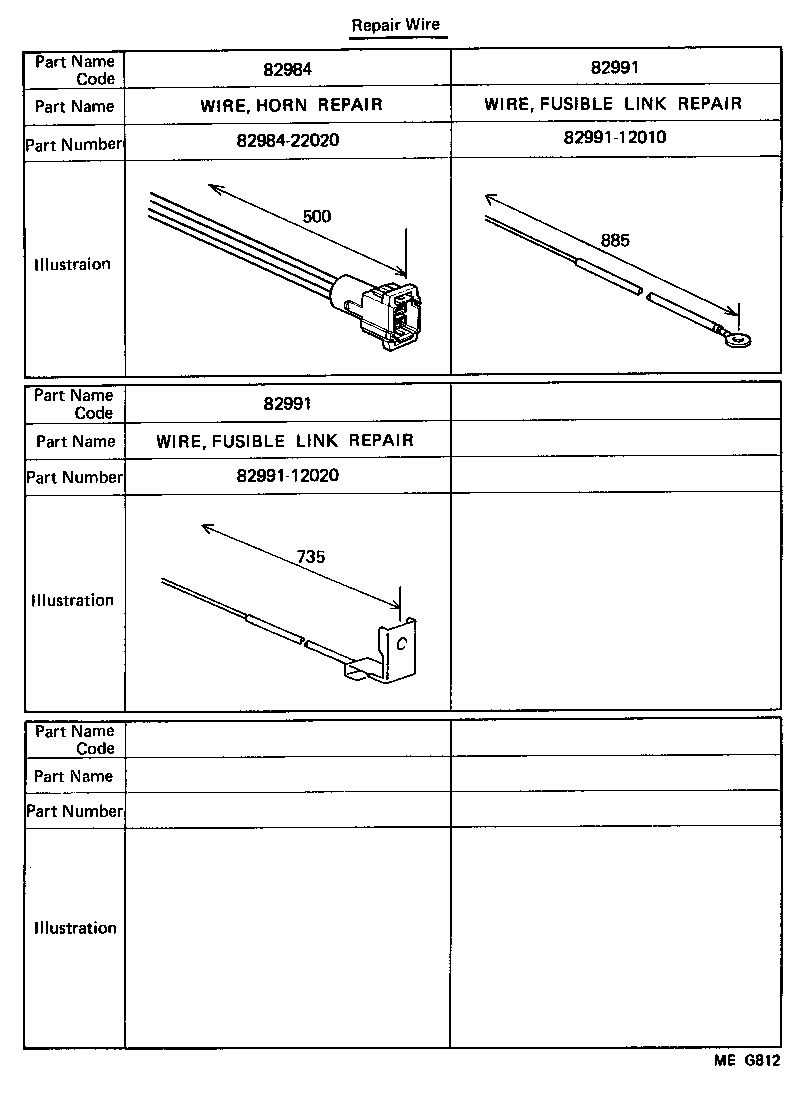

82984 - WIRE, HORN REPAIR
82984-22020	AE8#,CE80,EE80..EUR	05/1983 - 04/1987	1
82984 - WIRE, HORN REPAIR
82984-22020	AE8#,CE80,EE80..EUR	05/1983 - 04/1987	1
82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR
82987-22010	AE8#,CE80,EE80..EUR	05/1983 - 04/1987	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12020	AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL	05/1983 - 04/1987	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12020	AE8#,EE80..CS,CSX,DX,GL,S,SE,STD,XL	05/1983 - 04/1987	1
Common parts
82984-22010
82984-22020
82987-22010
82991-12010
82991-12020
