AE82L-ELHNCC (1983)

Toyota Corolla Sed/Lb

Production May 1983 - Apr 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

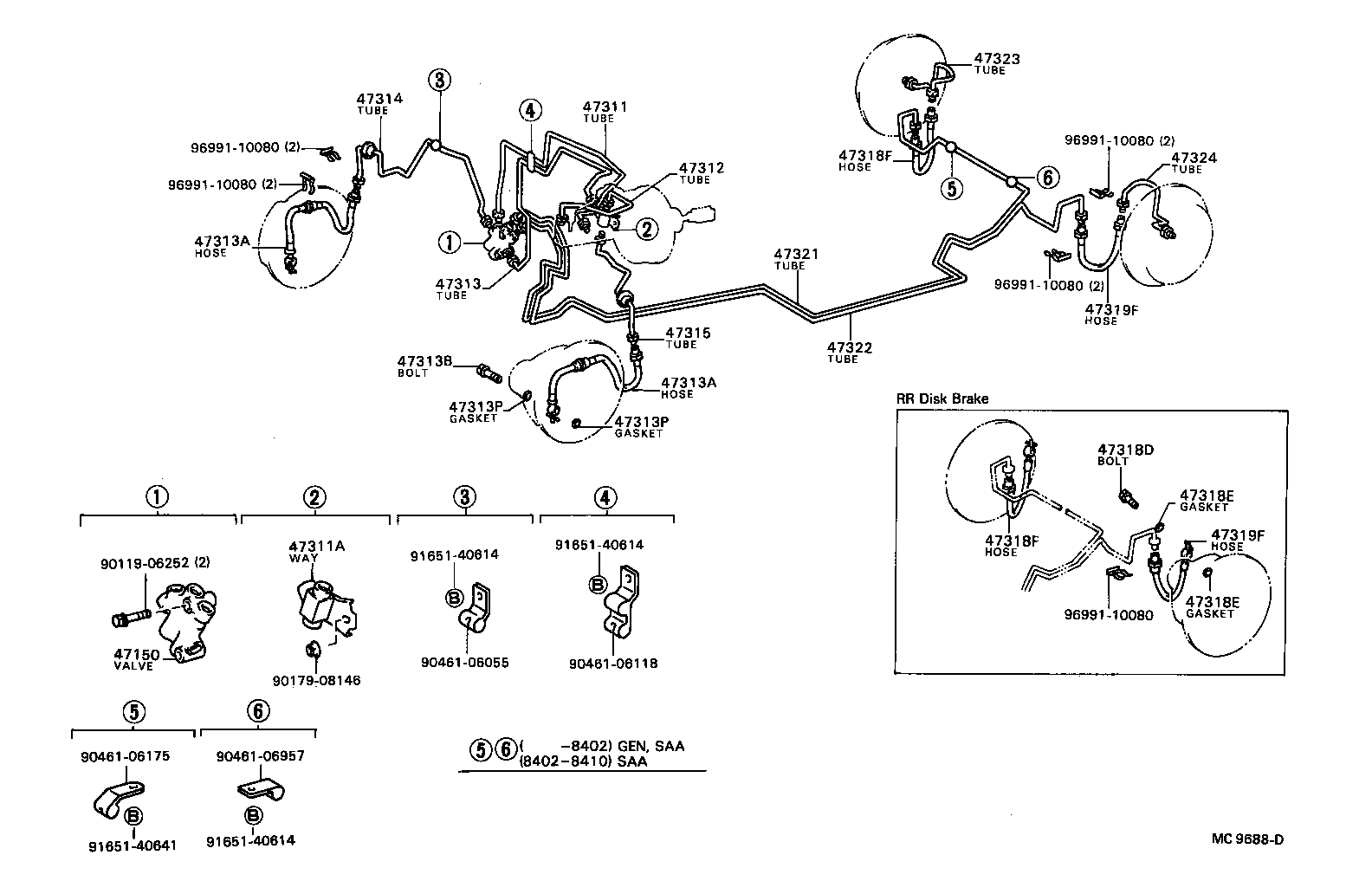

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 9011906252 9017908146 9046106055 9046106118 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
Common parts
90119-06252
90179-08146
90461-06055
90461-06118
91651-40614
96991-10080

(8305- )LHD

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 9011906252 9017908146 9046106055 9046106118 9046106175 9046106957 9165140614 9165140614 9165140614 9165140641 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12060

AE8#,CE80,EE80..(DX,GL,STD)..(EUR,SA)

 1
47150-16050

AE82,CE80,EE80..(DX,GL,STD)..EUR

 1
47150-16050

AE82,CE80,EE80..LHD..(DX,GL,STD)..EUR

COLD SPEC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12350

AE8#,CE80,EE80..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10155

AE8#,CE80,EE80..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12210

AE8#,CE80,EE80..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12160

AE8#,CE80,EE80..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02454

AE8#,CE80

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02454

AE8#,CE80

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE8#,CE80,EE80

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE8#,CE80,EE80

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE8#,CE80,EE80

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12200

AE8#,CE80,EE80..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12340

AE8#,CE80..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-33505

AE8#,CE80

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-33505

AE8#,CE80

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-33505

AE8#,CE80

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-33505

AE8#,CE80

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-12020

AE8#,CE80,EE80..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-12130

AE8#,CE80,EE80..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-12140

AE8#,CE80

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-12100

AE8#,CE80

 1
Common parts
90119-06252
90179-08146
90461-06055
90461-06118
90461-06175
90461-06957
91651-40614
91651-40641
96991-10080
