AE82L-ELHNCA (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Aug 1984
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

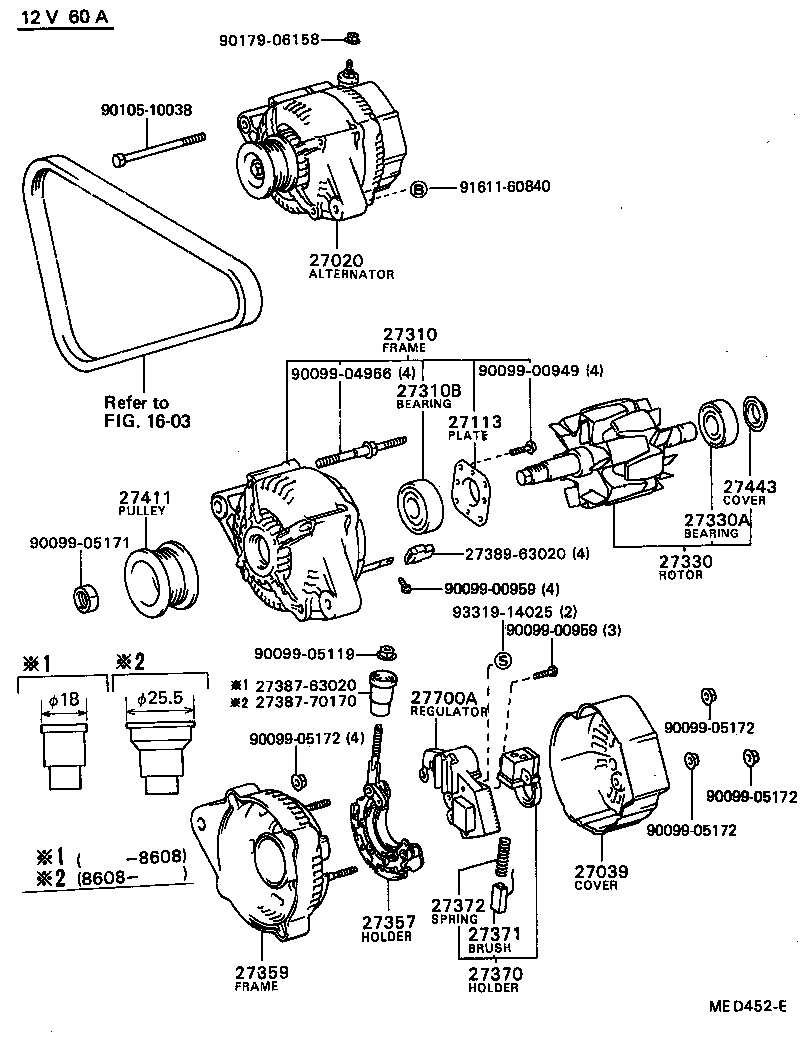

(8308- )4ALC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-63030 |
4ALC..AE82 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63040 |
4ALC..AE82 12V 60A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
4ALC..AE82 12V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-63040 |
4ALC..AE82 12V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10141 |
4ALC..AE82 12V 60A,OD=42 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63041 |
4ALC..AE82 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4ALC..AE82 12V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
4ALC..AE82 12V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63040 |
4ALC..AE82 12V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63020 |
4ALC..AE82 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4ALC..AE82 12V 60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4ALC..AE82 12V 60A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-63021 |
4ALC..AE82 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4ALC..AE82 12V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63020 |
4ALC..AE82 12V 60A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10038 | ||||
| 90179-06158 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(8305-8505)2AL,4AL..GEN,SA,SAA ; (8505-8704)4AL..MTM..GEN ; (8505- )4AL..SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10093 | ||||
| 90101-10480 | ||||
| 90170-10082 | ||||
| 90179-06158 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1603 | ||||
