AE82L-ELHDCK (1983)
Toyota Corolla Sed/Lb
Production
Aug 1983
-
Jul 1987
Engine
4ALC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

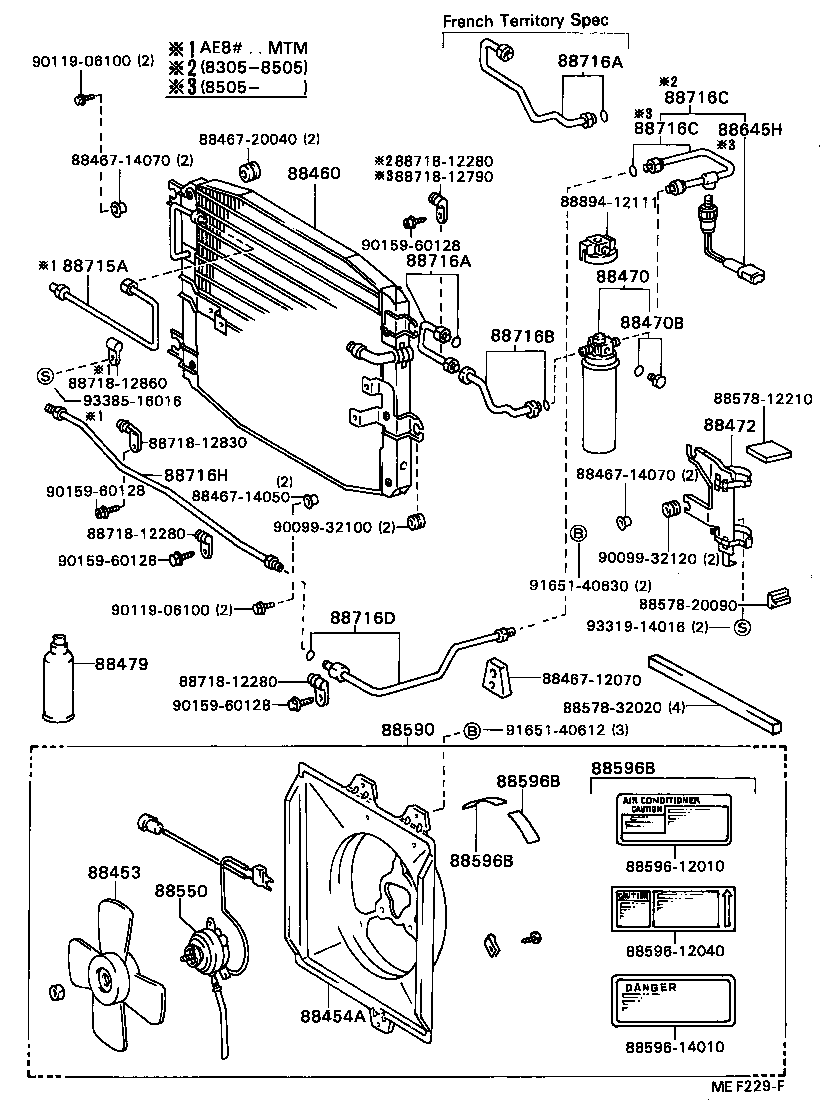

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-28010 |
AE82 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12050 |
AE82 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12250 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12061 |
AE82,CE80..DX,LE |
1 | ||
| 88470-14010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-20010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE82,CE80..DX,LE,LEL 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12080 |
AE82,CE80..DX,LE |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12040 |
AE82 |
1 | ||
| 88590-12040 |
AE82..CND |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
AE82,CE80 AIR CONDITIONER CAUTION |
1 | ||
| 88596-14010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
AE82,CE80 AIR CONDITIONER CAUTION |
1 | ||
| 88596-14010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
AE82,CE80 AIR CONDITIONER CAUTION |
1 | ||
| 88596-14010 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12860 |
AE82,CE80..DX,LE |
1 | ||
| 88716-12750 |
AE82..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12860 |
AE82,CE80..DX,LE |
1 | ||
| 88716-12750 |
AE82..CND |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-12870 |
AE82,CE80..DX,LE |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-12810 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-12810 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-12830 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-12820 |
AE82,CE80..DX,LE,LEL |
1 | ||
| Common parts | ||||
| 55874-30030 | ||||
| 88467-12070 | ||||
| 88467-14050 | ||||
| 88467-14070 | ||||
| 88467-20040 | ||||
| 88578-20090 | ||||
| 88578-32020 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-12830 | ||||
| 88894-12111 | ||||
| 90099-32100 | ||||
| 90099-32120 | ||||
| 90119-06100 | ||||
| 90159-60128 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 93319-14016 | ||||
(8308- )

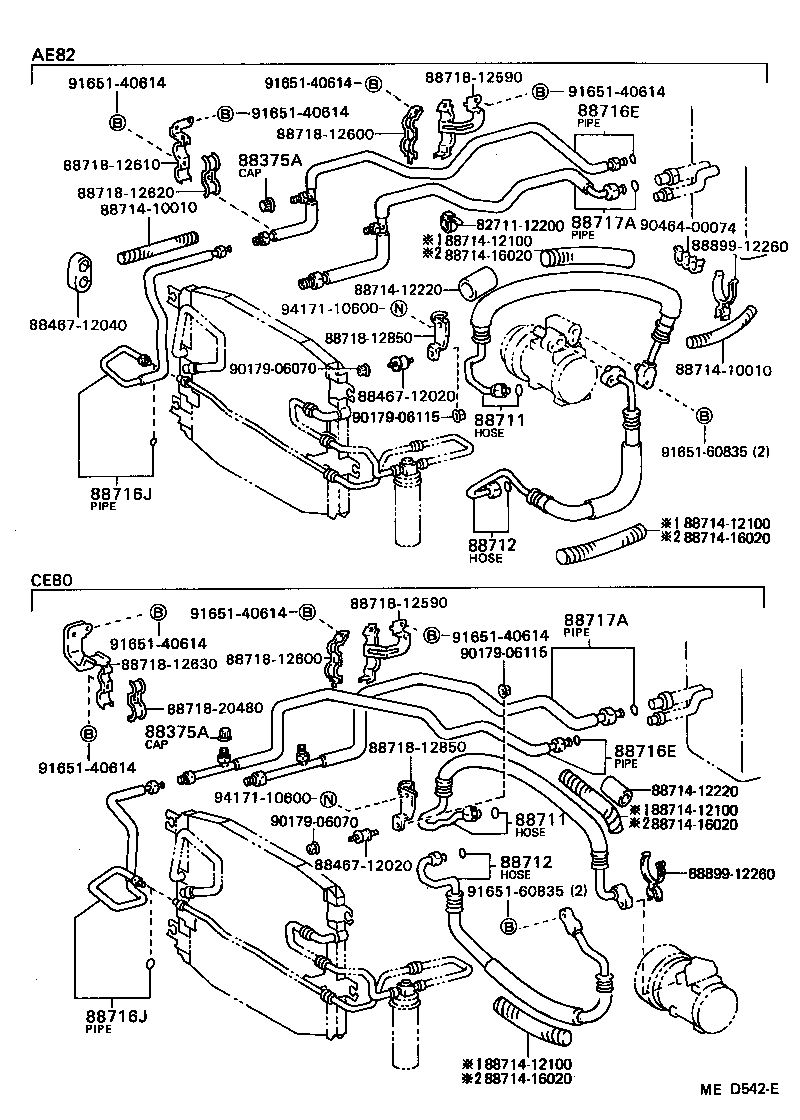

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
AE82 |
1 | ||
| 88375-30270 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
AE82 |
1 | ||
| 88375-30270 |
AE82,CE80..DX,LE,LEL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12260 |
AE82 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12260 |
AE82 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12410 |
AE82 |
1 | ||
| 88712-12500 |
AE82 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12410 |
AE82 |
1 | ||
| 88712-12500 |
AE82 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12661 |
AE82 |
1 | ||
| 88716-12660 |
AE82 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12661 |
AE82 |
1 | ||
| 88716-12660 |
AE82 |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-12670 |
AE82 |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-12670 |
AE82 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12180 |
AE82 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12180 |
AE82 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-12020 | ||||
| 88467-12040 | ||||
| 88714-10010 | ||||
| 88714-12100 | ||||
| 88714-12220 | ||||
| 88714-16020 | ||||
| 88718-12590 | ||||
| 88718-12600 | ||||
| 88718-12610 | ||||
| 88718-12620 | ||||
| 88718-12630 | ||||
| 88718-12850 | ||||
| 88718-20480 | ||||
| 88899-12260 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90464-00074 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 94171-10600 | ||||
(8305-8707)AE8#,CE80..LHD..DX,GL,STD,XL

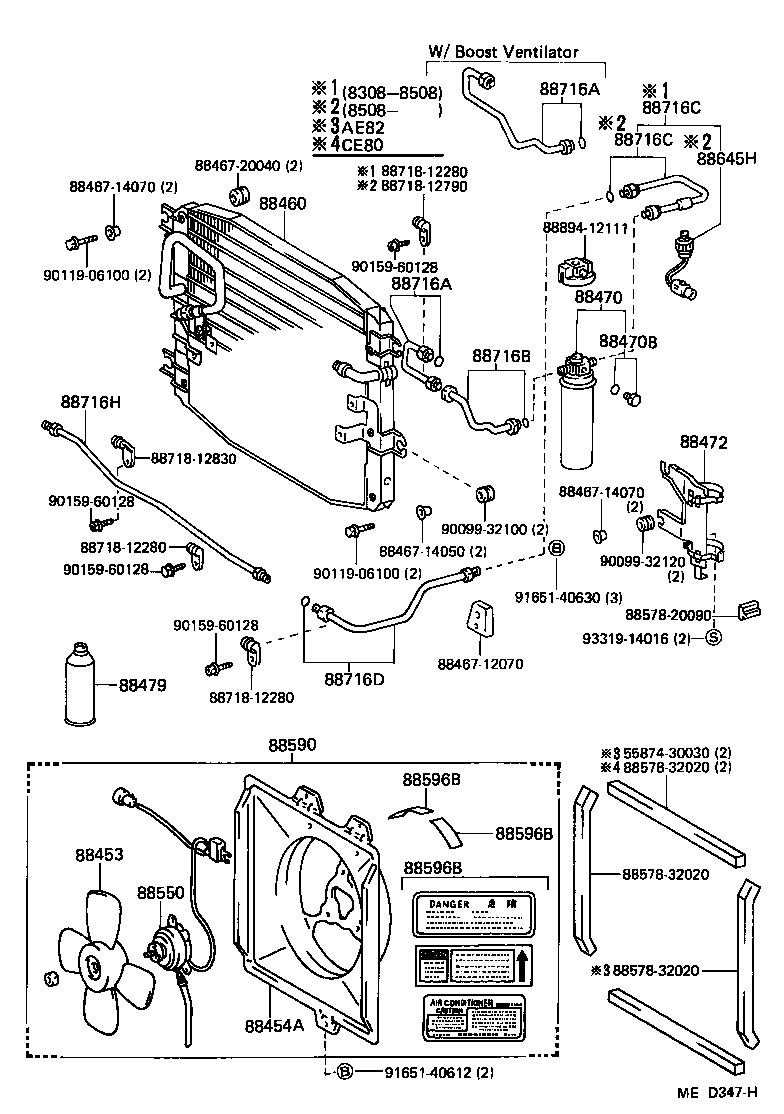

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 88467-12020 | ||||
| 88467-12040 | ||||
| 88714-10010 | ||||
| 88714-12100 | ||||
| 88714-12220 | ||||
| 88714-16020 | ||||
| 88718-12590 | ||||
| 88718-12600 | ||||
| 88718-12610 | ||||
| 88718-12620 | ||||
| 88718-12630 | ||||
| 88718-12850 | ||||
| 88718-20480 | ||||
| 88896-12150 | ||||
| 88899-12260 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90464-00074 | ||||
| 91651-40614 | ||||
| 91651-60835 | ||||
| 94171-10600 | ||||
(8305-8707)AE8#,CE80..LHD..DX,GL,STD,XL

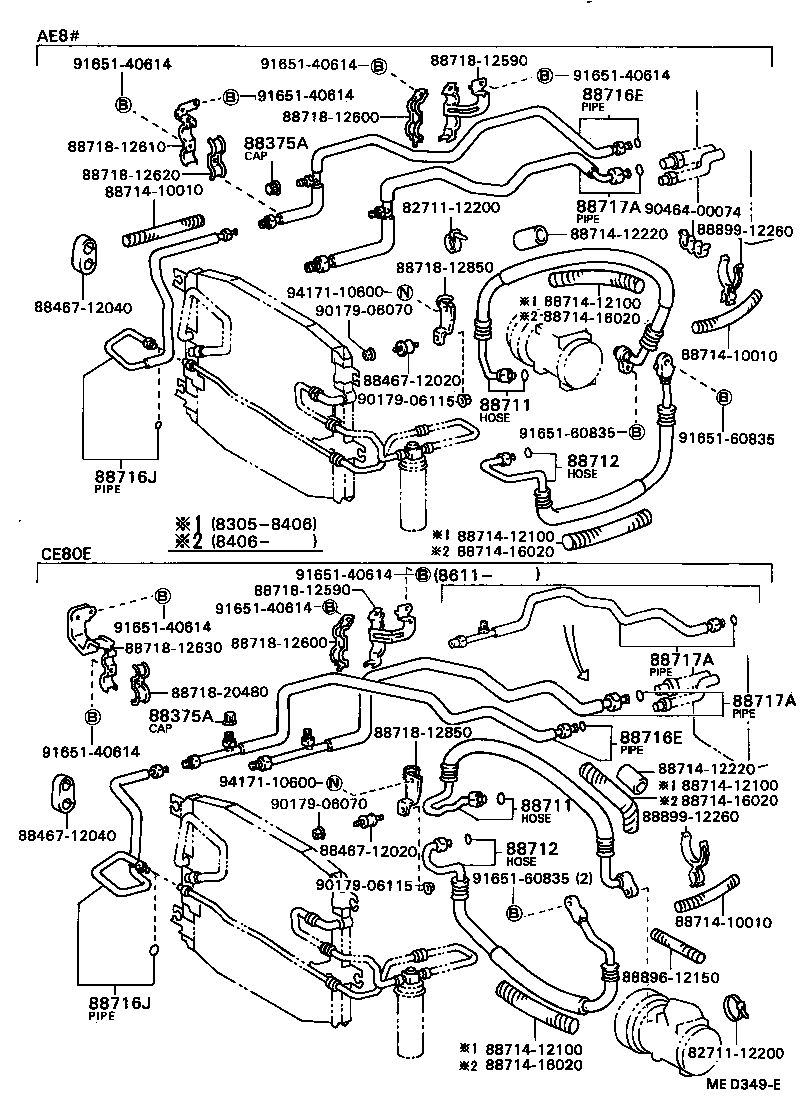

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-12070 | ||||
| 88467-14050 | ||||
| 88467-14070 | ||||
| 88467-20040 | ||||
| 88578-12210 | ||||
| 88578-20090 | ||||
| 88578-32020 | ||||
| 88596-12010 | ||||
| 88596-12040 | ||||
| 88596-14010 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-12830 | ||||
| 88718-12860 | ||||
| 88894-12111 | ||||
| 90099-32100 | ||||
| 90099-32120 | ||||
| 90119-06100 | ||||
| 90159-60128 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 93319-14016 | ||||
| 93385-16016 | ||||
