AE82L-ELHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )AE82..3FC

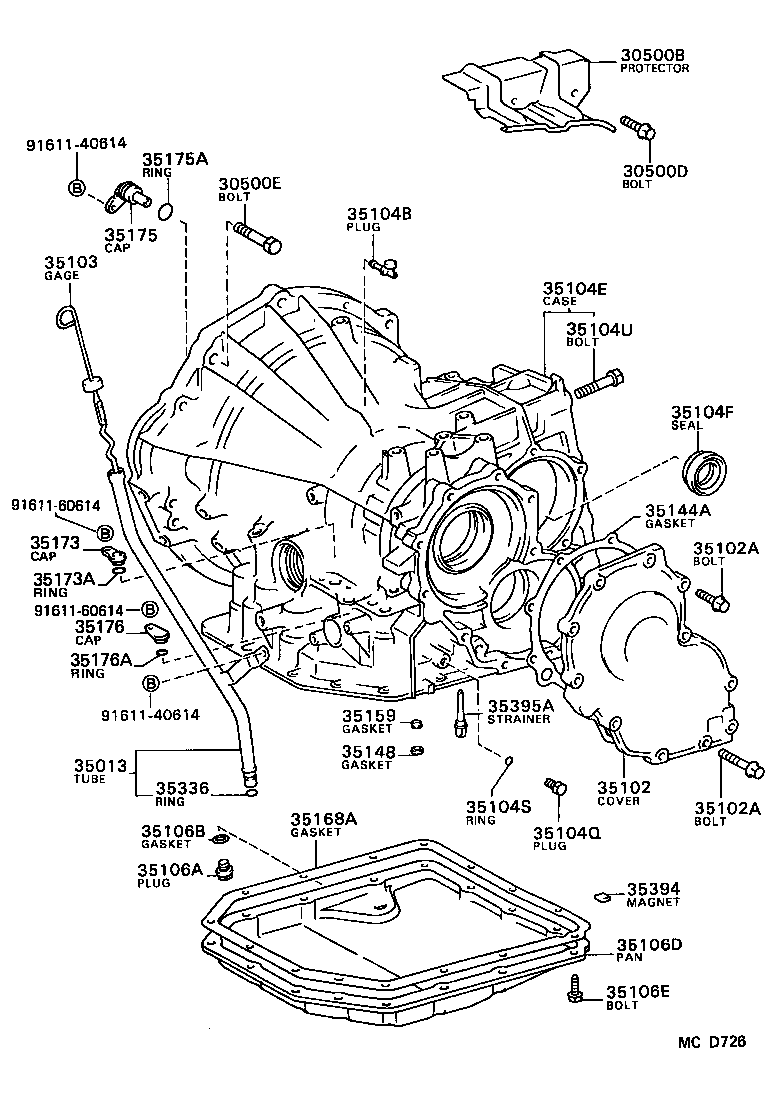

Click highlighted areas on diagram

diagram 30500B 30500D 30500E 35013 35102 35102A 35102A 35103 35104B 35104E 35104F 35104Q 35104S 35104U 35106A 35106B 35106D 35106E 35144A 35148 35159 35168A 35173 35173A 35175 35175A 35176 35176A 35336 35394 35395A 9161140614 9161140614 9161160614 9161160614
Part # Description Qty Price
30500B - PROTECTOR, TRANSAXLE CASE
33117-10011

AE82..3FC

 1
33117-10010

AE82..3FC

 1
33117-12020

AE82..3FC

 1
30500D - BOLT(FOR TRANSAXLE CASE PROTECTOR)
90105-08040

AE82,CE80..ATM

 2
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91619-61255

AE82..ATM

*12-1.25PX55-30,*12-1.25PX55-30

 1
91619-61245

AE82,CE80..ATM

*12-1.25PX45-30,*12-1.25PX43-30

 3
91611-60820

AE82..ATM

*8-1.25PX20-20,*8-1.25PX20-20

 1
90105-10077

AE82,CE80..ATM

*10-1.25PX43-26,*10-1.25PX43-26

 1
91611-61025

AE82..ATM

*10-1.25PX25-25,*10-1.25PX25-19.8

 1
90119-12168

AE82..ATM

*12-1.25PX55-30,*12-1.25PX55-30

 1
91611-61020

AE82..ATM

*10-1.25PX20-20,*10-1.25PX20-20

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12141

AE82..3FC

 1
35013-12140

AE82..3FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20020

AE82,CE80..3FC

 1
35102-12020

AE82..3FC

 1
35102-20020

AE82..3FC..CND

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE82,CE80..3FC

*8-1.25PX28-28,*8-1.25PX28-28

 9
90105-08056

AE82,CE80..3FC

*8-1.25PX40-40,*8-1.25PX38-38

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE82,CE80..3FC

*8-1.25PX28-28,*8-1.25PX28-28

 9
90105-08056

AE82,CE80..3FC

*8-1.25PX40-40,*8-1.25PX38-38

 2
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-12060

AE82..3FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089

AE82,CE80..3FC

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-12060

AE82..3FC

 1
35104-12101

AE82..3FC..CND

TOYOTA

 1
35104-12200

AE82..3FC..CND

TOYOTA

 1
35104-12062

AE82..3FC

AISIN WARNER

 1
35104-12061

AE82..3FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34005

AE82..3FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AE82,CE80..ATM

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

AE82,CE80..ATM

 3
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10008

AE82..3FC

*10-1.25PX53-26

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

AE82,CE80..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

AE82,CE80..3FC

 1
90430-18007

AE82,CE80..3FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-10021

AE82..3FC

 1
35106-32020

AE82,CE80..3FC

 1
35106-10020

AE82,CE80..3FC

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

AE82,CE80..ATM

 18
35144A - GASKET, TRANSAXLE REAR COVER
34112-32010

AE82,CE80..3FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AE82,CE80..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-32011

AE82..3FC

 1
35159-32010

AE82,CE80..ATM

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010

AE82,CE80..3FC

 1
35173 - CAP, TRANSAXLE CASE NO.1
35173-20010

AE82..3FC..CND

 1
35173A - RING, O (FOR TRANSAXLE CASE CAP NO.1)
96721-19017

AE82..3FC..CND

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

AE82,CE80..3FC

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002

AE82,CE80..3FC

 1
35176 - CAP, WIRE HARNESS
35176-32010

AE82..3FC..CND

 1
35176A - RING, O (FOR WIRE HARNESS CAP)
96721-24013

AE82..3FC..CND

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AE82,CE80..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AE82,CE80..ATM

 3
35395A - STRAINER, GOVERNOR OIL
35395-32010

AE82,CE80..3FC

 1
35395-32011

AE82..3FC

 1
Common parts
