AE82L-ELHDCK (1983)

Toyota Corolla Sed/Lb

Production Aug 1983 - Jul 1987
Engine 4ALC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4ALC

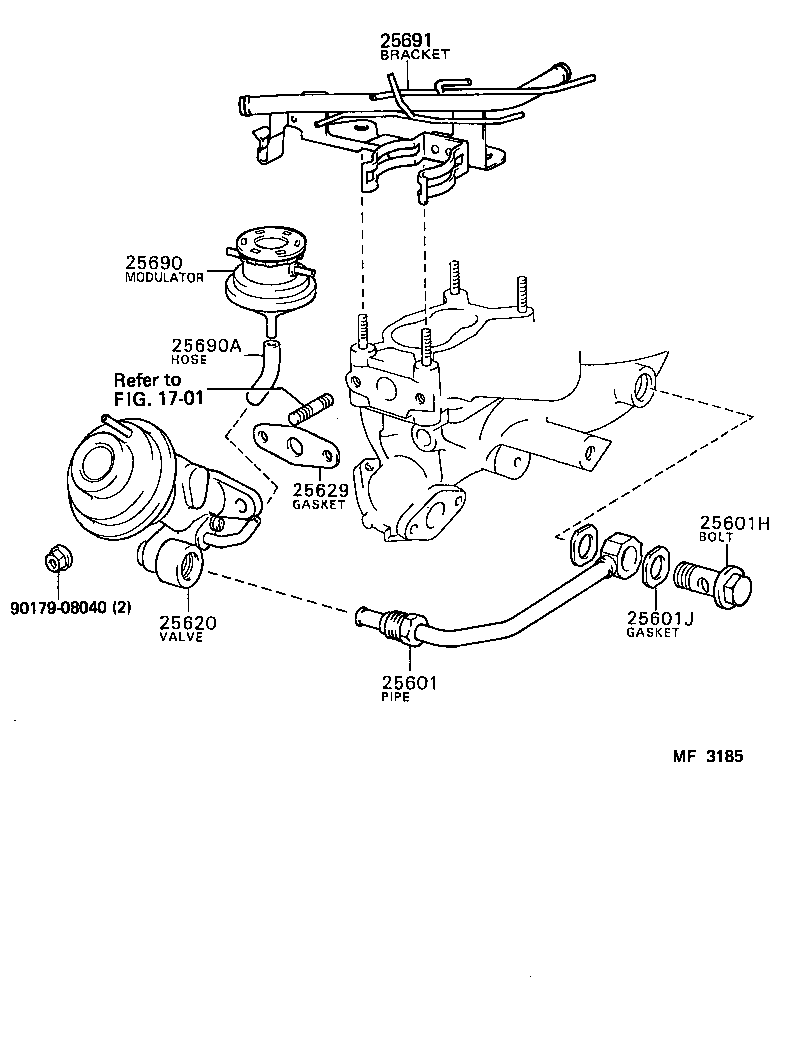

Click highlighted areas on diagram

diagram 1701 25601 25601H 25601J 25620 25629 25690 25690A 25691 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15030

4ALC..AE82

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

4ALC..AE82

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

4ALC..AE82

 2
25620 - VALVE ASSY, EGR
25620-15260

4ALC..AE82..3FC

 1
25620-15250

4ALC..AE82..CND;4ALC..AE82..5F..USA

 1
25620-15250

4ALC..AE82

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

4ALC..AE82

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15110

4ALC..AE82..3FC

 1
25870-15130

4ALC..AE82..CND

 1
25870-15130

4ALC..AE82..ATM..CND

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11041

4ALC..AE82

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-16111

4ALC..AE82

 1
25691-16010

4ALC..AE82

 1
Common parts
90179-08040
Linked diagrams
1701
