AE82L-ELHDCK (1983)
Toyota Corolla Sed/Lb

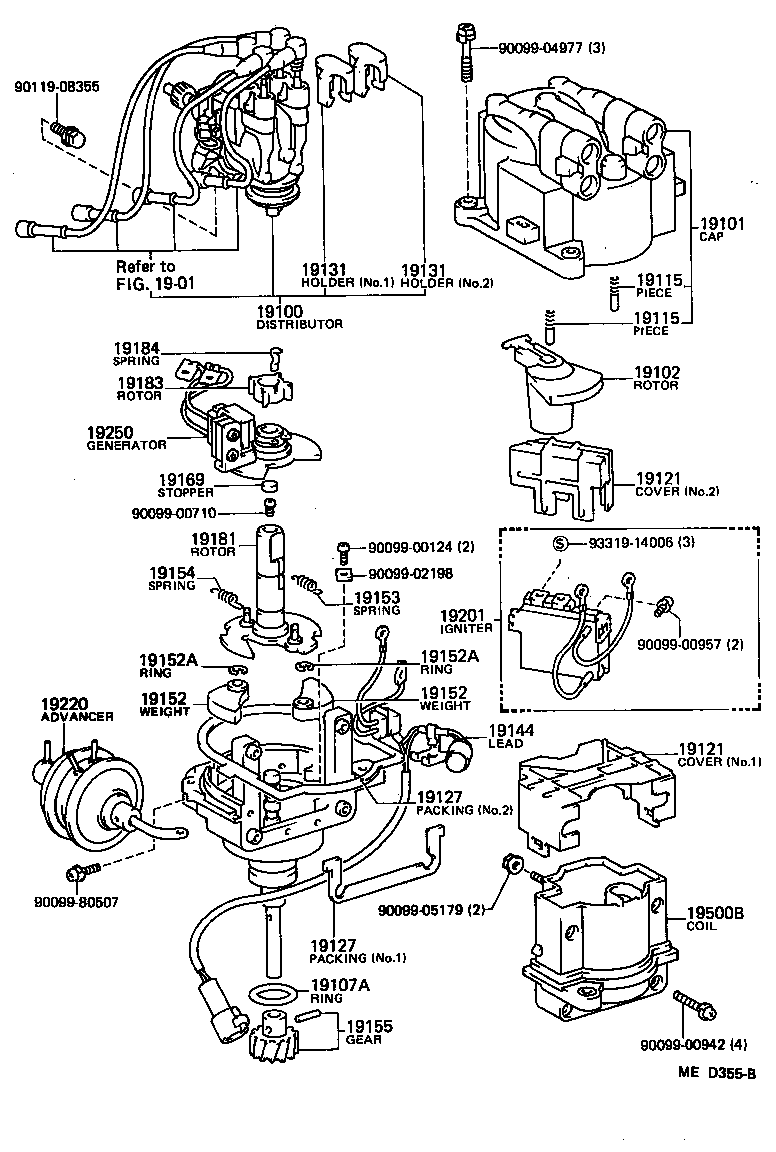

(8308-8508)4ALC ; (8508- )4ALC..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-16060 |
4ALC..AE82..CND |
1 | ||
| 19030-16090 |
4ALC..AE82..CND |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15090 |
4ALC..AE82 |
1 | ||
| 19101-16070 |
4ALC..AE82..CND |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-63010 |
4ALC..AE82 |
1 | ||
| 19102-73020 |
4ALC..AE82 |
1 | ||
| 19102-11050 |
4ALC..AE82..CND |
1 | ||
| 19102-16020 |
4ALC..AE82 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96710-04030 |
4ALC..AE82 |
1 | ||
| 96711-35030 |
4ALC..AE82 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
4ALC..AE82..CND |
1 | ||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121-11080 |
4ALC..AE82..CND |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
4ALC..AE82..CND |
1 | ||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121-11080 |
4ALC..AE82..CND |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
4ALC..AE82..CND |
1 | ||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
4ALC..AE82..CND |
1 | ||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16011 |
4ALC..AE82 |
1 | ||
| 19144-16080 |
4ALC..AE82..CND |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-16200 |
4ALC..AE82..CND |
1 | ||
| 19153-16120 |
4ALC..AE82..CND |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-16120 |
4ALC..AE82..CND |
1 | ||
| 19154-16200 |
4ALC..AE82..CND |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
4ALC..AE82 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
4ALC..AE82 |
1 | ||
| 19169-32010 |
4ALC..AE82 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-16120 |
4ALC..AE82..CND |
1 | ||
| 19181-16180 |
4ALC..AE82..CND |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
4ALC..AE82..CND |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
4ALC..AE82 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16070 |
4ALC..AE82..CND |
1 | ||
| 89620-10090 |
4ALC..AE82..CND |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-16120 |
4ALC..AE82..CND |
1 | ||
| 19220-16210 |
4ALC..AE82..CND |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
4ALC..AE82 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
4ALC..AE82..CND |
1 | ||
| 90919-02139 |
4ALC..AE82..CND |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-02198 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||

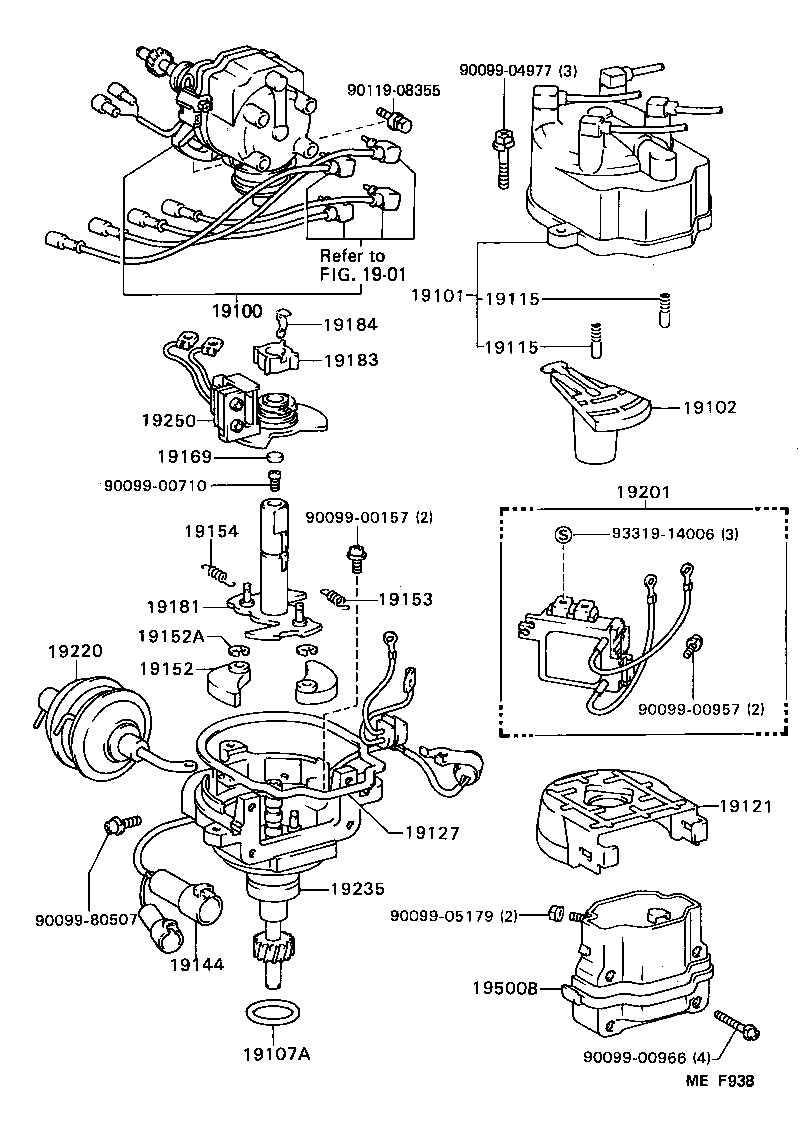

(8508- )4ALC..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-16060 |
4ALC..AE82..CND |
1 | ||
| 19030-16090 |
4ALC..AE82..CND |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15090 |
4ALC..AE82 |
1 | ||
| 19101-16070 |
4ALC..AE82..CND |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-63010 |
4ALC..AE82 |
1 | ||
| 19102-73020 |
4ALC..AE82 |
1 | ||
| 19102-11050 |
4ALC..AE82..CND |
1 | ||
| 19102-16020 |
4ALC..AE82 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96710-04030 |
4ALC..AE82 |
1 | ||
| 96711-35030 |
4ALC..AE82 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
4ALC..AE82..CND |
1 | ||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121-11080 |
4ALC..AE82..CND |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
4ALC..AE82..CND |
1 | ||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16011 |
4ALC..AE82 |
1 | ||
| 19144-16080 |
4ALC..AE82..CND |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-16200 |
4ALC..AE82..CND |
1 | ||
| 19153-16120 |
4ALC..AE82..CND |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-16120 |
4ALC..AE82..CND |
1 | ||
| 19154-16200 |
4ALC..AE82..CND |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
4ALC..AE82 |
1 | ||
| 19169-32010 |
4ALC..AE82 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-16120 |
4ALC..AE82..CND |
1 | ||
| 19181-16180 |
4ALC..AE82..CND |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
4ALC..AE82..CND |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
4ALC..AE82 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16070 |
4ALC..AE82..CND |
1 | ||
| 89620-10090 |
4ALC..AE82..CND |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-16120 |
4ALC..AE82..CND |
1 | ||
| 19220-16210 |
4ALC..AE82..CND |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-14040 |
4ALC..AE82..CND |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
4ALC..AE82 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
4ALC..AE82..CND |
1 | ||
| 90919-02139 |
4ALC..AE82..CND |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||

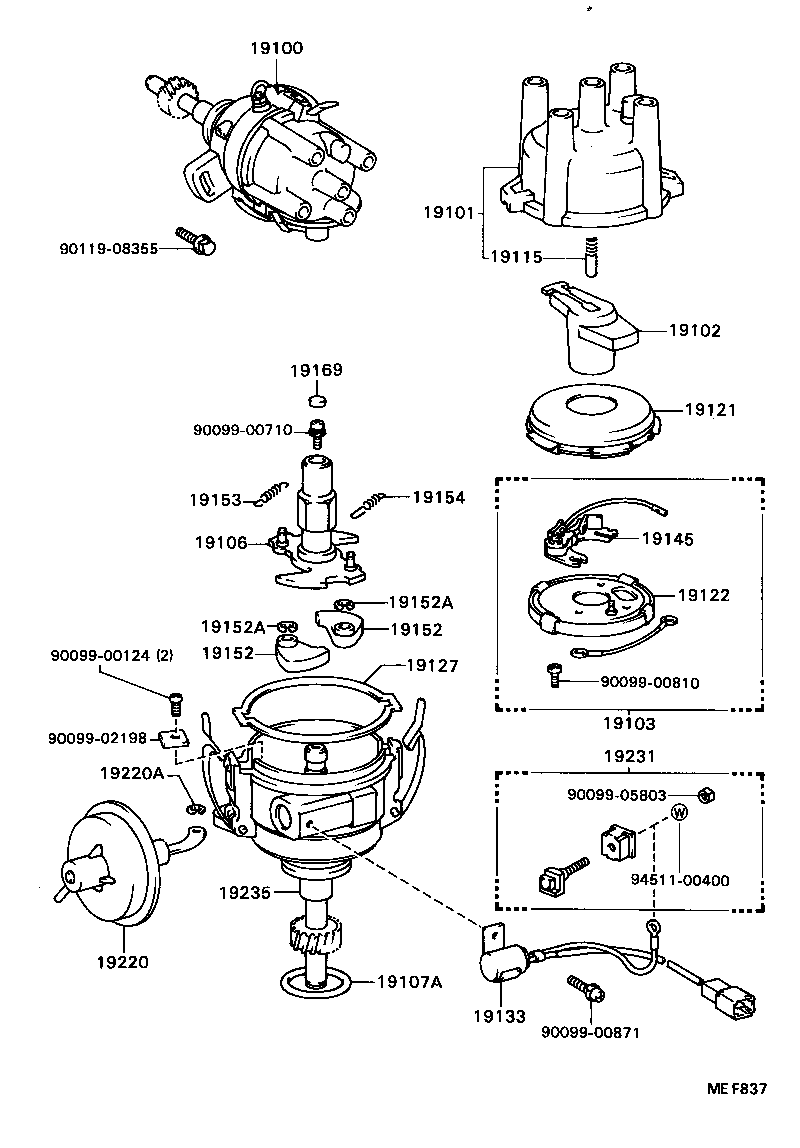

(8504-8505)4ALC ; (8505- )4ALC..FRG
(8504-8505)FRG SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-16060 |
4ALC..AE82..CND |
1 | ||
| 19030-16090 |
4ALC..AE82..CND |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15090 |
4ALC..AE82 |
1 | ||
| 19101-16070 |
4ALC..AE82..CND |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-63010 |
4ALC..AE82 |
1 | ||
| 19102-73020 |
4ALC..AE82 |
1 | ||
| 19102-11050 |
4ALC..AE82..CND |
1 | ||
| 19102-16020 |
4ALC..AE82 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96710-04030 |
4ALC..AE82 |
1 | ||
| 96711-35030 |
4ALC..AE82 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82 |
2 | ||
| 19115-63010 |
4ALC..AE82..CND |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
4ALC..AE82..CND |
1 | ||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121-11080 |
4ALC..AE82..CND |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11010 |
4ALC..AE82..CND |
1 | ||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121-11080 |
4ALC..AE82..CND |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
4ALC..AE82..CND |
1 | ||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
4ALC..AE82..CND |
1 | ||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16011 |
4ALC..AE82 |
1 | ||
| 19144-16080 |
4ALC..AE82..CND |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-16200 |
4ALC..AE82..CND |
1 | ||
| 19153-16120 |
4ALC..AE82..CND |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-16120 |
4ALC..AE82..CND |
1 | ||
| 19154-16200 |
4ALC..AE82..CND |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
4ALC..AE82 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
4ALC..AE82 |
1 | ||
| 19169-32010 |
4ALC..AE82 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-16120 |
4ALC..AE82..CND |
1 | ||
| 19181-16180 |
4ALC..AE82..CND |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
4ALC..AE82..CND |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
4ALC..AE82 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16070 |
4ALC..AE82..CND |
1 | ||
| 89620-10090 |
4ALC..AE82..CND |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-16120 |
4ALC..AE82..CND |
1 | ||
| 19220-16210 |
4ALC..AE82..CND |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
4ALC..AE82 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
4ALC..AE82..CND |
1 | ||
| 90919-02139 |
4ALC..AE82..CND |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-02198 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
(8505-8605)4AL
SINGAPORE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90119-08355 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
